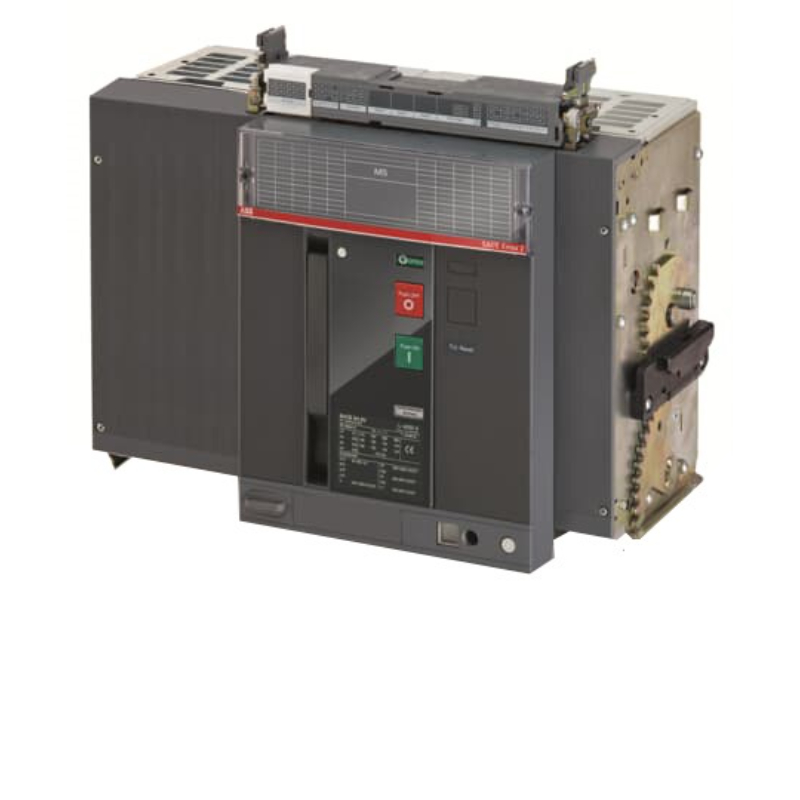

ABB E42N4NA32W ACB E4.2N 4P 66KA WITHDRAWABLE 1600A NON AUTO

Product Code: E42N4NA32W

The ACB E4.2N is a 3200A, 4P circuit breaker with a rating of 66kA. It features a withdrawable design and does not have automatic functionality. The terminal is HR-HR and it comes complete with WMP+FP.

Technical Specifications

Brand ABB
AC Voltage (V) 690
Breaking Capacity (kA) 66 @415V AC
Breaking Capacity 415V AC - Icu (kA) 66
Component Type Withdrawable
Current Rating (A) 3200
Frame E4.2
Icw (kA/1s) - Short-time Withstand Current Rating 66
Iu - Uninterrupted Current Rating (A) 3200
No. of Poles 4P
Poles 4P
Power Loss (W) 743
Rated Current (A) 3200
Rated Impulse Withstand Voltage (kV) 12
Rated Insulation Voltage AC (V) 1000
Rated Operational Voltage AC (V) 690
Rated Short-time Withstand Current - Icw (kA/1s) 66
Rated Uninterrupted Current - Iu (A) 3200
Size of Frame E4.2
Standards and Approvals IEC
Terminal Type HR-HR
Version Withdrawable
