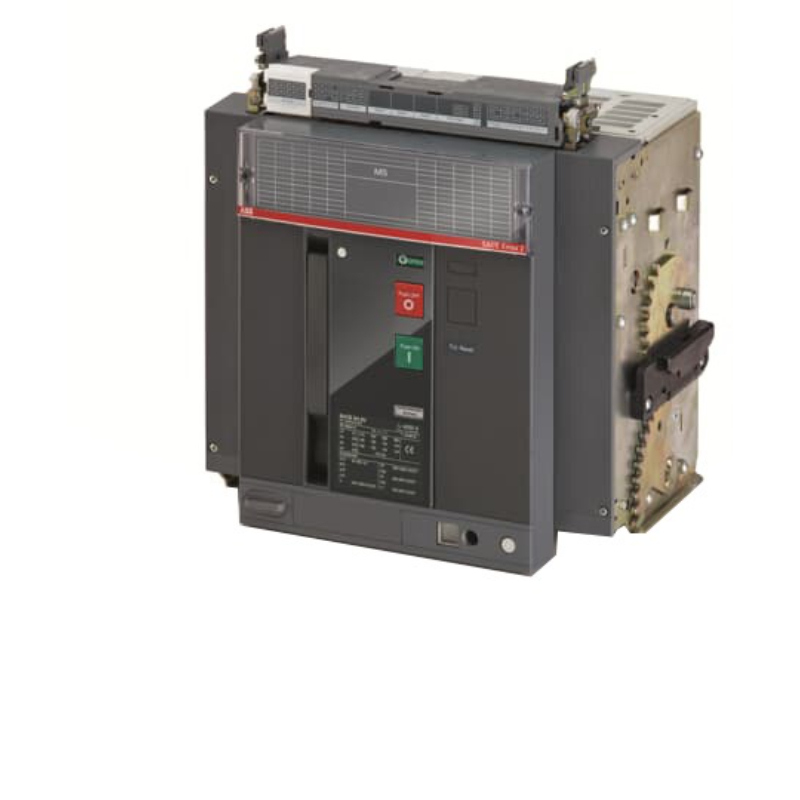

ABB E42H3NA40W ACB E4.2H 3P 100KA WITHDRAWABLE 4000A NON AUTO

Product Code: E42H3NA40W

The ACB E4.2H is a 4000A, 3P circuit breaker with a rating of 100kA. It features a withdrawable non auto HR-HR terminal and comes complete with WMP+FP.

Technical Specifications

Brand ABB
AC Voltage (V) 690
Breaking Capacity (kA) 100 @415V AC
Breaking Capacity 415V AC - Icu (kA) 100
Component Type Withdrawable
Current Rating (A) 4000
Frame E4.2
Icw (kA/1s) - Short-time Withstand Current Rating 85
Iu - Uninterrupted Current Rating (A) 4000
No. of Poles 3P
Poles 3P
Power Loss (W) 900
Rated Current (A) 4000
Rated Impulse Withstand Voltage (kV) 12
Rated Insulation Voltage AC (V) 1000
Rated Operational Voltage AC (V) 690
Rated Short-time Withstand Current - Icw (kA/1s) 85
Rated Uninterrupted Current - Iu (A) 4000
Size of Frame E4.2
Standards and Approvals IEC
Terminal Type HR-HR
Version Withdrawable
