Product Code: E42H4NA32W

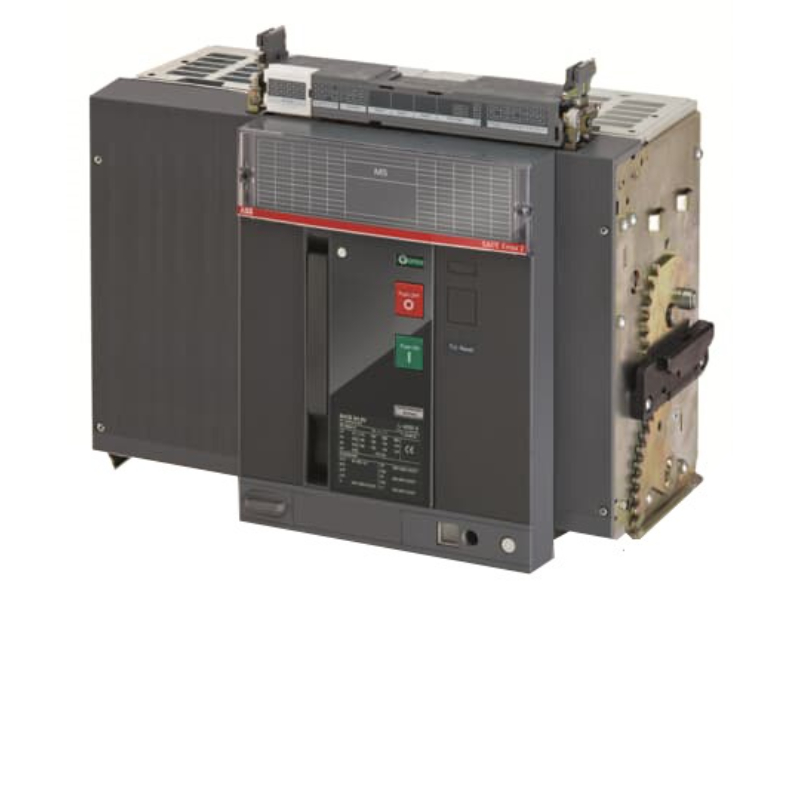

The ACB E4.2H 3200A 4P 100kA is a high-quality and reliable product designed for engineers. This withdrawable non auto HR-HR terminal complete with WMP+FP offers excellent performance and functionality. With a current rating of 3200A and a breaking capacity of 100kA, this ACB is suitable for various applications. Its 4P configuration ensures efficient power distribution and protection. Trust in the ACB E4.2H to deliver exceptional results in your engineering projects.

Brand	ABB
AC Voltage (V)	690
Breaking Capacity (kA)	100 @415V AC
Breaking Capacity 415V AC - Icu (kA)	100
Component Type	Withdrawable
Current Rating (A)	3200
Frame	E4.2
Icw (kA/1s) - Short-time Withstand Current Rating	85
Iu - Uninterrupted Current Rating (A)	3200
No. of Poles	4P
Poles	4P
Power Loss (W)	743
Rated Current (A)	3200
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Voltage AC (V)	690
Rated Short-time Withstand Current - Icw (kA/1s)	85
Rated Uninterrupted Current - Iu (A)	3200
Size of Frame	E4.2
Standards and Approvals	IEC
Terminal Type	HR-HR
Version	Withdrawable
