ABB E22N4NA25W ACB E2.2N 4P 66KA WITHDRAWABLE 1600A NON AUTO

Product Code: E22N4NA25W

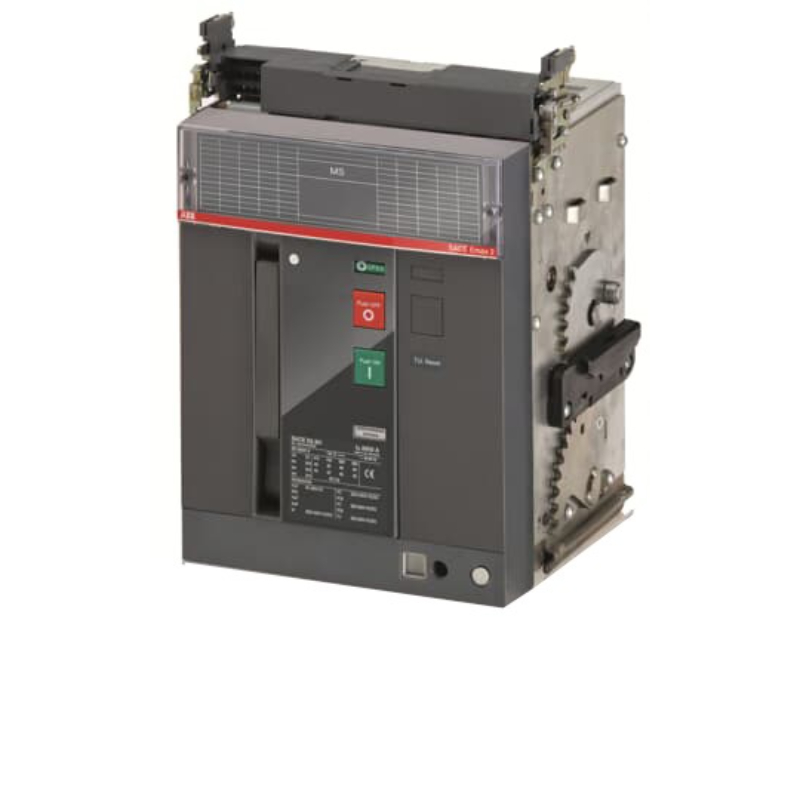

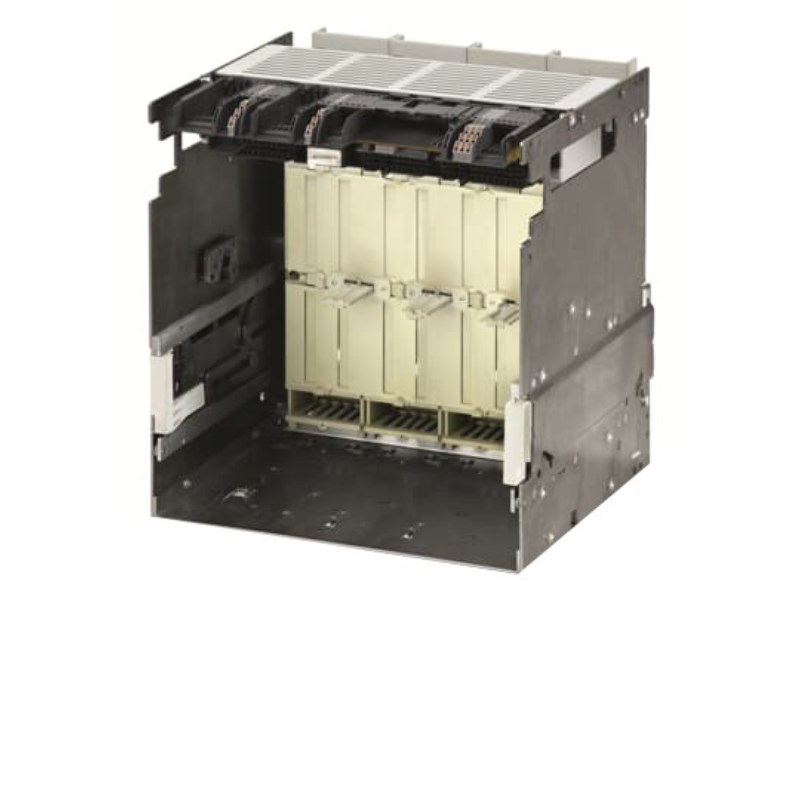

The ACB E2.2N is a 2500A, 4P circuit breaker with a rating of 66kA. It features a withdrawable non auto HR-HR terminal and comes complete with WMP+FP.

Technical Specifications

Version Withdrawable
Brand ABB
AC Voltage (V) 690
Breaking Capacity 415V AC - Icu (kA) 66
Current Rating (A) 2500
No. of Poles 4P
Power Loss (W) 550
Rated Current (A) 2500
Rated Impulse Withstand Voltage (kV) 12
Rated Insulation Voltage AC (V) 1000
Rated Operational Voltage AC (V) 690
Rated Short-time Withstand Current - Icw (kA/1s) 66
Rated Uninterrupted Current - Iu (A) 2500
Terminal Type HR-HR
Size of Frame E2.2
Standards and Approvals IEC
Poles 4P
Breaking Capacity (kA) 66 @415V AC
Frame E2.2
Icw (kA/1s) - Short-time Withstand Current Rating 66
Iu - Uninterrupted Current Rating (A) 2500
Component Type Withdrawable
