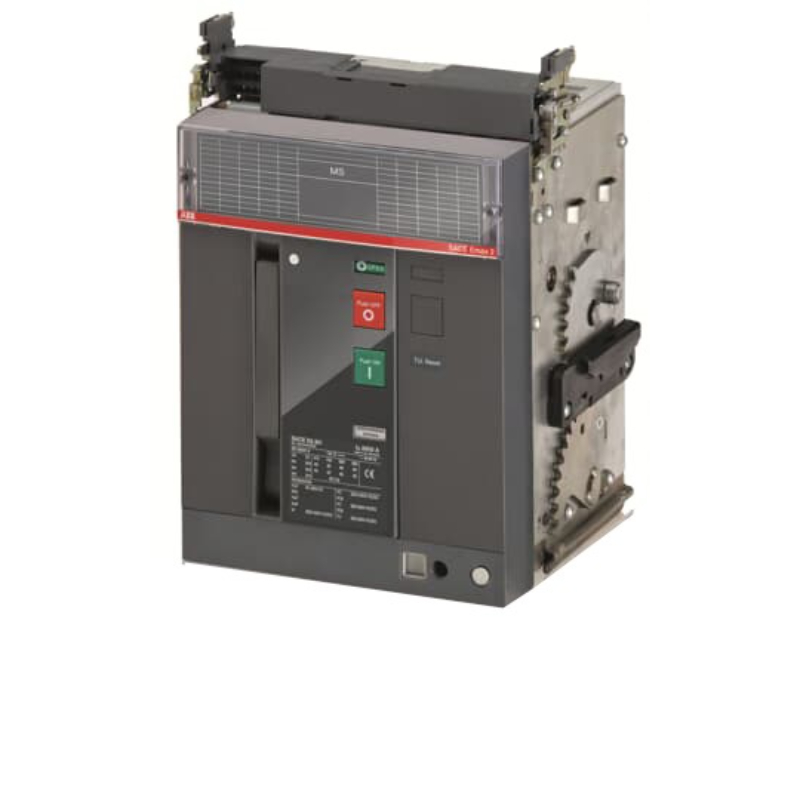

ABB E22N4NA20W ACB E2.2N 4P 66KA WITHDRAWABLE 1600A NON AUTO

Product Code: E22N4NA20W

The ACB E2.2N is a 2000A, 4P circuit breaker with a 66kA short-circuit breaking capacity. It features a withdrawable design and does not have automatic operation. The terminal is HR-HR type and it comes complete with WMP+FP accessories.

Technical Specifications

Brand ABB
AC Voltage (V) 690
Breaking Capacity (kA) 66 @415V AC
Breaking Capacity 415V AC - Icu (kA) 66

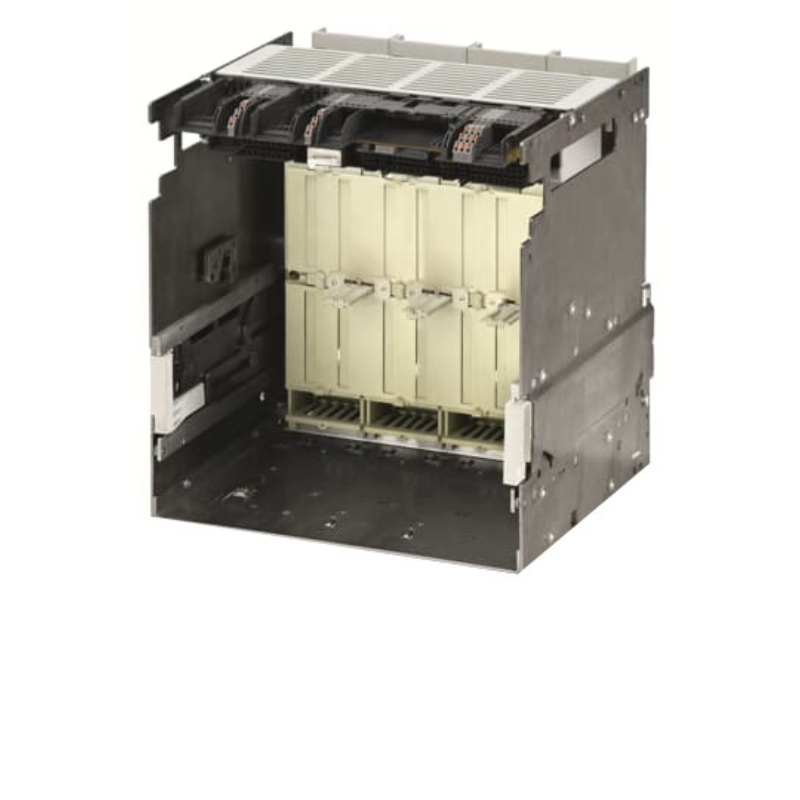

Component Type Withdrawable
Current Rating (A) 2000
Frame E2.2
Icw (kA/1s) - Short-time Withstand Current Rating 66
Iu - Uninterrupted Current Rating (A) 2000
No. of Poles 4P
Poles 4P
Power Loss (W) 450
Rated Current (A) 2000
Rated Impulse Withstand Voltage (kV) 12
Rated Insulation Voltage AC (V) 1000
Rated Operational Voltage AC (V) 690
Rated Short-time Withstand Current - Icw (kA/1s) 66
Rated Uninterrupted Current - Iu (A) 2000
Size of Frame E2.2
Standards and Approvals IEC
Terminal Type HR-HR
Version Withdrawable
