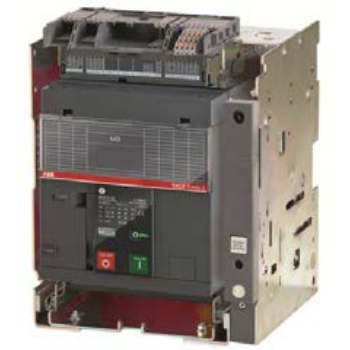

ABB E22H4NA25W ACB E2.2H 4P 100KA WITHDRAWABLE 1600A NON AUTO

Product Code: E22H4NA25W

The ACB E2.2H 2500A 4P is a high-quality, reliable and efficient circuit breaker designed for engineers. With a rating of 100kA, it provides excellent protection against electrical faults. This withdrawable non auto HR-HR terminal complete WMP+FP model offers convenience and flexibility in installation and maintenance.

Technical Specifications

Brand ABB
AC Voltage (V) 690
Breaking Capacity (kA) 100 @415V AC
Breaking Capacity 415V AC - Icu (kA) 100
Component Type Withdrawable
Current Rating (A) 2500
Frame E2.2
Icw (kA/1s) - Short-time Withstand Current Rating 85
Iu - Uninterrupted Current Rating (A) 2500
No. of Poles 4P
Poles 4P
Power Loss (W) 550
Rated Current (A) 2500
Rated Impulse Withstand Voltage (kV) 12
Rated Insulation Voltage AC (V) 1000
Rated Operational Voltage AC (V) 690
Rated Short-time Withstand Current - Icw (kA/1s) 85
Rated Uninterrupted Current - Iu (A) 2500
Size of Frame E2.2
Standards and Approvals IEC
Terminal Type HR-HR
Version Withdrawable
