Air Circuit Breakers

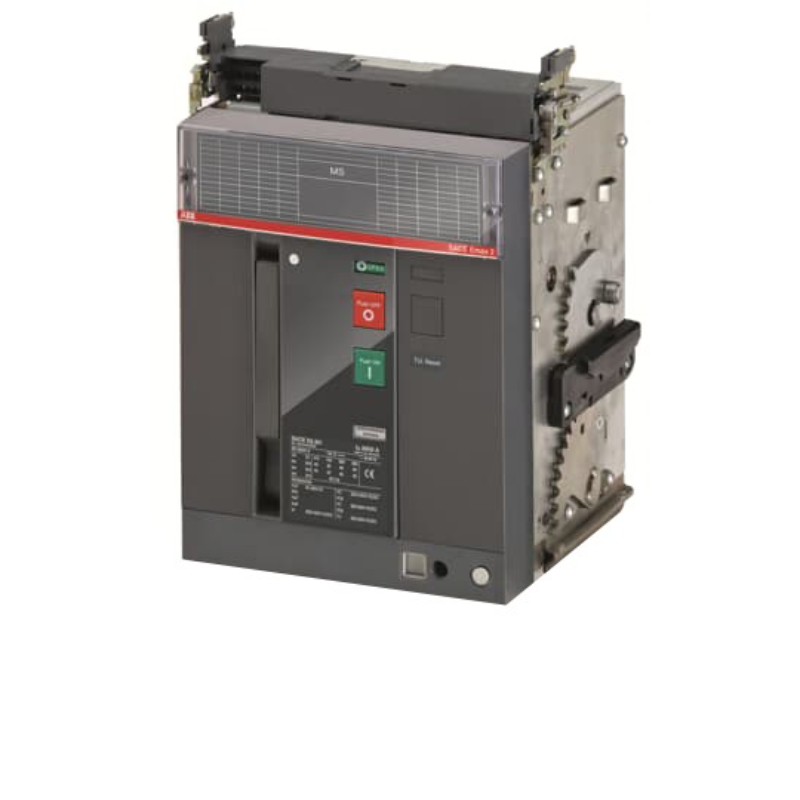

ABB E22H3NA25W ACB E2.2H 3P 100KA WITHDRAWABLE 2500A NON AUTO

Product Code: E22H3NA25W

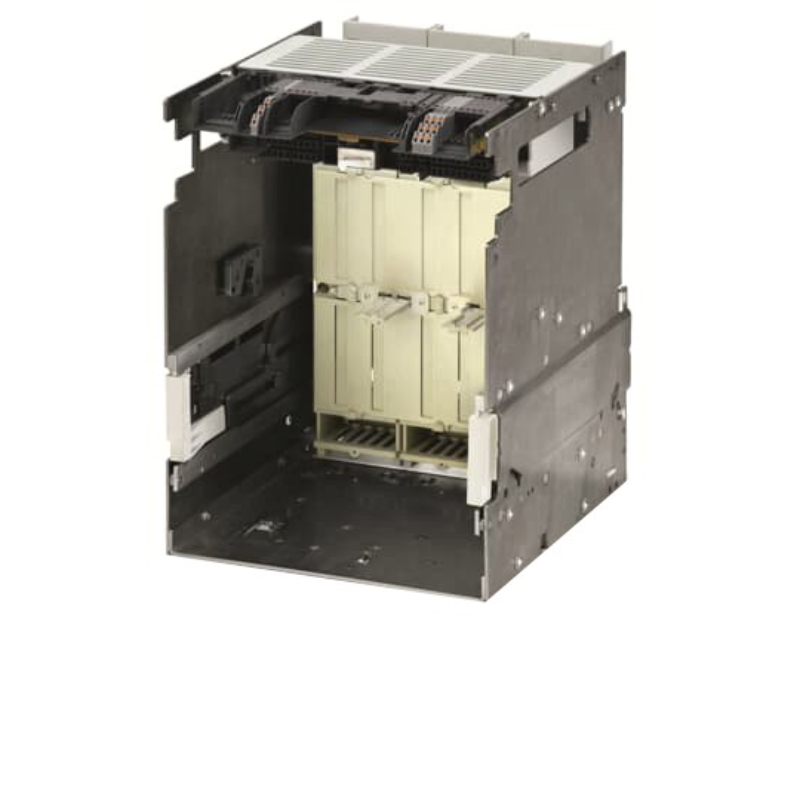

The ACB E2.2H is a 2500A, 3P circuit breaker with a 100kA short-circuit breaking capacity. It features a withdrawable non-auto HR-HR terminal and comes complete with WMP+FP accessories.

Technical Specifications

Brand ABB
AC Voltage (V) 690
Breaking Capacity (kA) 100 @415V AC
Breaking Capacity 415V AC - Icu (kA) 100
Component Type Withdrawable
Current Rating (A) 2500
Frame E2.2
Icw (kA/1s) - Short-time Withstand Current Rating 85
Iu - Uninterrupted Current Rating (A) 2500
No. of Poles 3P
Poles 3P
Power Loss (W) 550
Rated Current (A) 2500
Rated Impulse Withstand Voltage (kV) 12
Rated Insulation Voltage AC (V) 1000
Rated Operational Voltage AC (V) 690
Rated Short-time Withstand Current - Icw (kA/1s) 85
Rated Uninterrupted Current - Iu (A) 2500
Size of Frame E2.2
Standards and Approvals IEC
Terminal Type HR-HR
Version Withdrawable
