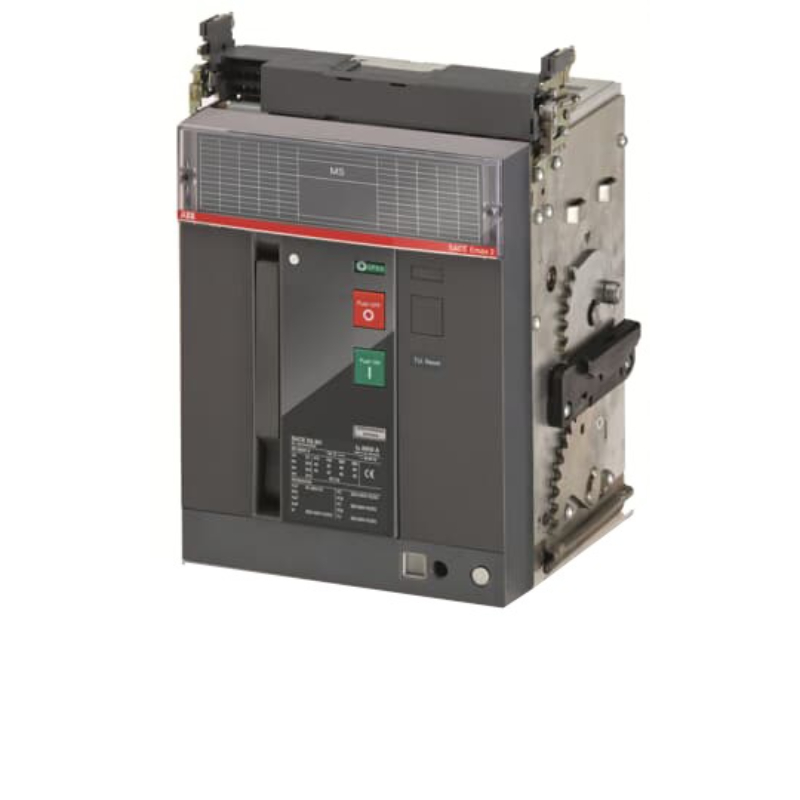

ABB E22H3NA20W ACB E2.2H 3P 100KA WITHDRAWABLE 2000A NON AUTO

Product Code: E22H3NA20W

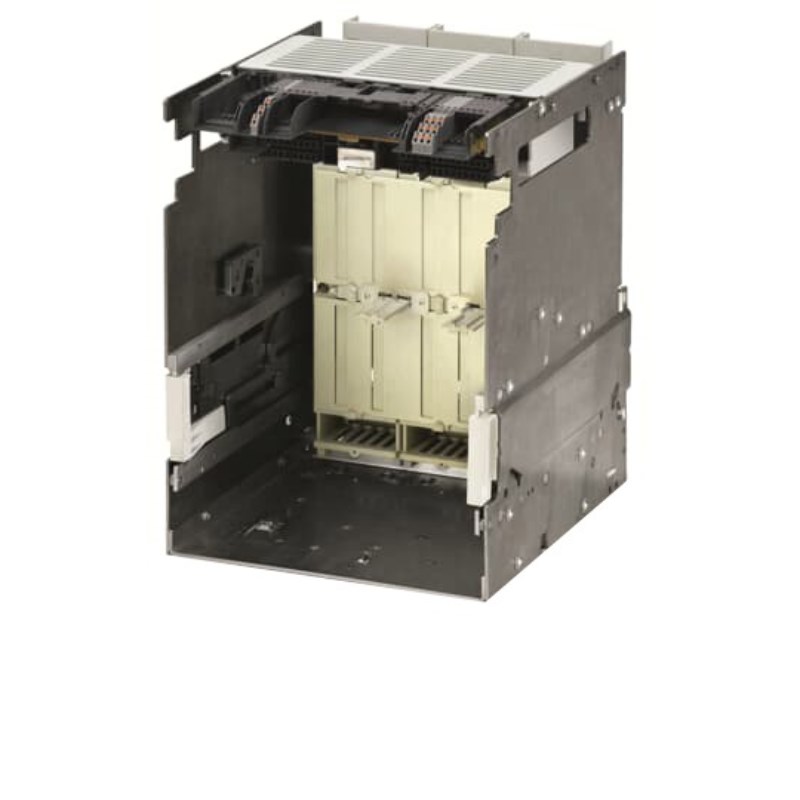

The ACB E2.2H 2000A 3P 100kA is a withdrawable non auto HR-HR terminal complete with WMP+FP. This product is designed for engineers and offers a high level of accuracy and critical information.

Technical Specifications

Brand ABB
AC Voltage (V) 690
Breaking Capacity (kA) 100 @415V AC
Breaking Capacity 415V AC - Icu (kA) 100
Component Type Withdrawable
Current Rating (A) 2000
Frame E2.2
Icw (kA/1s) - Short-time Withstand Current Rating 85
Iu - Uninterrupted Current Rating (A) 2000
No. of Poles 3P
Poles 3P
Power Loss (W) 450
Rated Current (A) 2000
Rated Impulse Withstand Voltage (kV) 12
Rated Insulation Voltage AC (V) 1000
Rated Operational Voltage AC (V) 690
Rated Short-time Withstand Current - Icw (kA/1s) 85
Rated Uninterrupted Current - Iu (A) 2000
Size of Frame E2.2
Standards and Approvals IEC
Terminal Type HR-HR
Version Withdrawable
