Product Code: 3AXD50000039015

The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth® control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.

Contains	Control Element PC Connection
Maximum Output Frequency (Hz)	500
Maximum Output Voltage AC (V)	480
No. of Analogue Inputs	2
No. of Analogue Outputs	2
No. of Digital Inputs	6
No. of Digital Outputs	3
Nominal Output Current (A)	2.6
Number of Other HW Interfaces	2
Number of Parallel Interfaces	2
Number of RS-485 Interfaces	1
Number of USB Interfaces	1
Output Power - Normal Duty (kW)	0.75
Relative Symmetric Net Frequency Tolerance	5%
Relative Symmetric Net Voltage Tolerance	10%
Brand	ABB
Communication Protocols	TCP/IP PROFIBUS CAN MODBUS DeviceNet / DeviceNet Safety PROFINET IO EtherNet/IP Other Bus Systems
Application	Industrial, Commercial & Domestic
Dimensions (mm)	125W x 373H x 223D
EAN	6438177459651
Input Voltage AC (V)	380 - 480

Variable Speed Drives

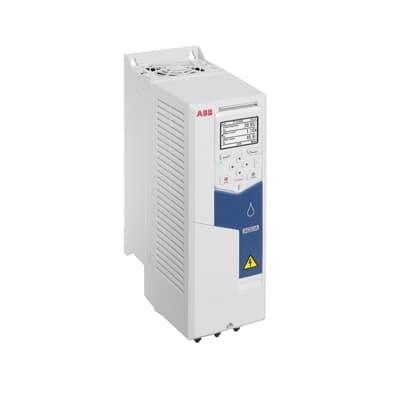

ABB ACQ580-01-02A7-4 PN: 0.75 kW, IN: 2.6 A 3AXD50000039015
