AC Input Type	Wide-range
Conformal Coating	No
Country of Origin	China / Czech Republic
DC-OK Signal	Yes
Derating	6 W/°C
Derating Temperature (°C)	> +60
E Classification	E-CS02
Efficiency	93.50%
Harmonic Correction	Active
Input Inrush Current (A)	4 / 7
Input Inrush Current Limitation	Active
Input Voltage Range AC (V)	100-240
Input Voltage Range DC (V)	110-300
Integrated Decoupling Function	No
Maximum Input Voltage DC (V)	300
Maximum Ripple and Noise Voltage (mVpp)	50
Minimum Input Voltage DC (V)	110
Output Current Range (A)	10 - 9
Output Power (W)	240
Output Voltage (V)	24-28
Power Reserve Type	BonusPower
Power Reserves	50%
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Spring clamps
Customs Tariff Number	85043121
Degree of Protection	IP20
Dimensions (mm)	60W x 124H x 117D
Family	DIMENSION
Mounting Type	DIN Rail
Operational Temperature Range (°C)	-25 to 70
Power Loss (W)	16.7
Range	DIMENSION
Rated Current (A)	10
Series	Q series
Standards and Approvals	EU Declaration of Conformity, IEC 60950 CB Scheme, IEC 61010-2-201 CB Scheme, Korea Certification, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	900

Industrial Power Supplies

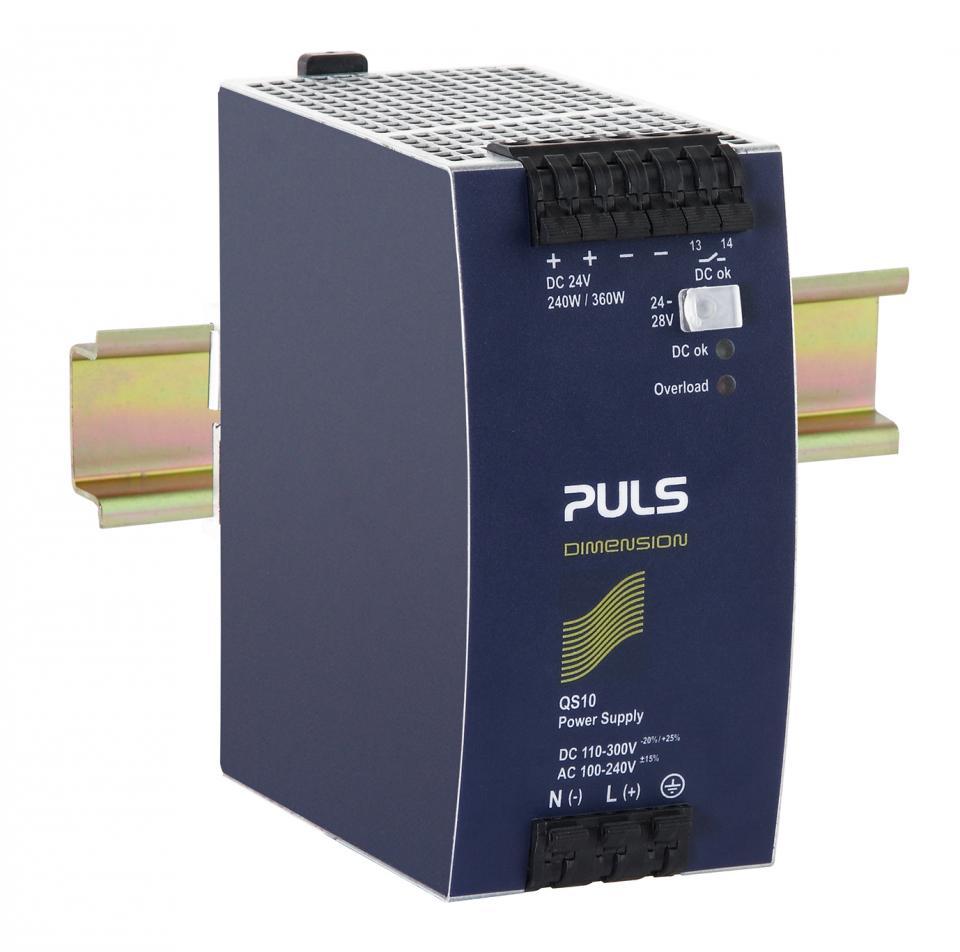

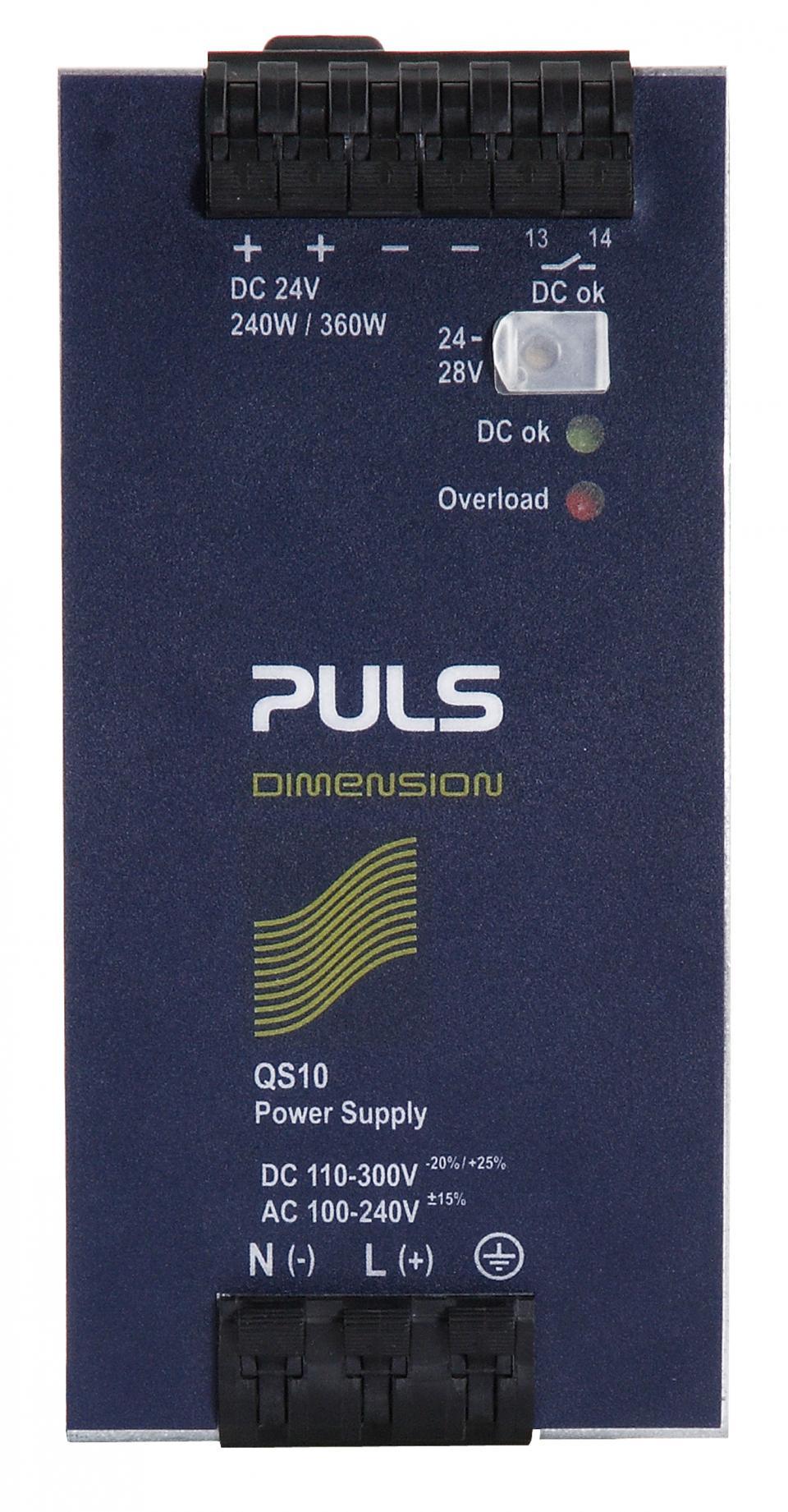

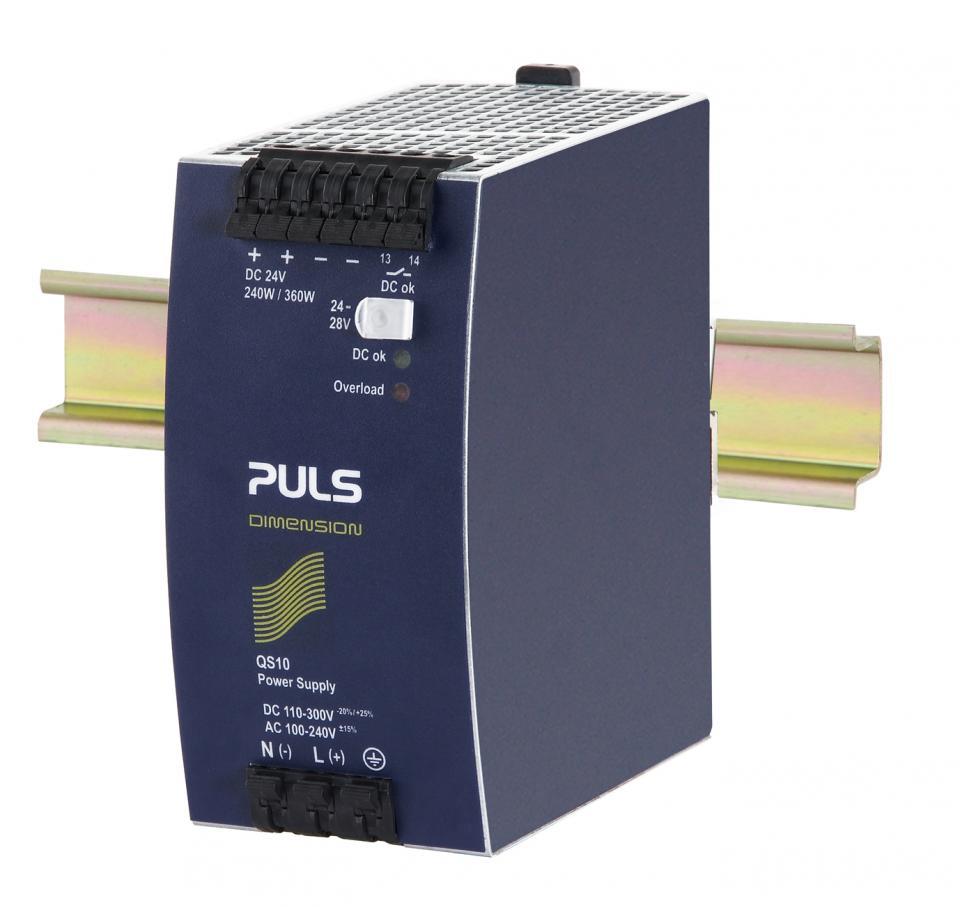

PULS POWER SUPPLY 1 PHASE 24V DC 10A QS10.241-D1
