Product Code: PISA11.406

This product features one input and four current controlled outputs, ensuring a reliable supplyVoltage for critical loads, even in the event of a fault. It also provides protection against overload for small cable sizes. With its hassle-free turn-on capability, it can easily handle loads with large input capacitors. The product operates within a wide temperature range of -25°C to +70°C. Additionally, it offers an on/off function for the outputs and has a compact design with a width of only 45mm. Furthermore, it includes a remote monitoring and control function for added convenience.

Conformal Coating	No
Country of Origin	China / Czech Republic
DC Input Current at No Load	43
E Classification	E-CS06
Input Voltage Range DC (V)	24
Maximum Input Voltage DC (V)	30
Maximum Input Voltage Protection Level DC (V)	21.8
Maximum Output Current Limitation (A)	30
Minimum Input Voltage DC (V)	18
Minimum Input Voltage Protection Level DC (V)	21.0
Minimum Output Current Limitation (A)	20.5
Nominal Output Current 'a' (A)	6
Nominal Output Current 'b' (A)	6
Nominal Output Current 'C' (A)	6
Nominal Output Current 'd' (A)	6
Output Voltage (V)	24-28
Power Loss No Load (W)	1
Required DC Input Voltage To Switch On Outputs (V)	21.4
Shutdown Time at Short-circuit (ms)	8.0
Special Application	Hazardous location, Marine
Turn-on Delay Of Outputs (ms)	270
Use In Crosslinking	Yes
Voltage Drop (mV)	124
Brand	PULS
Connection Type	Screw terminals
Customs Tariff Number	85363010
Degree of Protection	IP20
Dimensions (mm)	45W x 75H x 91D
Family	PISA
Mounting Type	DIN Rail
Operational Temperature Range (°C)	-25 to 70
Range	PISA
Rated Current (A)	20
Series	PISA11 series
Standards and Approvals	ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IEC 60950 CB Scheme, Marine ABS, Marine DNV, UL 508 Canada, UL 508 USA, UL 2367, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	120

Industrial Power Supplies

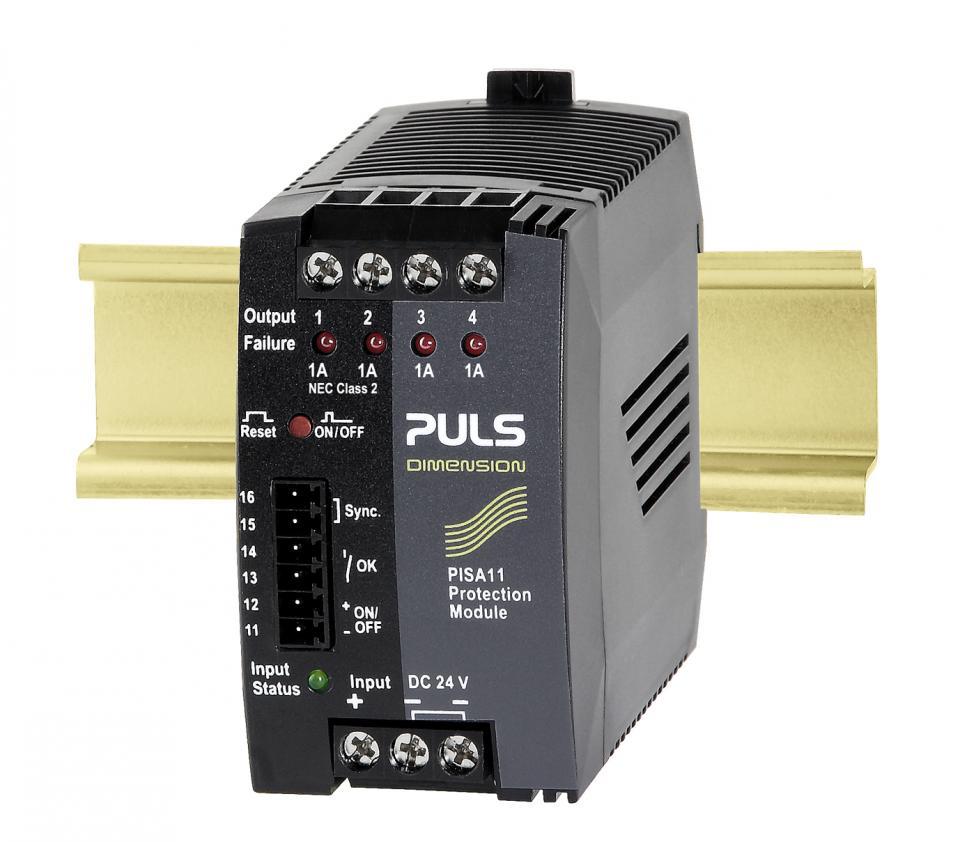

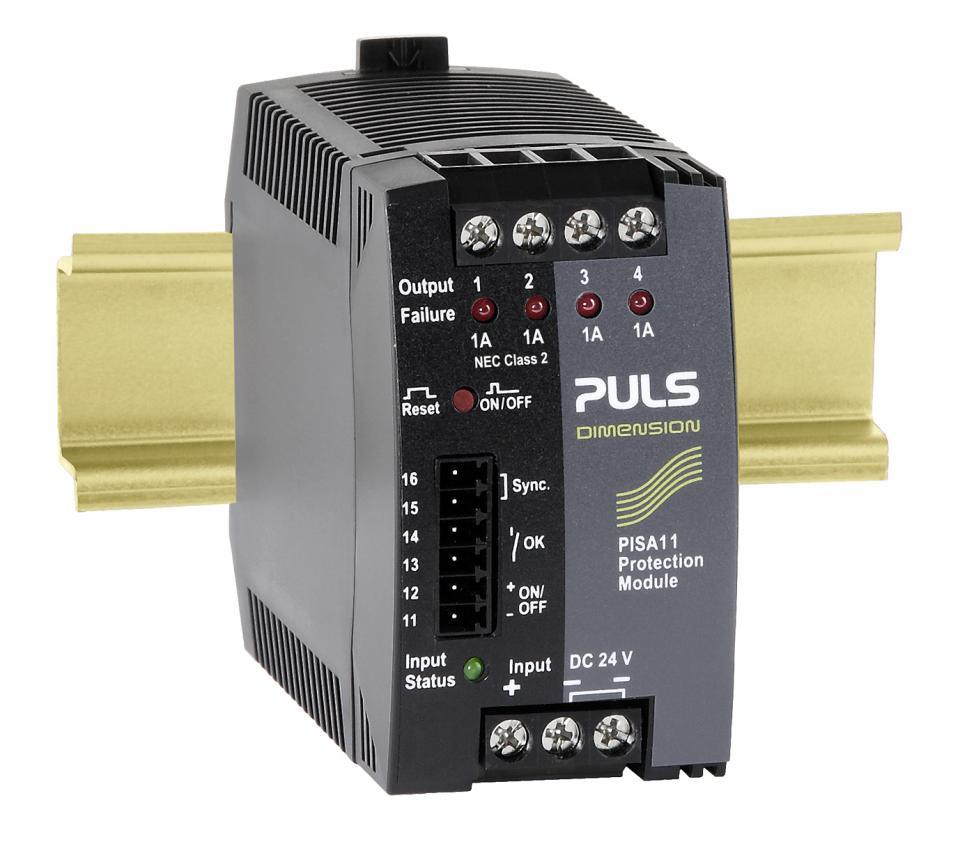

PULS ELECTRONIC CIRCUIT BREAKER 24VDC 4 X 6A PISA11.406
