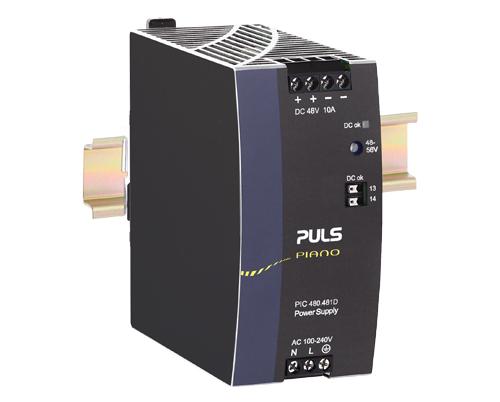

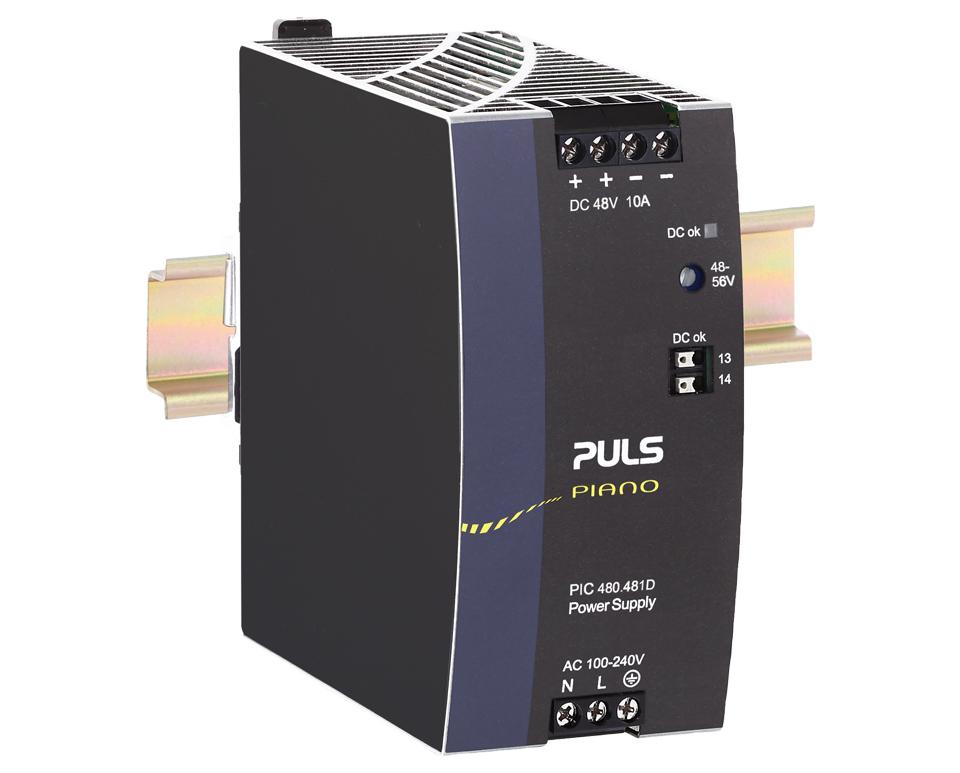

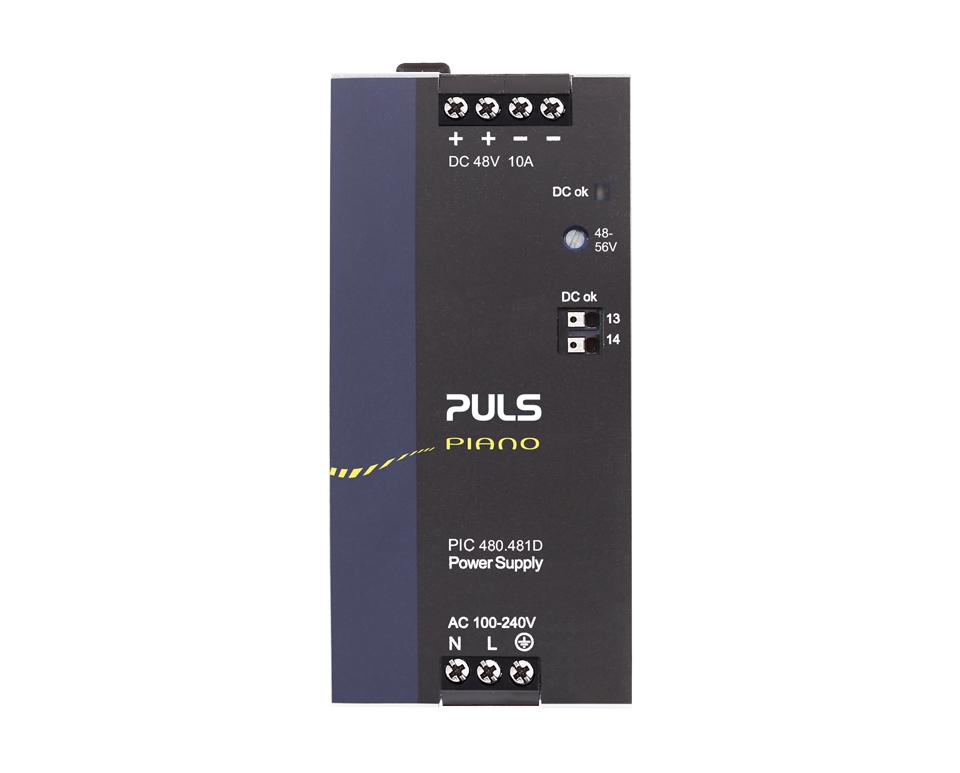

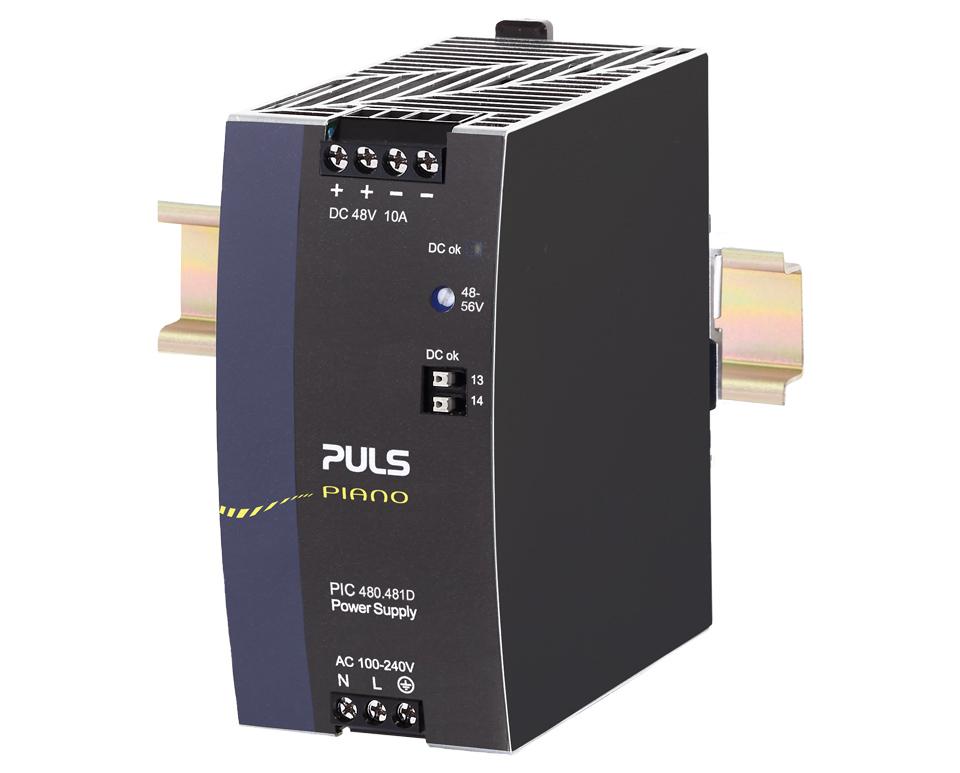

PULS DIN RAIL POWER SUPPLY 1 PHASE PIC480.481D

Product Code: PIC480.481D

AC 100-240V wide-range input, Active PFC, and a width of only 59mm. This product offers an impressive efficiency of up to 95.7%. It features a Safe HiccupPLUS overload mode and can operate at full power between -25°C and +55°C. Additionally, it includes a DC-OK relay contact.

Technical Specifications

AC Input Type Wide-range
Conformal Coating No
Country of Origin Czech Republic
DC-OK Signal Yes
Derating 12 W/°C
Derating Temperature (°C) > +55
E Classification E-CS01
Efficiency 95.70%
External Input Fuse Recommendation B-10 A / C-6 A
Hold Up Time (ms) 27
Input Inrush Current (A) 15 / 35
Input Voltage Range AC (V) 100-240
Integrated Decoupling Function No
Maximum Ripple and Noise Voltage (mVpp) 100
Output Current Range (A) 10 - 8.6
Output Power (W) 480
Output Voltage (V) 48-56
Power Factor 0.97
Use In Crosslinking Yes
Brand PULS
Connection Type Screw terminals
Customs Tariff Number 85044083
Degree of Protection IP20
Dimensions (mm) 59W x 124H x 127D
Family PIANO
Material Metal
Mounting Type DIN Rail
Operational Temperature Range (°C) -25 to 70
Power Loss (W) 21.6
Range PIANO
Rated Current (A) 10
Series PIC series
Standards and Approvals EU Declaration of Conformity, IEC 61010-2-201 CB Scheme, IEC 62368-1 CB Scheme, UL 61010-2-201 Canada, UL 61010-2-201 USA, UK Declaration of Conformity
Warranty Period (Months) 36
Weight (g) 810
