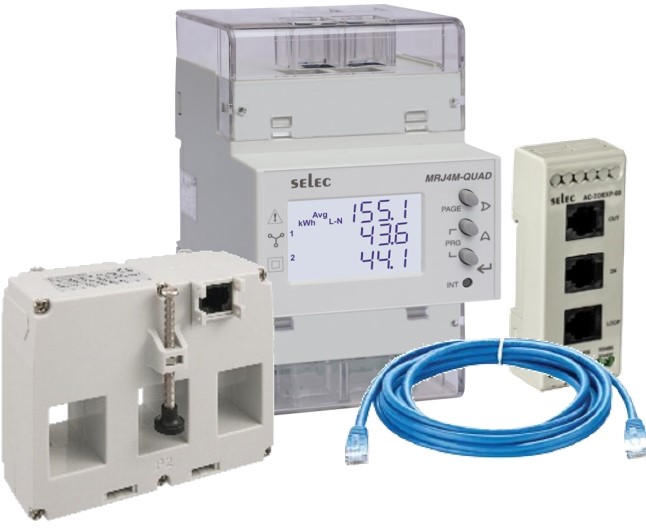

SELEC KIT: MRJ4M-QUAD METER + 3 X 2M RJ45 CABLE + COMMS KIT + 3 X 60A CT 21X25MM MRJ4MQ-60A21/25-K

SELEC KIT: MRJ4M-QUAD METER + 3 X 2M RJ45 CABLE + COMMS KIT + 3 X 60A CT 21X25MM MRJ4MQ-60A21/25-K

Product Code: MRJ4MQ-60A21/25-K

Voltage, Current, Frequency, Power & Energy (Active, Reactive, Apparent) Class 1 Accuracy Independently programmable CT ratios (Load 1, 2,3 & 4) DIN rail mountable/ 4 modules wide MODBUS communication (RS485 available via Comms Adapter) All Load consumption available as a total and individual Cable Size: 0.5 to 2.5mm2 Application: Distribution Board Light, Power & Mechanical chassis monitoring

Specifications

Mounting Type	Din Rail Mount
Display Screen Type	LCD with Backlight
Brand	SELEC
Product Type	Meter & CT Kit
Included	1 x Meter & 3 x RJ45 cable (2m) & 3 x CT
Product Series	MRJ4M-QUAD
Accuracy	Class 1
Communication Protocols	RS485 and MODBUS RTU
Rated Primary Current - I?? (A)	60
Aperture (mm)	21/25
Size (mm)	90 X 70

Documents

IPD Product Catalogue

IPD Product Catalogue V17
