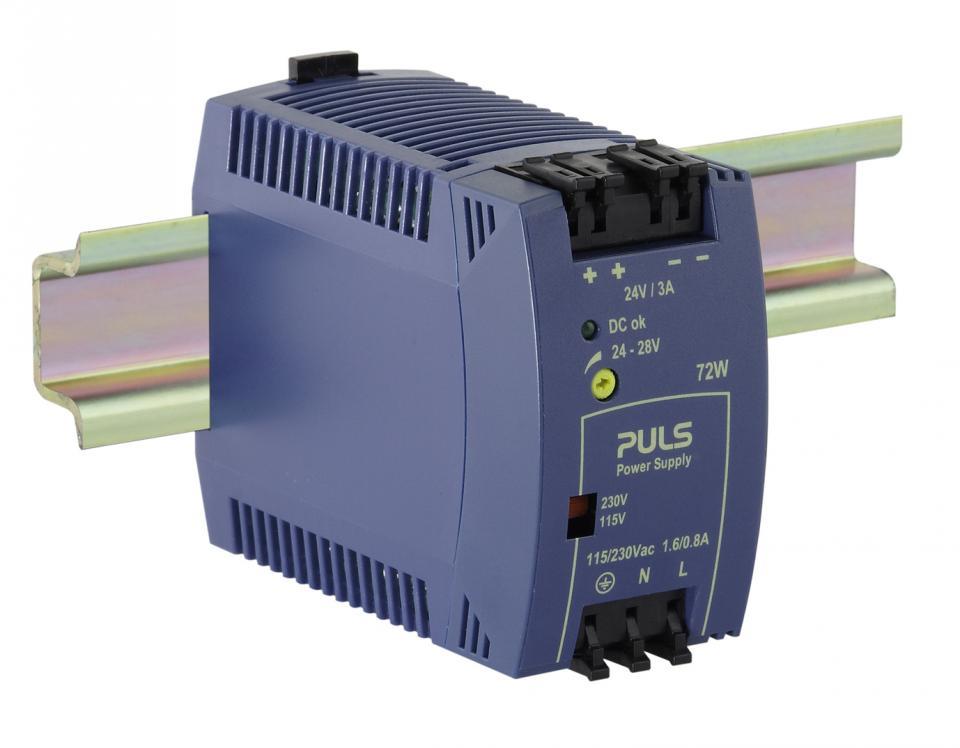

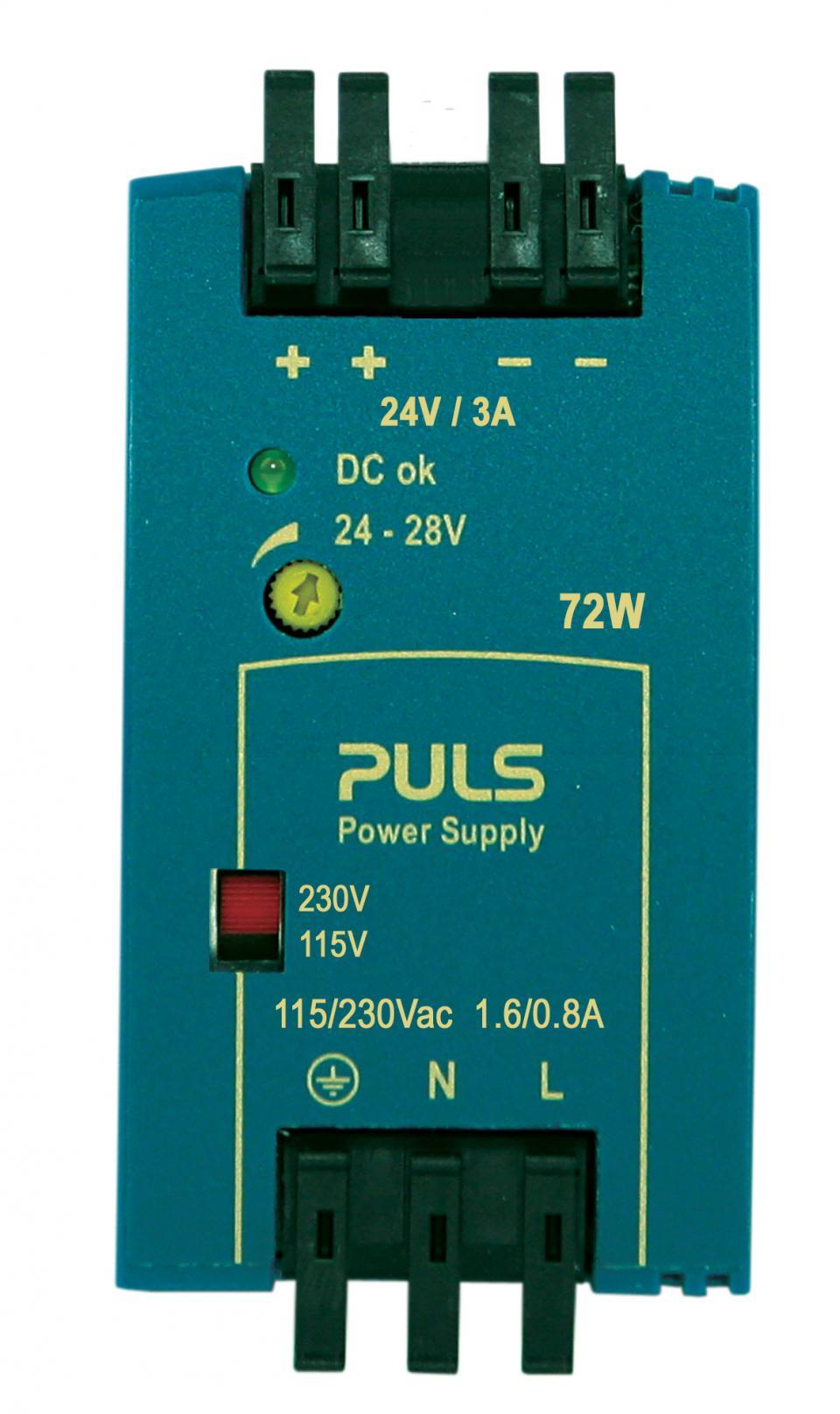

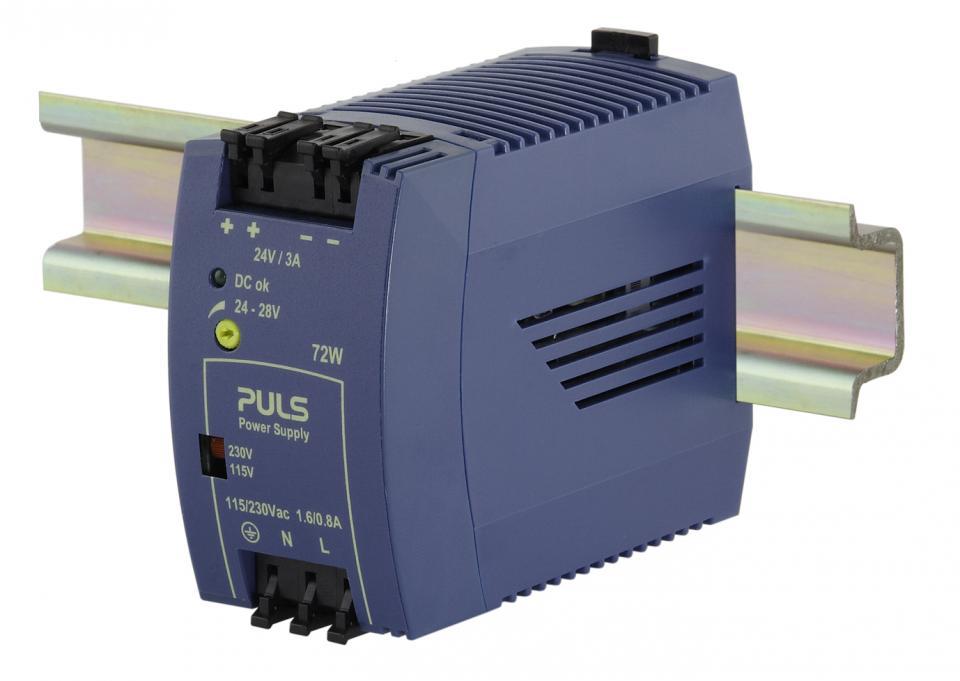

PULS DIN RAIL POWER SUPPLY 1 PHASE 24VDC 3A 72W ML70.100

Product Code: ML70.100

This product features a switchable input for both 115V and 230V power supply. It has an impressive efficiency rating of up to 91.5%. With its high power density, it provides a compact solution for your needs. It is NEC Class 2 Listed, ensuring safety and compliance. The product operates at full output power within a temperature range of -10 to +60 degrees Celsius. Additionally, it is equipped with quick-connect spring-clamp terminals for easy installation.

Technical Specifications

AC Input Type Manual-select
Conformal Coating No
Country of Origin China / Czech Republic
Derating 1.8 W/°C
Derating Temperature (°C) > +60
E Classification E-CS01
Efficiency 89.00%
External Input Fuse Recommendation B-10 A / C-6 A
Input Inrush Current (A) 26 / 30
Input Inrush Current Limitation NTC
Input Voltage Range AC (V) 100-120, 200-240
Input Voltage Range DC (V) 110-300
Integrated Decoupling Function No
Maximum Ripple and Noise Voltage (mVpp) 50
Minimum Input Voltage DC (V) 290
Output Current Range (A) 3 - 2.6
Output Power (W) 72
Output Voltage (V) 24-28
Power Factor 0.54
Special Application Hazardous location, Marine
Use In Crosslinking Yes
Brand PULS
Connection Type Spring clamps
Customs Tariff Number 85044083
Degree of Protection IP20
Dimensions (mm) 45W x 75H x 91D
Family MiniLine
Mounting Type DIN Rail
Power Loss (W) 8.7
Range MiniLine
Rated Current (A) 3
Series ML series
Standards and Approvals Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IEC 60950 CB Scheme, Marine DNV, UL 508 Canada, UL 508 USA, UL 1310 NEC Class 2, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months) 36
Weight (g) 260
