Product Code: ML50.105

This product features a wide-range input of 100-240V, ensuring compatibility withVarious power sources. With an efficiency rating of up to 90.3%, it maximizes energy utilization. It is NEC Class 2 Listed, meeting safety standards for electrical equipment. The full output power is maintained in temperatures ranging from -10 to +60°C, making it suitable for diverse environments. Additionally, the quick-connect spring-clamp terminals facilitate easy and secure installation.

AC Input Type	Wide-range
Conformal Coating	No
Country of Origin	China / Czech Republic
Derating	1.3 W/°C
Derating Temperature (°C)	> +60
E Classification	E-CS01
Efficiency	90.00%
External Input Fuse Recommendation	B-10 A / C-6 A
Input Inrush Current (A)	17 / 35
Input Inrush Current Limitation	NTC
Input Voltage Range AC (V)	100-240
Input Voltage Range DC (V)	110-300
Integrated Decoupling Function	No
Maximum Input Voltage DC (V)	300
Maximum Ripple and Noise Voltage (mVpp)	50
Minimum Input Voltage DC (V)	110
Minimum Output Current (A)	1.05
Output Power (W)	50
Output Voltage (V)	48-56
Power Factor	0.52
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Spring clamps
Customs Tariff Number	85044083
Degree of Protection	IP20
Dimensions (mm)	45W x 75H x 91D
Family	MiniLine
Mounting Type	DIN Rail
Power Loss (W)	6
Range	MiniLine
Rated Current (A)	1.05
Series	ML series
Standards and Approvals	EU Declaration of Conformity, IEC 60950 CB Scheme, UL 508 Canada, UL 508 USA, UL 1310 NEC Class 2, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	240

Industrial Power Supplies

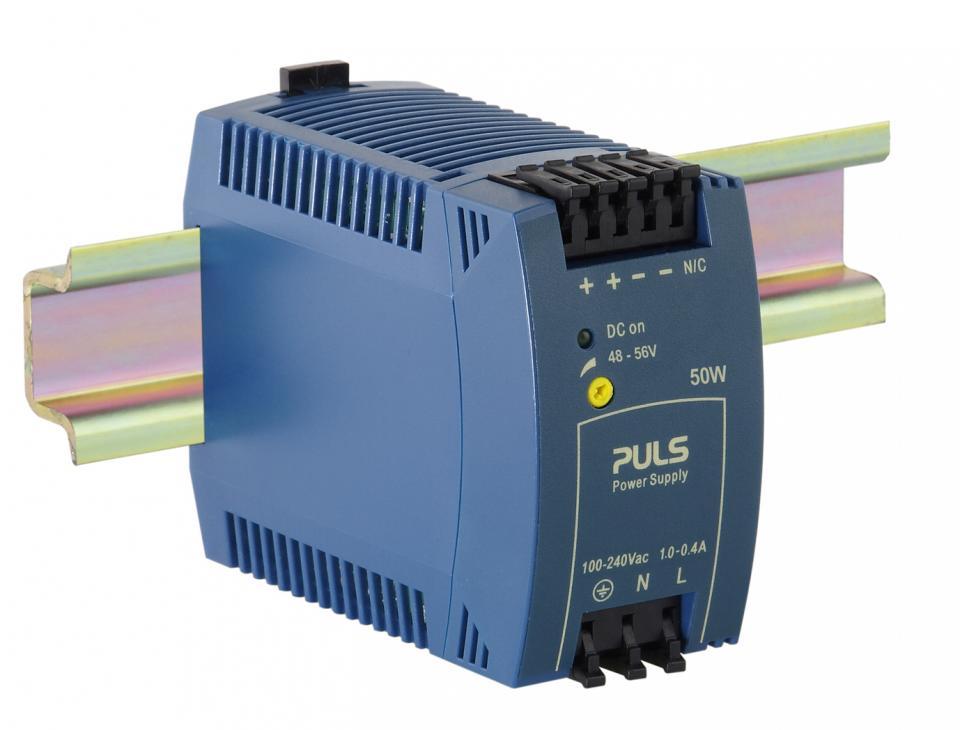

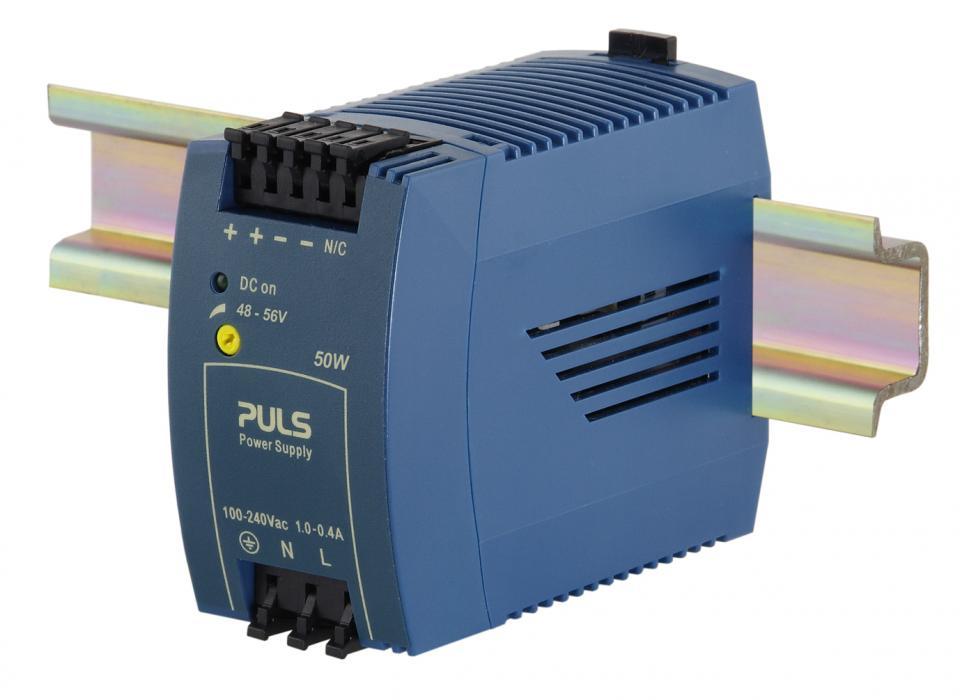

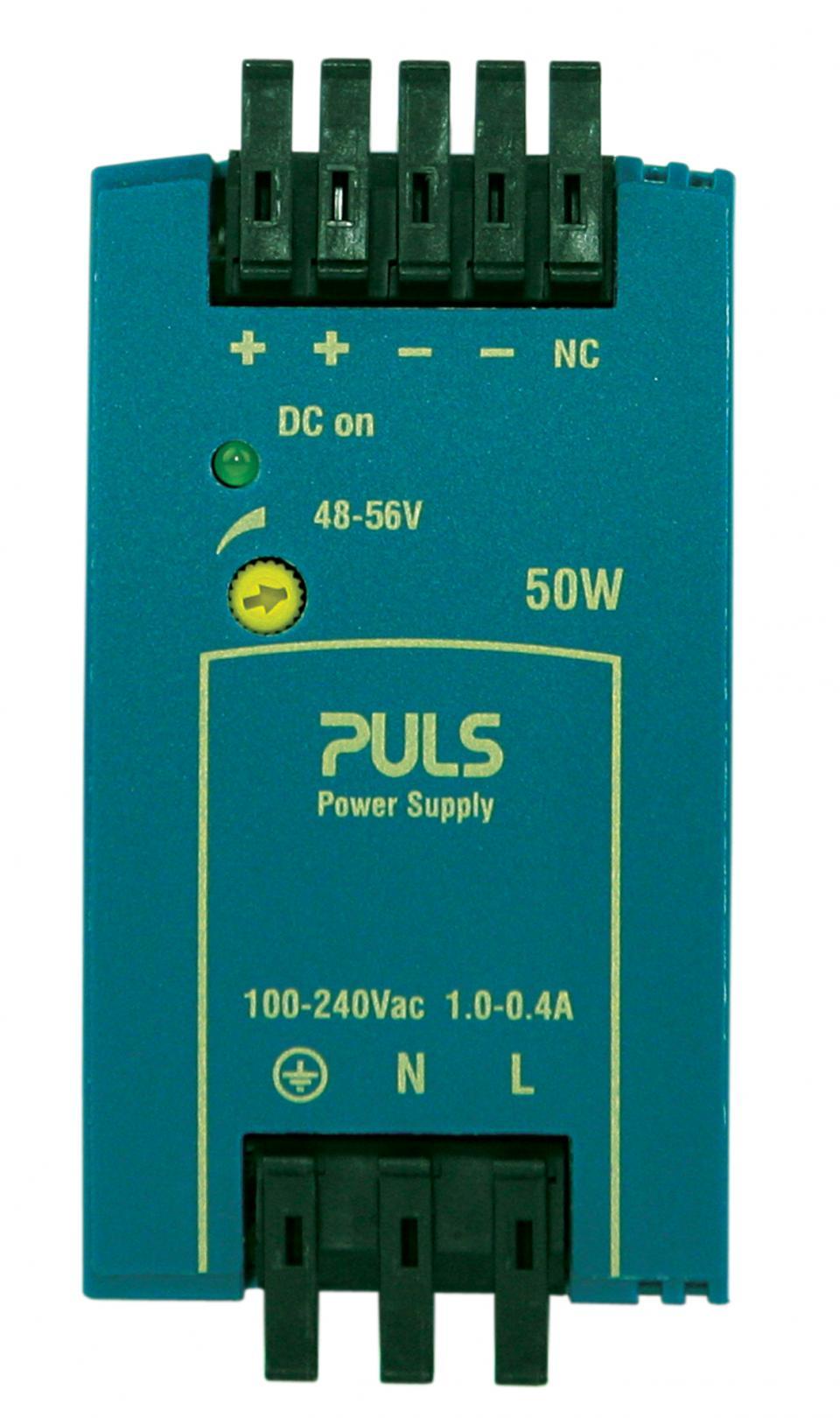

PULS DIN RAIL POWER SUPPLY 1 PHASE 48VDC 1.1A 50W ML50.105

Product Code: ML50.105

Technical Specifications
