Product Code: ML30.106

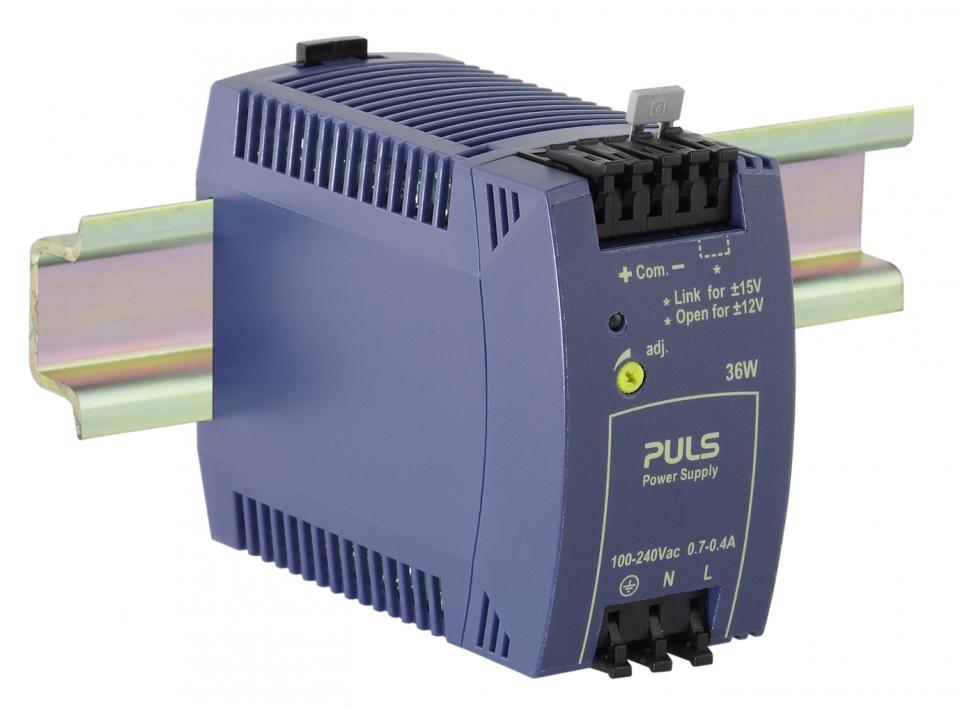

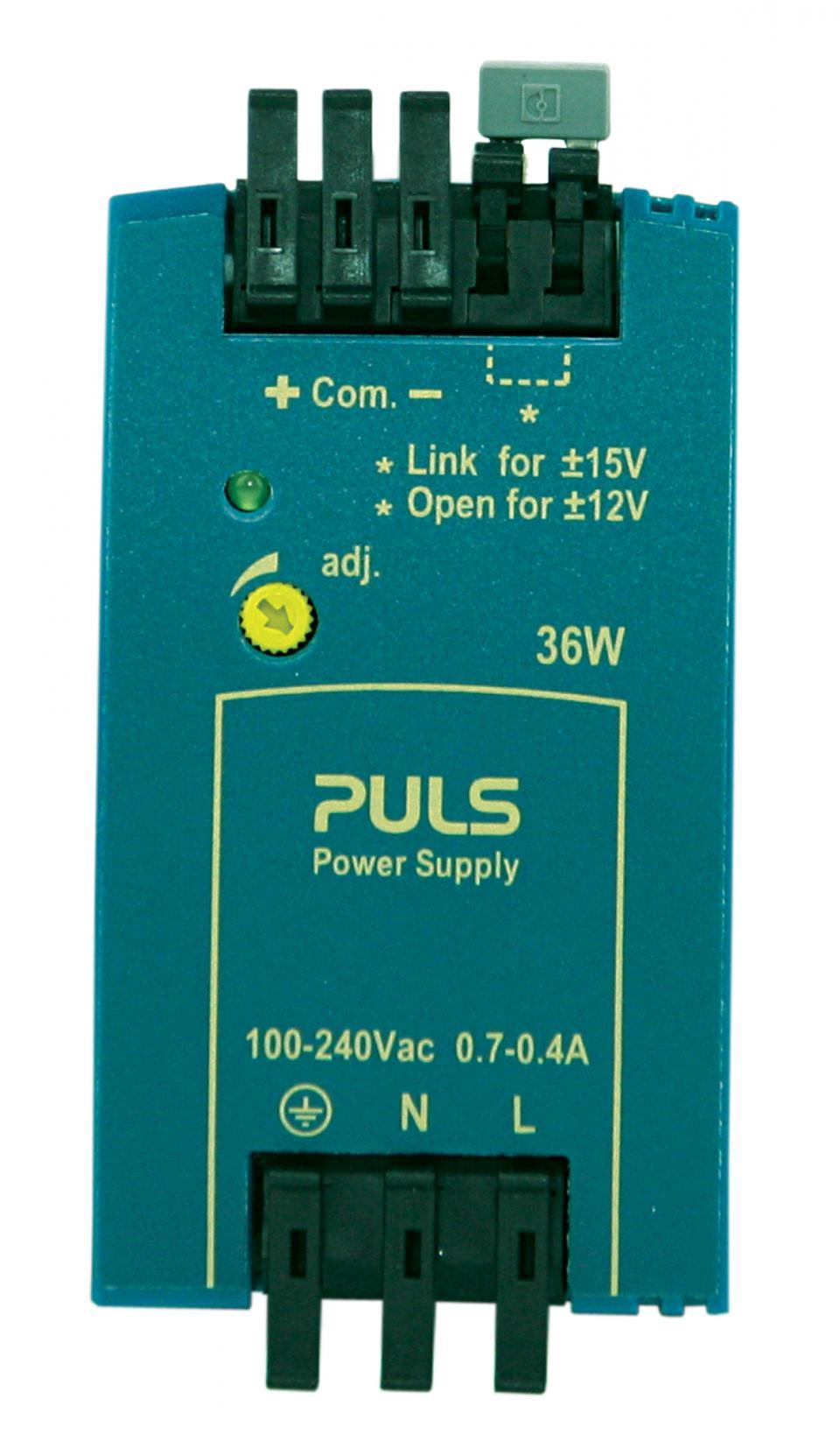

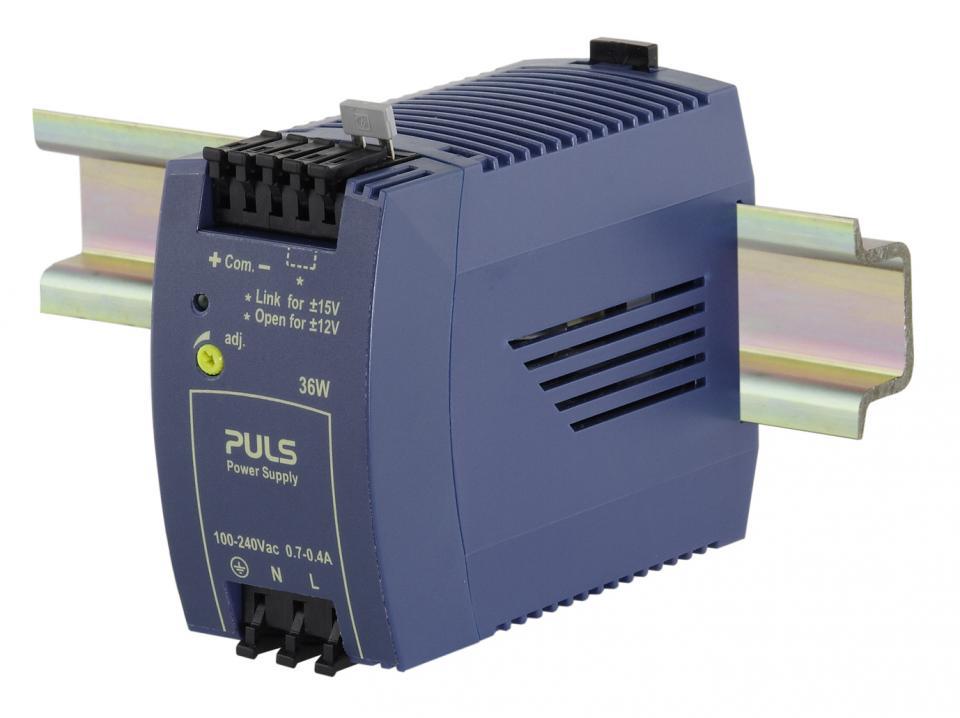

This product features a wide-range input of 100-240V, ensuring compatibility withVarious power sources. With an efficiency of up to 86%, it maximizes energy utilization. The dual output capability allows for simultaneous power supply to multiple devices. It is NEC Class 2 listed, meeting safety standards for electrical equipment. Operating within a temperature range of -10 to +60°C, it provides full output power underVarying conditions. The quick-connect spring-clamp terminals enable easy and secure connections. The outputVoltage can be adjusted to DC +-12V or DC +-15V, depending on the presence of a jumper.

AC Input Type	Wide-range
Conformal Coating	No
Country of Origin	China / Czech Republic
Derating	1 W/°C
Derating Temperature (°C)	> +60
E Classification	E-CS01
Efficiency	86.00%
External Input Fuse Recommendation	B-10 A / C-6 A
Input Inrush Current (A)	17 / 35
Input Inrush Current Limitation	NTC
Input Voltage Range AC (V)	100-240
Input Voltage Range DC (V)	110-300
Integrated Decoupling Function	No
Maximum Input Voltage DC (V)	300
Maximum Ripple and Noise Voltage (mVpp)	50
Minimum Input Voltage DC (V)	110
Output Current Range (A)	2.5 - 2.5
Output Power (W)	36
Output Voltage (V)	12-15
Power Factor	0.53
Special Application	Marine
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Spring clamps
Customs Tariff Number	85044083
Degree of Protection	IP20
Dimensions (mm)	45W x 75H x 91D
Family	MiniLine
Mounting Type	DIN Rail
Power Loss (W)	5.9
Range	MiniLine
Rated Current (A)	2.5
Series	ML series
Standards and Approvals	EU Declaration of Conformity, IEC 60950 CB Scheme, Marine DNV, UL 508 Canada, UL 508 USA, UL 1310 NEC Class 2, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	240

Industrial Power Supplies

PULS DIN RAIL POWER SUPPLY 1 PHASE 12VDC 2.5A 36W ML30.106

Product Code: ML30.106
