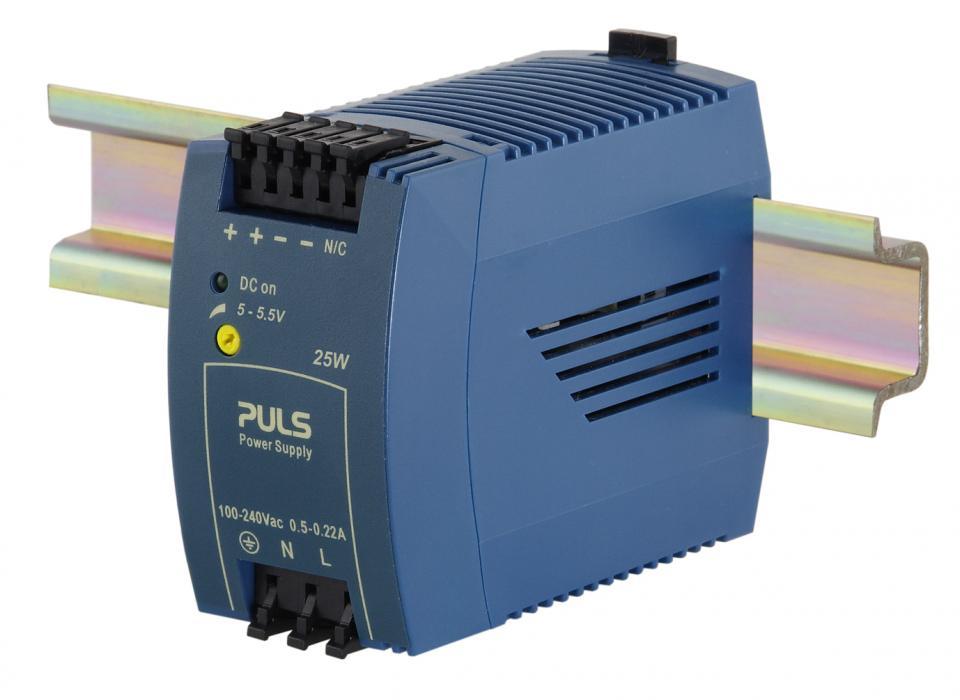

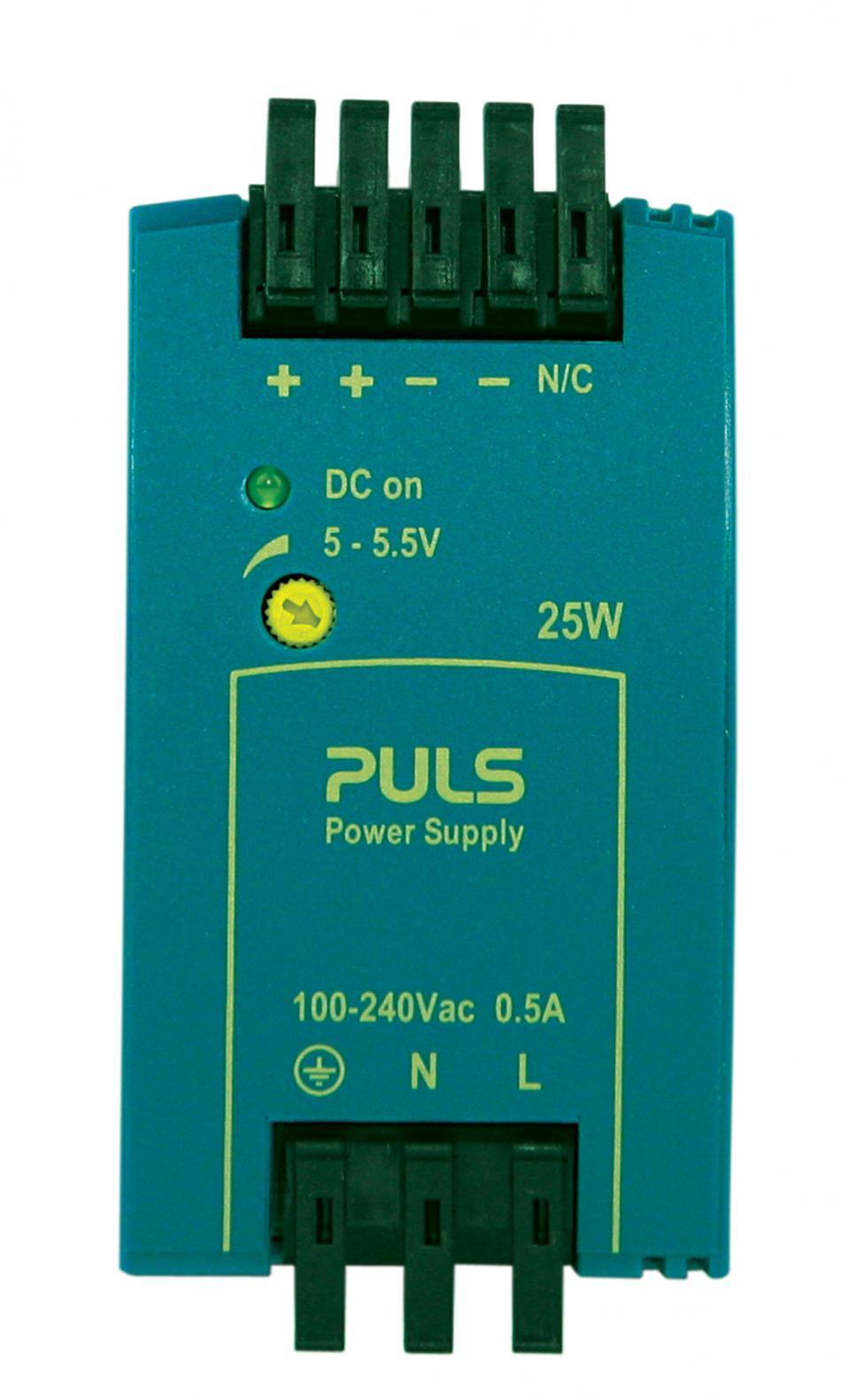

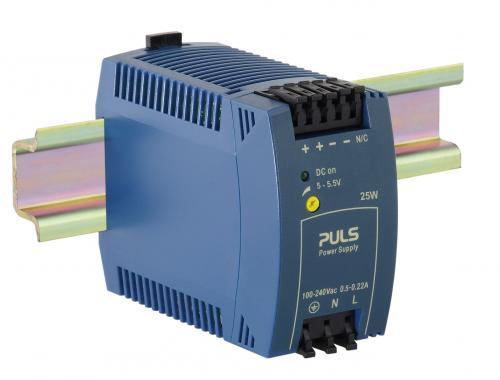

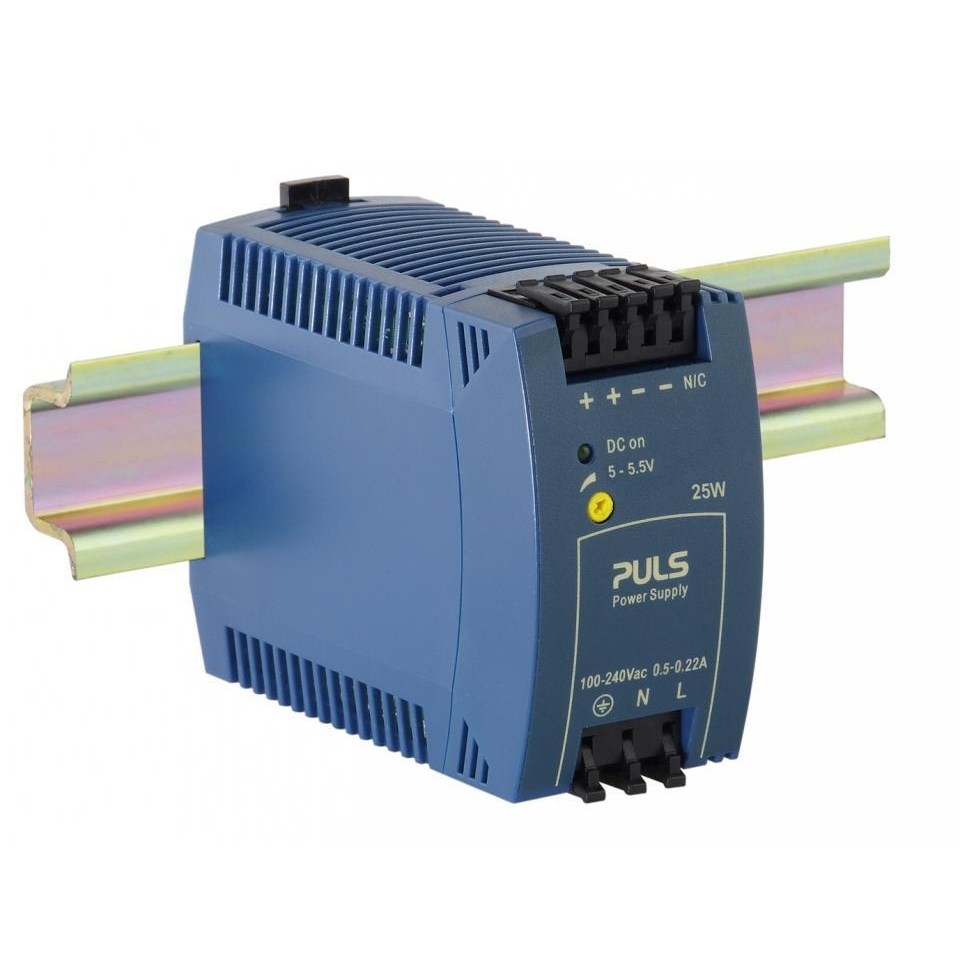

PULS DIN RAIL POWER SUPPLY 1 PHASE 5VDC 5A 25W ML30.101

Product Code: ML30.101

This product features a wide-range input of 100-240V, ensuring compatibility withVarious power sources. With an efficiency of up to 80%, it maximizes energy usage. It is NEC Class 2 Listed, meeting safety standards. The full output power is available in temperatures ranging from -10 to +60°C. The quick-connect spring-clamp terminals enable easy and secure connections.

Technical Specifications

AC Input Type Wide-range
Conformal Coating No
Country of Origin China / Czech Republic
Derating 0.5 W/°C
Derating Temperature (°C) > +60
E Classification E-CS01
Efficiency 80.00%
External Input Fuse Recommendation B-10 A / C-6 A
Input Inrush Current (A) 17 / 35
Input Inrush Current Limitation NTC
Input Voltage Range AC (V) 100-240
Input Voltage Range DC (V) 110-300
Integrated Decoupling Function No
Maximum Input Voltage DC (V) 300
Maximum Ripple and Noise Voltage (mVpp) 50
Minimum Input Voltage DC (V) 110
Minimum Output Current (A) 5
Output Power (W) 25
Output Voltage (V) 5-5.5
Power Factor 0.44
Special Application Hazardous location, Marine
Use In Crosslinking Yes
Brand PULS
Connection Type Spring clamps
Customs Tariff Number 85044083
Degree of Protection IP20
Dimensions (mm) 45W x 75H x 91D
Family MiniLine
Mounting Type DIN Rail
Power Loss (W) 6.3
Range MiniLine
Rated Current (A) 5
Series ML series
Standards and Approvals Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IEC 60950 CB Scheme, Marine DNV, UL 508 Canada, UL 508 USA, UL 1310 NEC Class 2, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months) 36
Weight (g) 240
