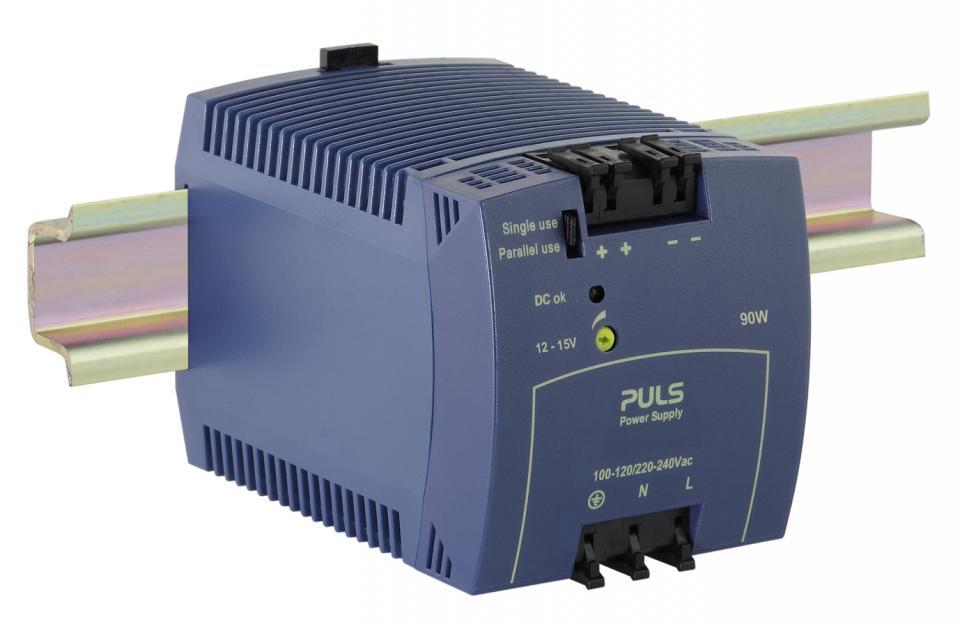

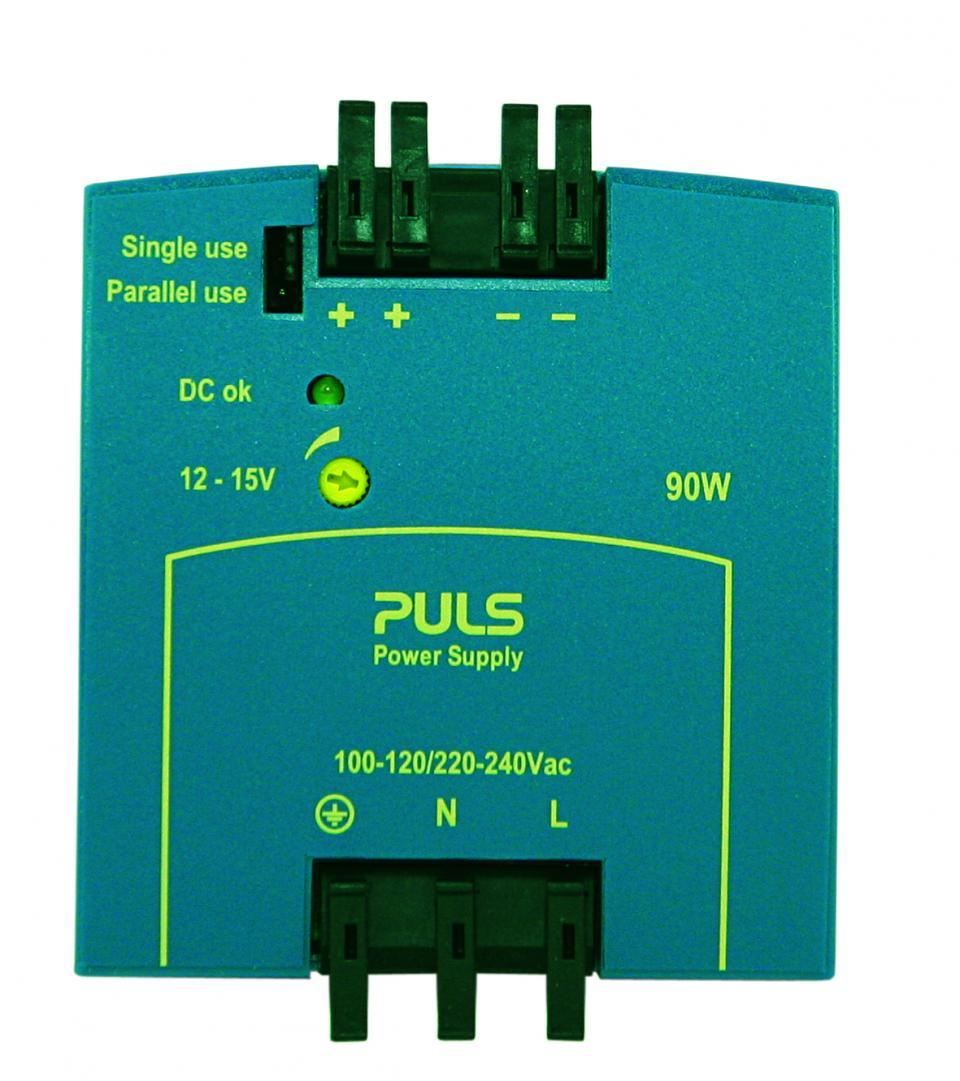

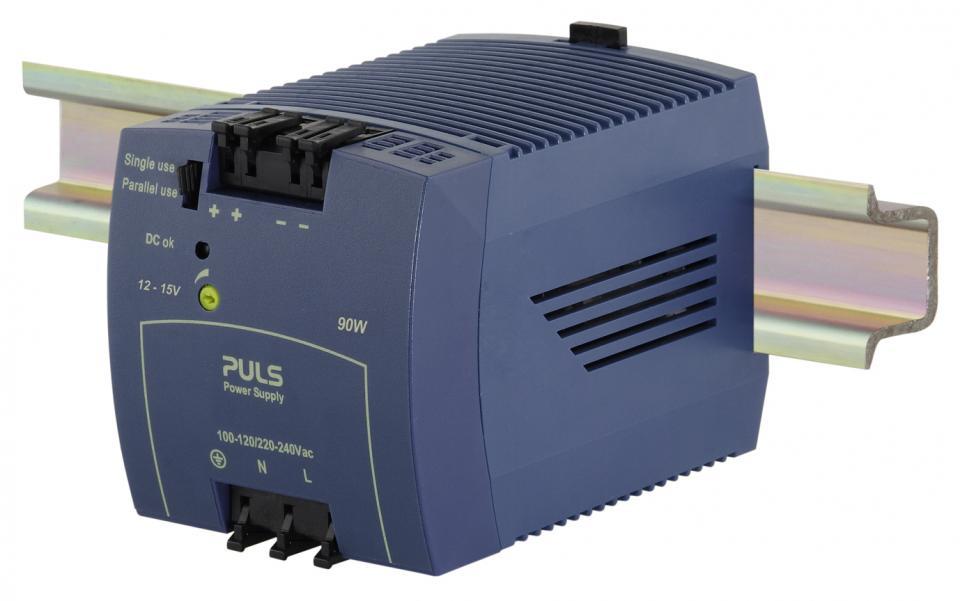

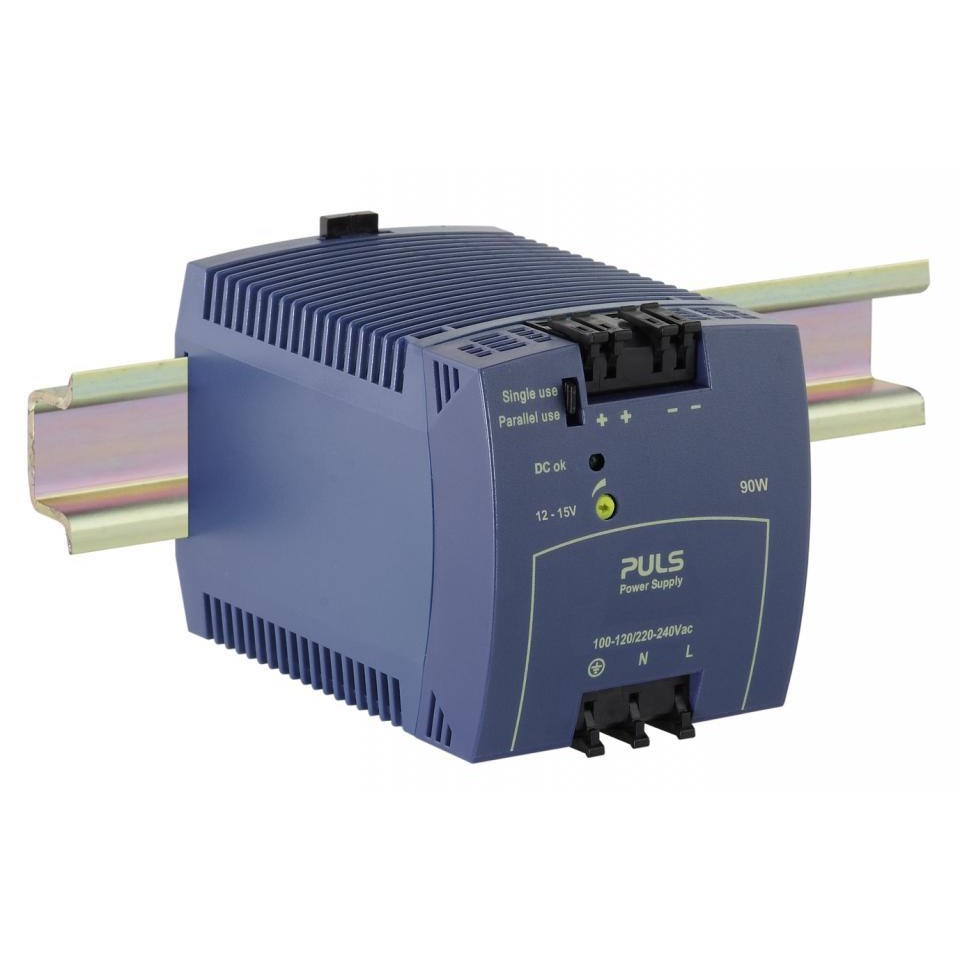

PULS DIN RAIL POWER SUPPLY 1 PHASE 12VDC 7.5A 90W ML100.102

Product Code: ML100.102

This product features an auto-select input for both 115V and 230V power. It has a high efficiency rating of up to 88.5%. The device can be adjusted to parallel mode, allowing for load sharing. It provides full output power in temperatures ranging from -10 to +60 degrees Celsius. The quick-connect spring-clamp terminals make installation easy and convenient.

Technical Specifications

AC Input Type Auto-select
Conformal Coating No
Country of Origin China / Czech Republic
Derating 2.5 W/°C
Derating Temperature (°C) > +60
E Classification E-CS01
Efficiency 88.50%
External Input Fuse Recommendation B-10 A / C-6 A
Input Inrush Current (A) 22 / 37
Input Inrush Current Limitation NTC
Input Voltage Range AC (V) 100-120, 200-240
Input Voltage Range DC (V) 110-300
Integrated Decoupling Function No
Maximum Ripple and Noise Voltage (mVpp) 50
Minimum Input Voltage DC (V) 290
Output Current Range (A) 7.5 - 6
Output Power (W) 90
Output Voltage (V) 12-15
Power Factor 0.55
Special Application Hazardous location, Marine
Use In Crosslinking Yes
Brand PULS
Connection Type Spring clamps
Customs Tariff Number 85044083
Degree of Protection IP20
Dimensions (mm) 73W x 75H x 103D
Family MiniLine
Mounting Type DIN Rail
Power Loss (W) 11.7
Range MiniLine
Rated Current (A) 7.5
Series ML series
Standards and Approvals Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IEC 60950 CB Scheme, Marine DNV, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months) 36
Weight (g) 360
