AC Input Type	Auto-select
Conformal Coating	No
Country of Origin	China / Czech Republic
Derating	2.5 W/°C
Derating Temperature (°C)	> +60
E Classification	E-CS01
Efficiency	90.00%
External Input Fuse Recommendation	B-10 A / C-6 A
Input Inrush Current (A)	22 / 37
Input Inrush Current Limitation	NTC
Input Voltage Range AC (V)	100-120, 200-240
Input Voltage Range DC (V)	110-300
Integrated Decoupling Function	No
Maximum Ripple and Noise Voltage (mVpp)	50
Minimum Input Voltage DC (V)	290
Output Current Range (A)	4.2 - 3.6
Output Power (W)	100
Output Voltage (V)	24-28
Power Factor	0.55
Special Application	Hazardous location, Marine
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Spring clamps
Customs Tariff Number	85044083
Degree of Protection	IP20
Dimensions (mm)	73W x 75H x 103D
Family	MiniLine
Mounting Type	DIN Rail
Power Loss (W)	11.4
Range	MiniLine
Rated Current (A)	4.2
Series	ML series
Standards and Approvals	Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IEC 60950 CB Scheme, IEC 61010-2-201 CB Scheme, Marine DNV, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	360

Industrial Power Supplies

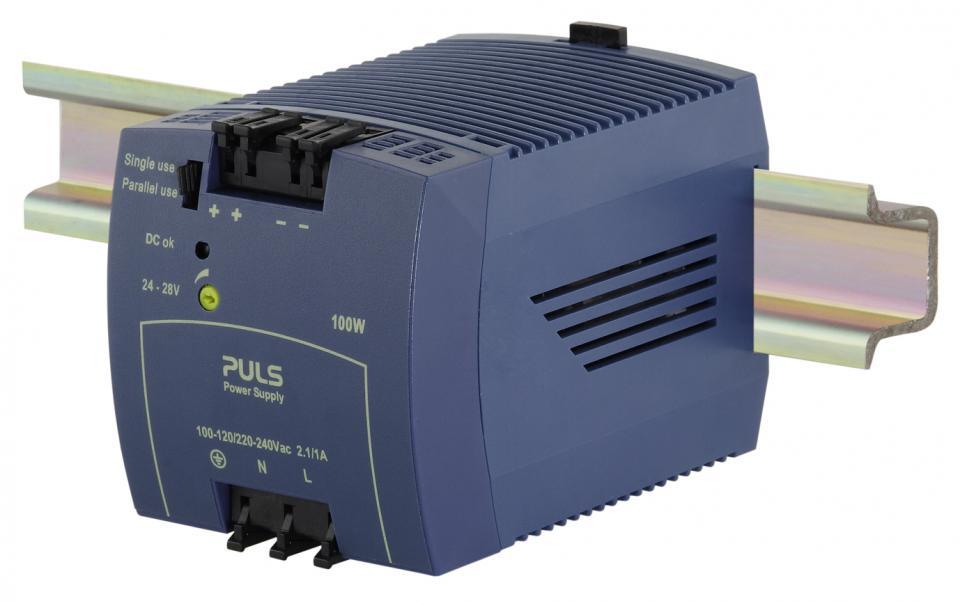

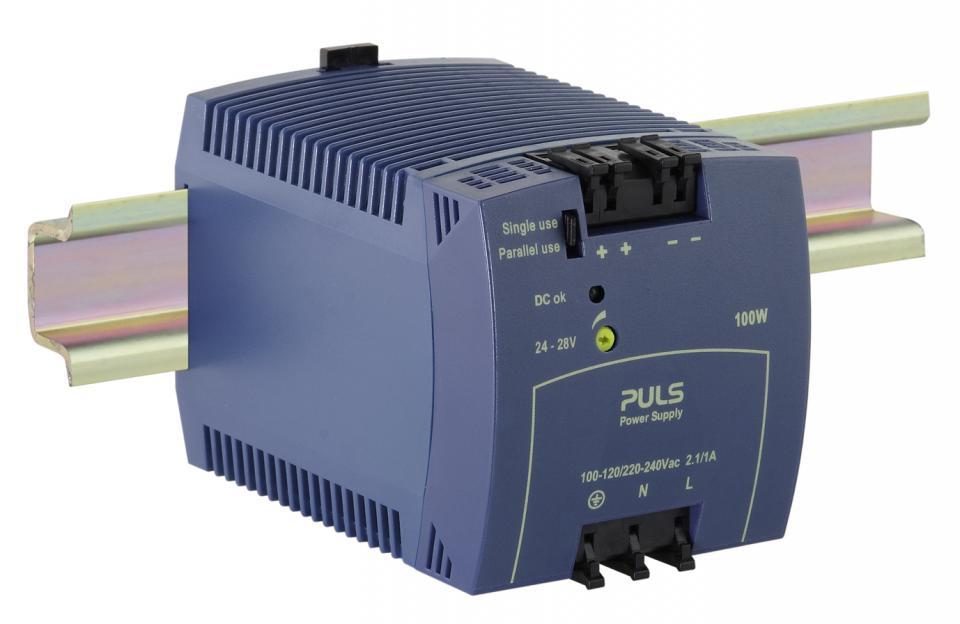

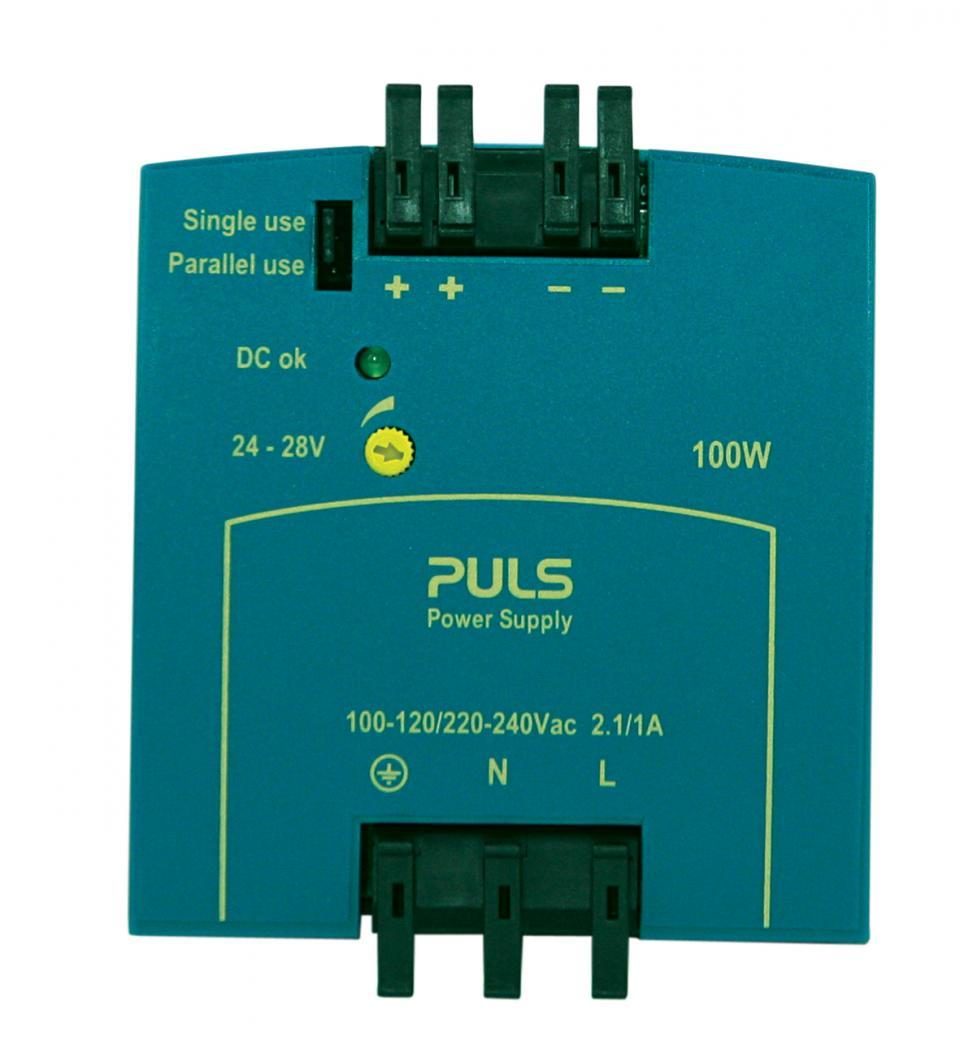

PULS DIN RAIL POWER SUPPLY 1 PHASE 24VDC 4.2A 100W ML100.100
