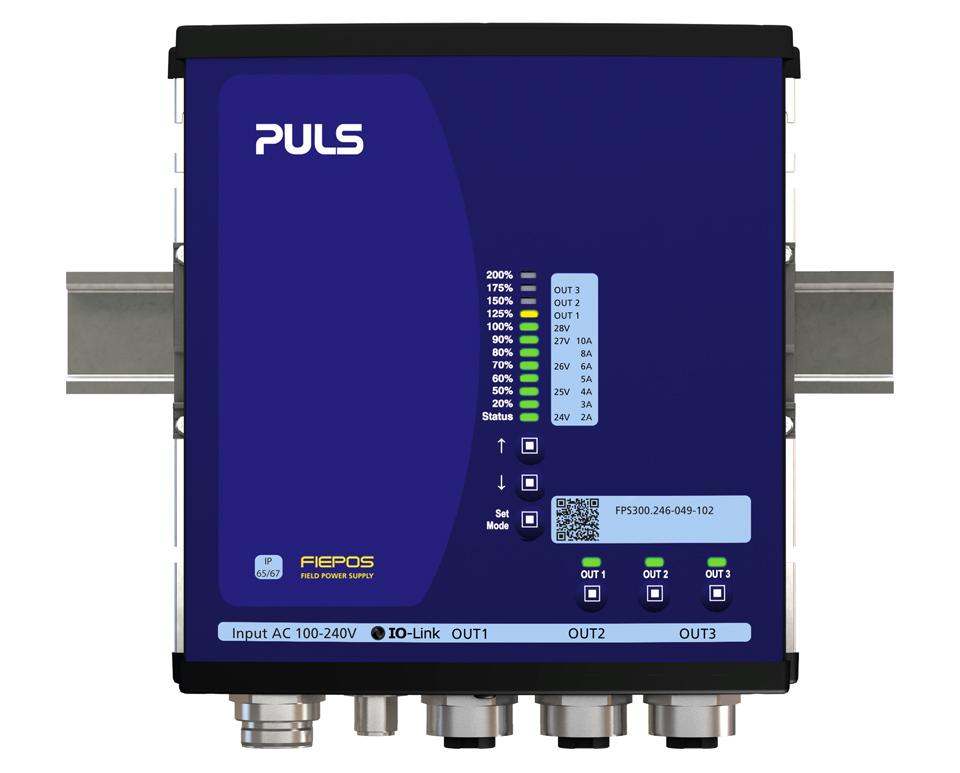

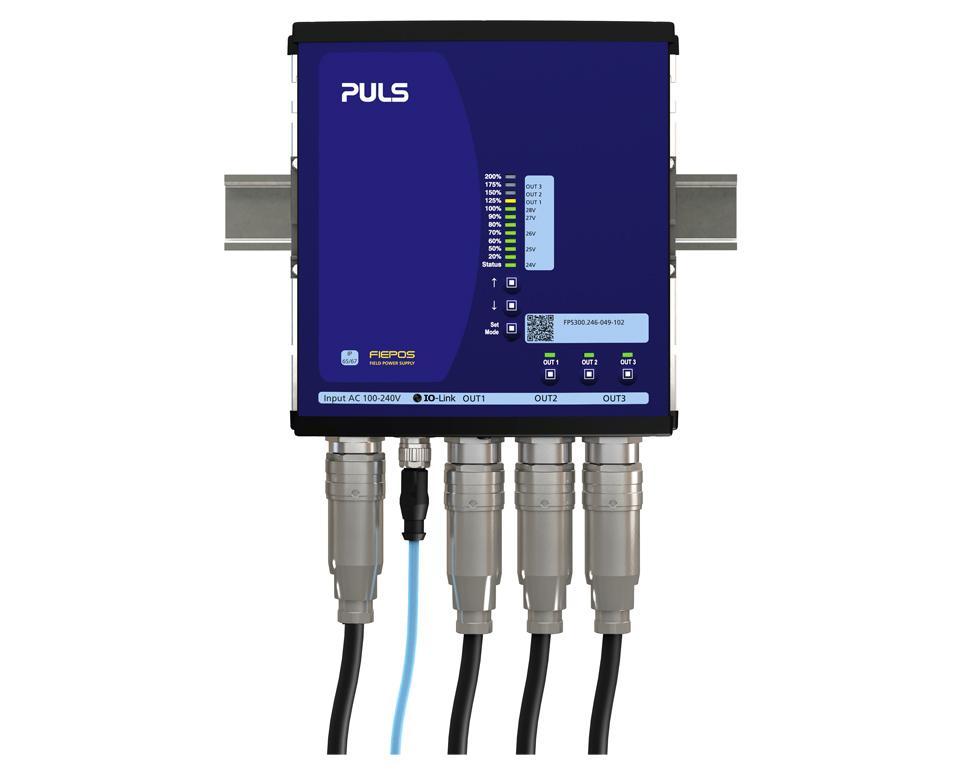

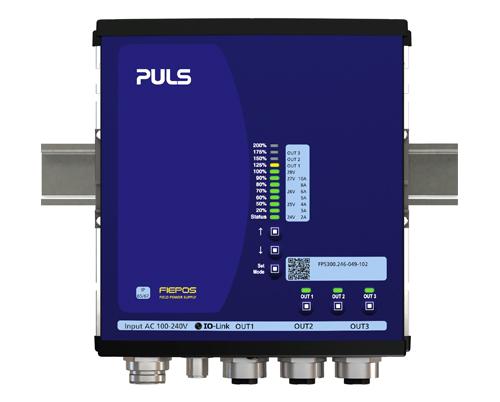

PULS POWER SUPPLY, 1-PHASE, 24V, 300W, FPS300.246-049-102

The product features an IP 65/67 degree of protection, ensuring its durability and resistance to dust and water. It has a peak power of 600 W for 5 seconds, providing reliable performance. The AC input range is wide, from 100-240V, allowing for flexibility in different power sources. With three switchable outputs, the product can accommodateVarious devices. Notably, the outputs are shared between actors and sensors on one channel, streamlining the setup process. The product boasts high efficiency, with a full load efficiency of 95.7% and excellent partial load efficiencies. For easy installation, the product supports DIN rail mounting with the option "D." The output is connected to PE (PELV), ensuring safety during operation. However, aVersion without connection to PE is available upon request. The product is equipped with large output capacitors for enhanced performance. Additionally, it is not potted, which allows for easier maintenance and customization if needed. Users will appreciate the negligible low input inrush current surge of this product. It can deliver full power even in high temperatures up to +45°C. Furthermore, the product features IO-Link technology for seamless communication between devices. The input connector is 7/8" with 3 pins while the output connector consists of three 7/8" connectors with 4 pins each.
