Current Consumption (mA)	10 or less
Emitting Element	Red LED (modulated)
Output Operation	Dark-ON
Sensing Range (mm)	150
Standard Sensing Object	ø1 mm opaque object
Brand	PANASONIC
Ambient Temperature Range (°C)	–25 to +55
Degree of Protection	IP67
Material	Body- Polyethylene terephthalate, Lens- Polyalylate
Operating State/Fault Indication	Operation - Orange LED
Outputs	NPN open-collector transistor
Pollution Degree	3
Rated Supply Voltage DC (V)	12 - 24
Type	Standard, Thru-beam front sensing
Weight (kg)	0.02

Position Switches & Sensors

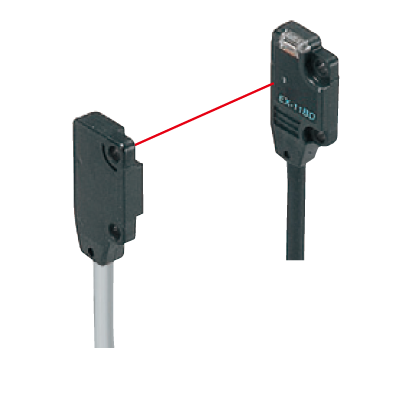

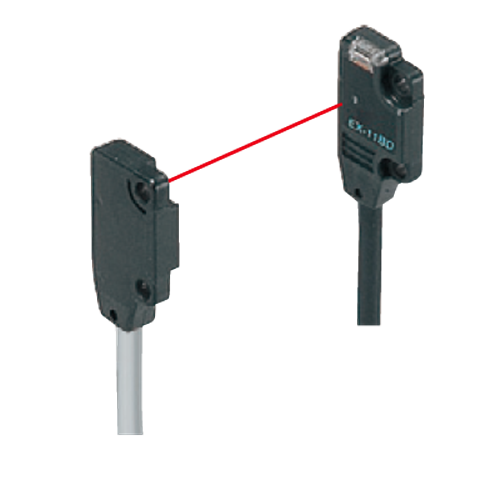

PANASONIC ULTRA-SLIM PHOTOELECTRIC SENSOR, NPN EX-11B
