Product Code: E65L24T250X

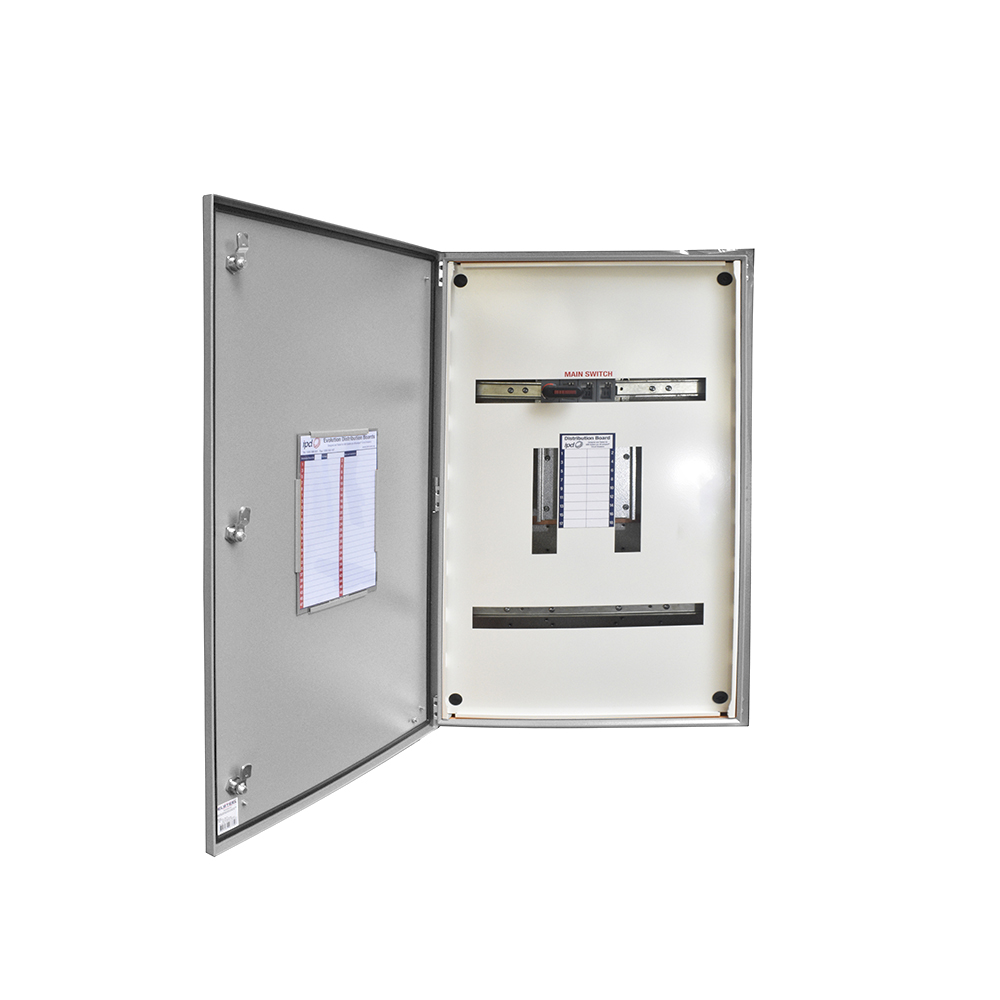

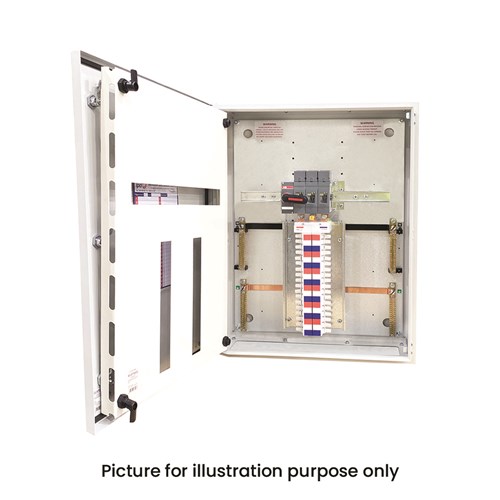

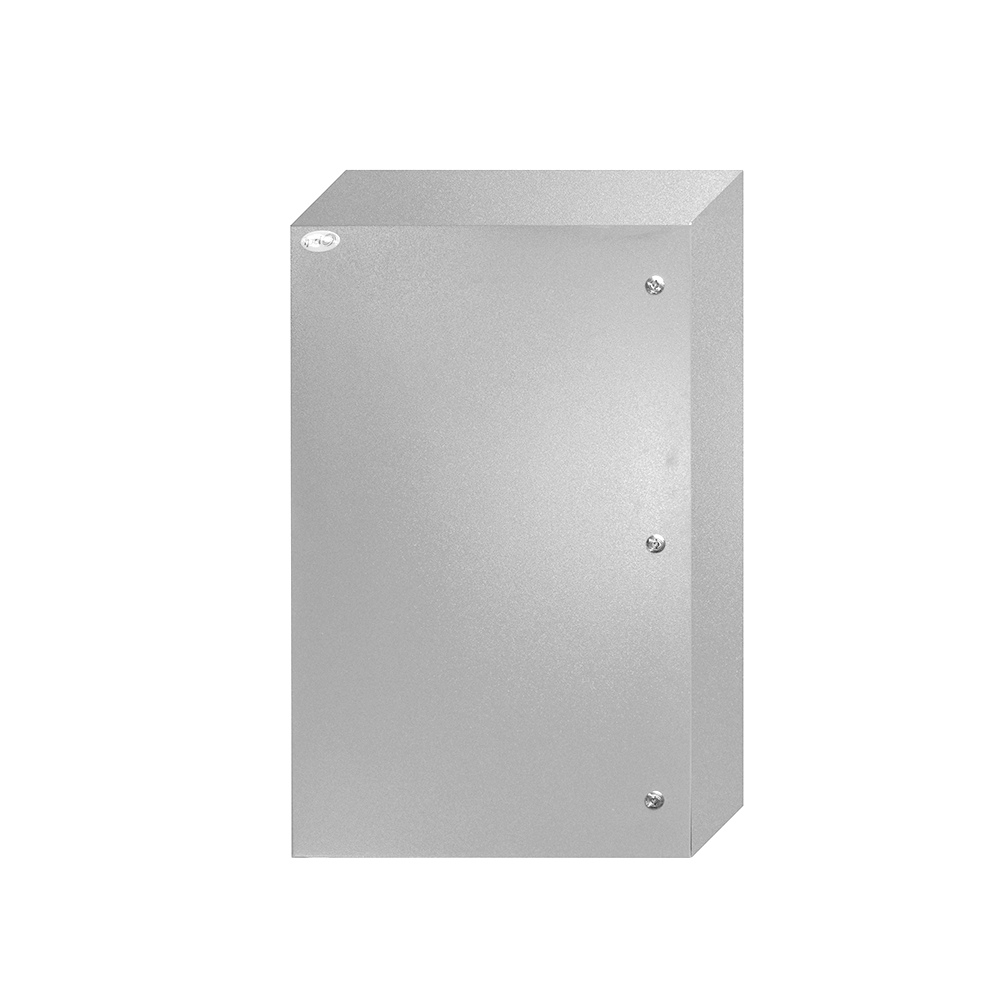

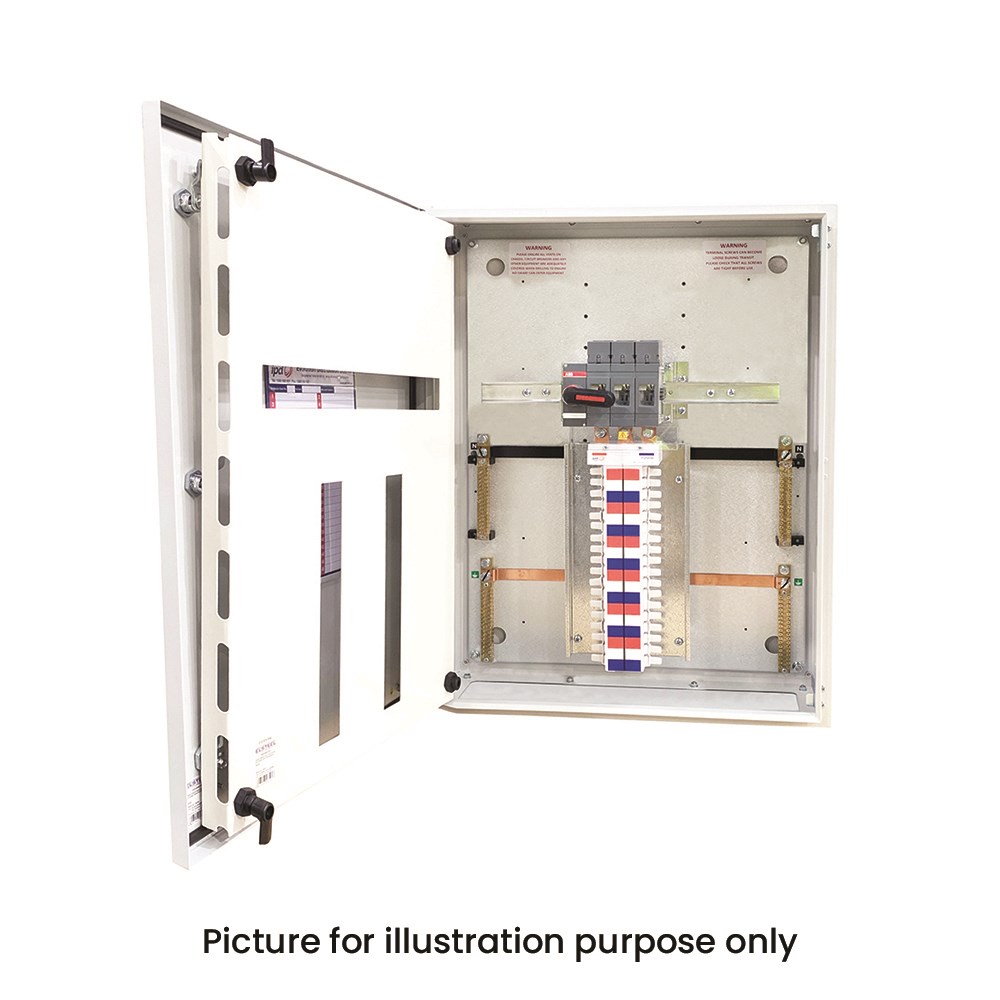

Evolution distribution boards are specifically designed for the System pro M S200 range protection devices. These boards are constructed using 1.6mm Mild Steel in RAL7035 grey colour. They have an IP65 rating, making them suitable for outdoor applications. The enclosure of the distribution board includes features such as OT250 LBS, Full Gland Plate Top & Bottom, 24P encapsulated chassis, bottom auxiliary rail, metal locks, and a hinged escutcheon. The dimensions of the board are 1000H x 600W x 200Dmm.

Brand	IPD
Colour	Grey, RAL7035
Degree of Protection	IP65
Dimensions (mm)	1000H x 600W x 200D
DIN Accessory Spaces	15
Material	Mild Steel
No. of Locks	3
No. of Poles	24P
Rated Current of Main Switch (A)	250
Type of Main Switch	LBS

Evolution Distribution Boards

IPD E65L24T250X DB 24P IP65 GREY OT250 LBS + B.AUX. RAIL

Product Code: E65L24T250X

Technical Specifications
