ABB CURRENT TRANSFORMER CT12/600

Product Code: CT12/600

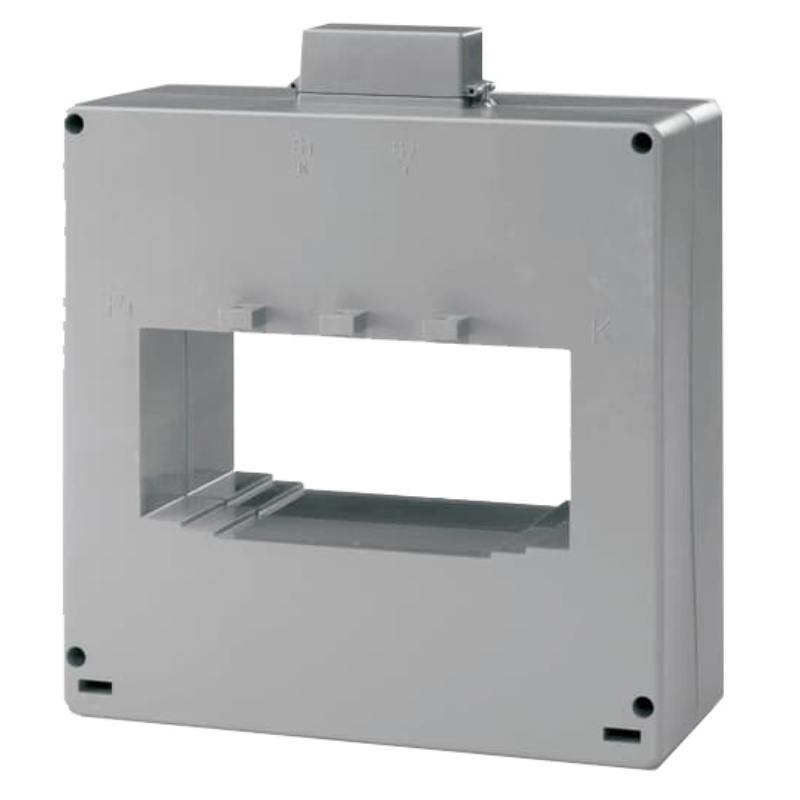

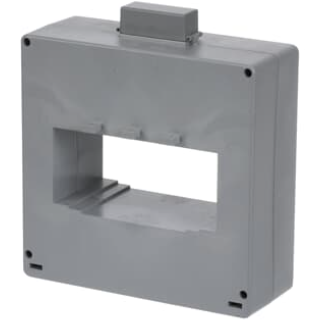

Solid-core current transformer with current ratio 600/5 and accuarcy class 0.5 at 10VA. Test voltage 3kV at 50Hz/1min and insulation class E (120 °C). Equipped with a sealable terminals cover for secondary terminals. Housing material: self-extinguishing thermoplastic resin V0. Dimensions of CT12 type are 196Hx180Wx68.5Dmm with cable diameter opening of 2x50mm and bar through 80x50mm, 100x50mm and 125x50mm. Can be adapted to all common mounting systems: primary cable, primary busbar, DIN rail and wall-mounting.

Technical Specifications

Cable Use Cable and Horizontal bar
Brand ABB
Busbar Cross Section (mm²) 125 X 50
Cable Cross Section (mm²) 2 X 50
Mounting Type Through Primary
Operational Temperature Range (°C) -5 to +50
Accuracy ±0,5%
Apparent Power Output (VA) 10
CT Ratio 600/5
Current Limit Function Full Scale 5
Current Rating (A) 600
Net Weight (kg) 1.6
Power Loss (W) 40
Pulse Output Rate 97
Rated Frequency (Hz) 50 / 60
Rated Primary Current - I?? (A) 600
Rated Secondary Current - I?? (A) 5
Dimensions (mm) 180 X 196 X 68.5
Degree of Protection IP30
