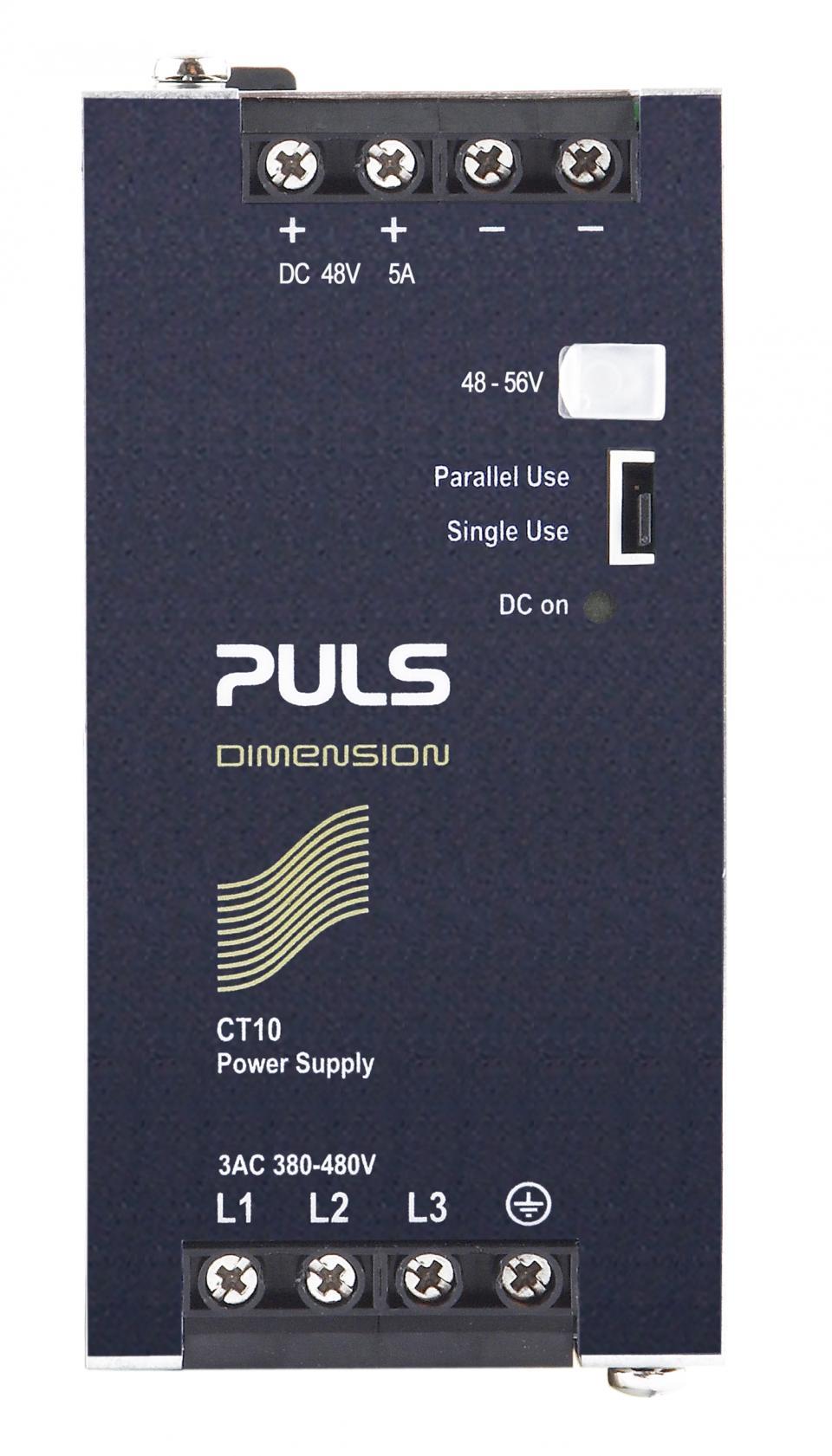

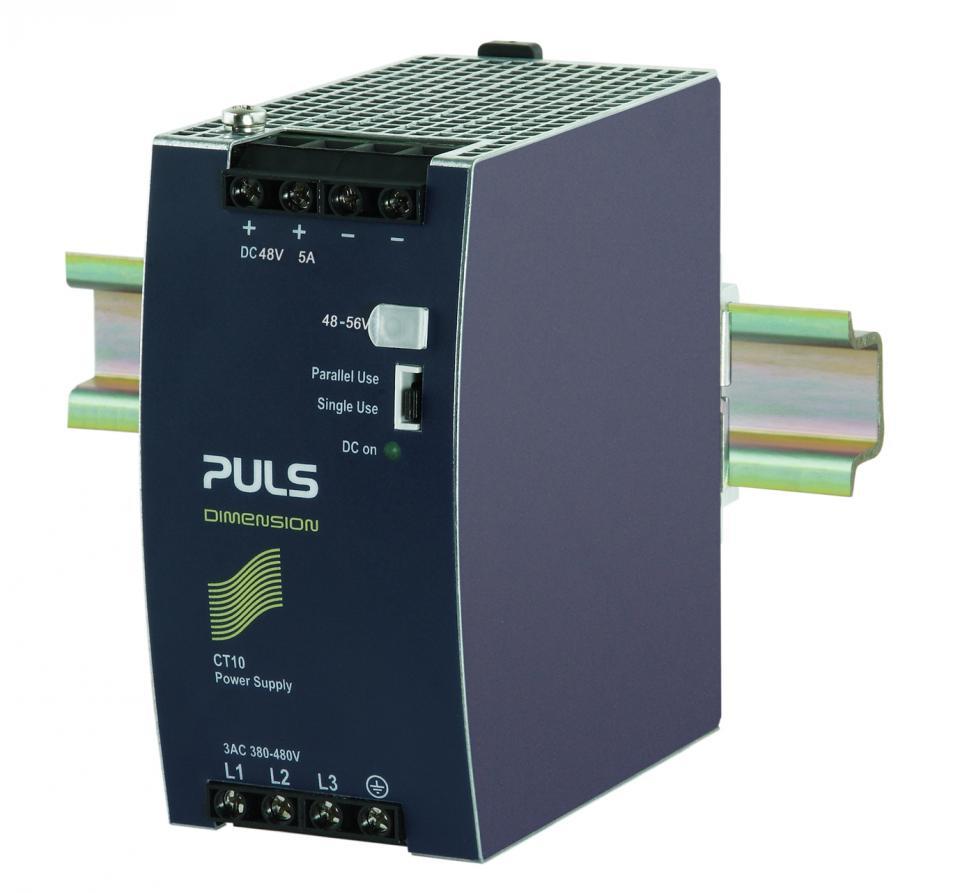

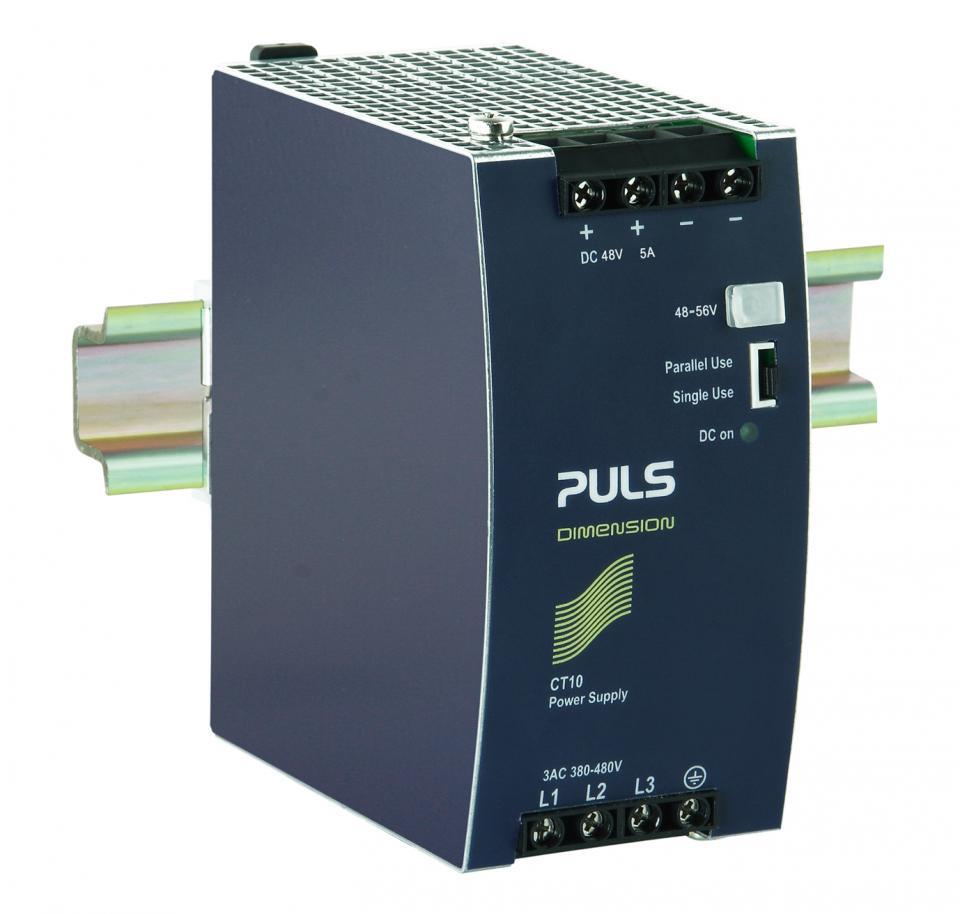

PULS DIN RAIL POWER SUPPLY 3 PHASE 48VDC 5A 240W CT10.481

Product Code: CT10.481

The product is a power supply with a wide-range input of 380-480V and passive power factor correction (PFC). It has an efficiency rating of up to 92.9% and negligibly low input inrush current. The power supply can continuously use 20% power reserves at temperatures up to +45°C. It provides full output power within a temperature range of -25 to +60°C. Additionally, it can be adjusted to parallel mode for load sharing.

Technical Specifications

AC Input Type Wide-range
Conformal Coating No
Country of Origin China / Czech Republic
Derating 6 W/°C
Derating Temperature (°C) > +60
E Classification E-CS01
Efficiency 92.80%
External Input Fuse Recommendation B-6 A / C-3 A
Harmonic Correction Active
Input Inrush Current (A) 4 / 4
Input Inrush Current Limitation Active
Input Voltage Range AC (V) 380-480
Integrated Decoupling Function No
Maximum Ripple and Noise Voltage (mVpp) 100
Output Current Range (A) 5 - 4.3
Output Power (W) 240
Output Voltage (V) 48-56
Power Factor 0.53
Power Reserve Type Power Boost
Power Reserves 20%
Special Application Hazardous location, Marine
Use In Crosslinking Yes
Brand PULS
Connection Type Screw terminals
Customs Tariff Number 85044083
Degree of Protection IP20
Dimensions (mm) 62W x 124H x 117D
Family DIMENSION
Mounting Type DIN Rail
Operational Temperature Range (°C) -25 to 70
Power Loss (W) 18.6
Range DIMENSION
Rated Current (A) 5
Series C series
Standards and Approvals Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IEC 60950 CB Scheme, Korea Certification, Marine ABS, Marine DNV, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months) 36
Weight (g) 750
