AC Input Type	Auto-select
Conformal Coating	No
Country of Origin	China / Czech Republic
Derating	3 W/°C
Derating Temperature (°C)	> +60
E Classification	E-CS01
Efficiency	90.20%
External Input Fuse Recommendation	B-10 A / C-6 A
Input Inrush Current (A)	3 / 3
Input Inrush Current Limitation	Active
Input Voltage Range AC (V)	100-120, 200-240
Integrated Decoupling Function	No
Maximum Ripple and Noise Voltage (mVpp)	50
Output Current Range (A)	5 - 4.3
Output Power (W)	120
Output Voltage (V)	24-28
Power Factor	0.47
Power Reserve Type	Power Boost
Power Reserves	20%
Special Application	Hazardous location, Marine
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Screw terminals
Customs Tariff Number	85044083
Degree of Protection	IP20
Dimensions (mm)	32W x 124H x 117D
Family	DIMENSION
Mounting Type	DIN Rail
Operational Temperature Range (°C)	-25 to 70
Power Loss (W)	13.2
Range	DIMENSION
Rated Current (A)	5
Series	C series
Standards and Approvals	Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IEC 60950 CB Scheme, Marine DNV, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	500

Industrial Power Supplies

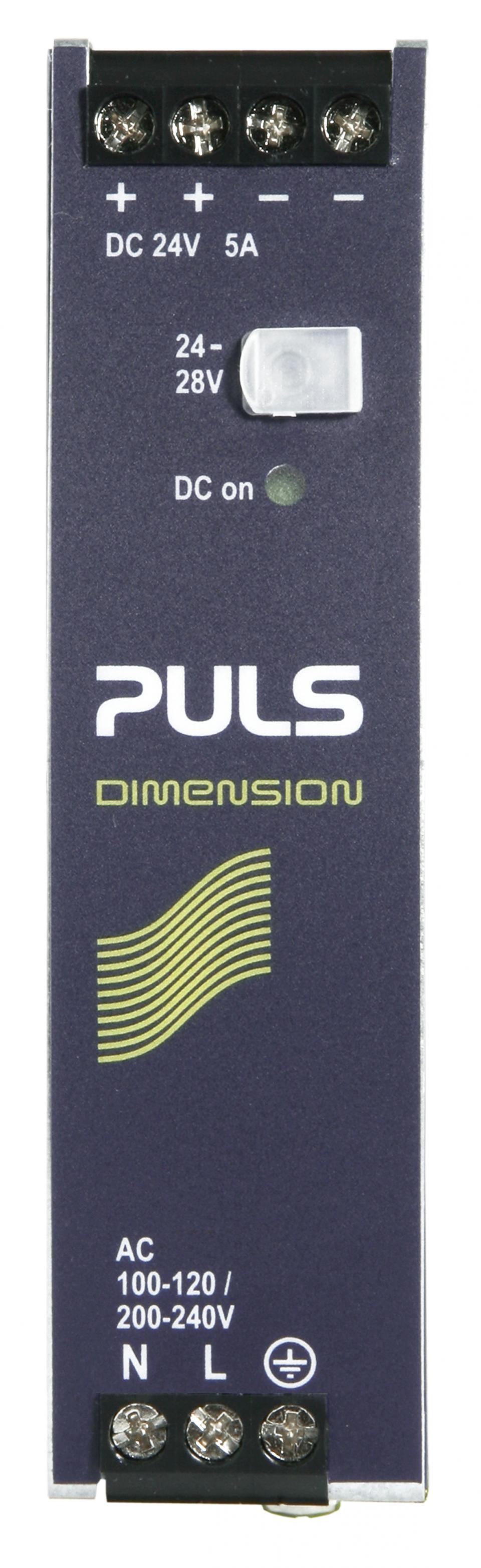

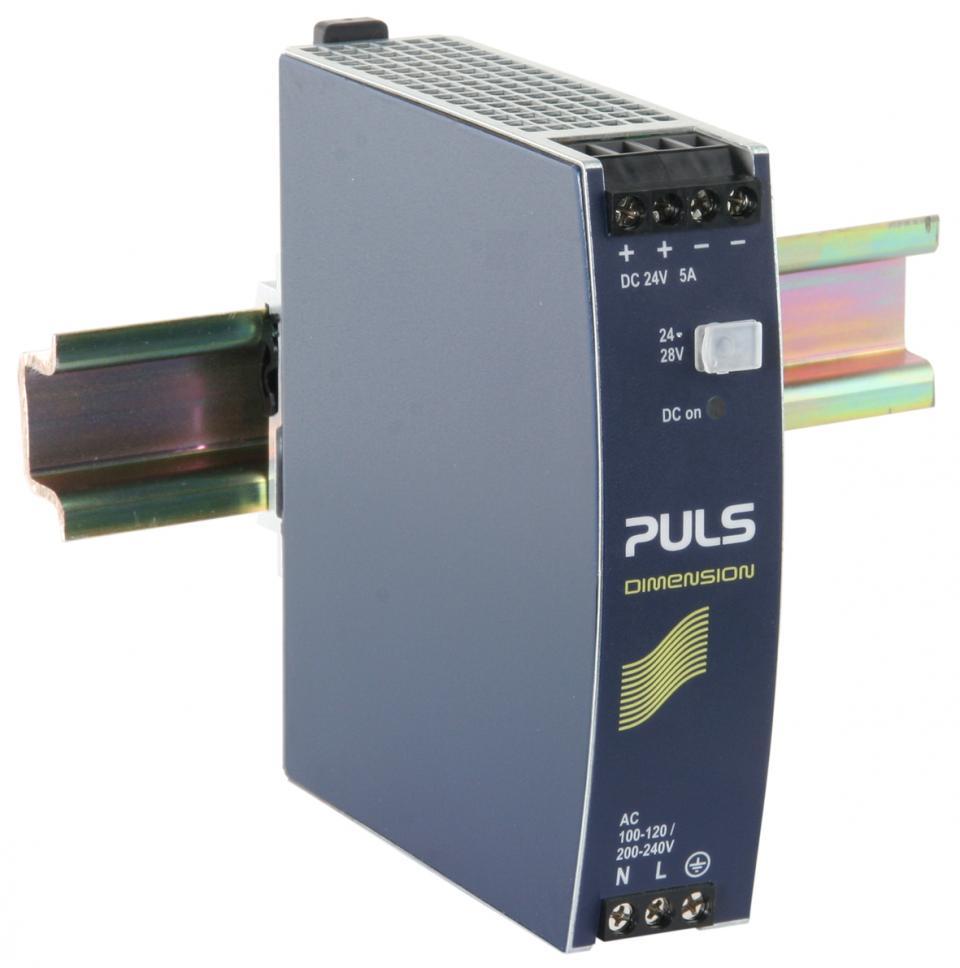

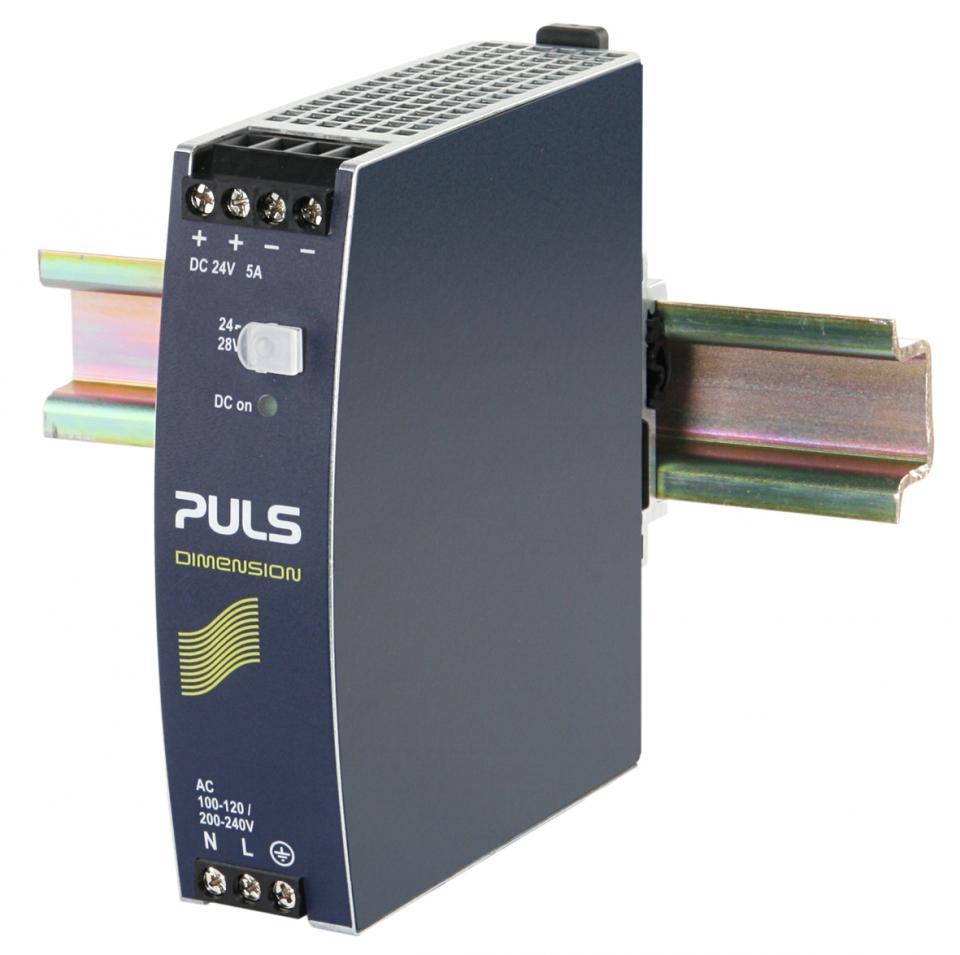

PULS POWER SUPPLY 24V DC 1 PHASE CS5.241
