AC Input Type	Wide-range
Conformal Coating	No
Country of Origin	China / Czech Republic
Derating	1.8 W/°C
Derating Temperature (°C)	> +60
E Classification	E-CS01
Efficiency	89.80%
External Input Fuse Recommendation	B-10 A / C-6 A
Input Inrush Current (A)	23 / 45
Input Inrush Current Limitation	NTC
Input Voltage Range AC (V)	100-240
Input Voltage Range DC (V)	110-300
Integrated Decoupling Function	No
Maximum Input Voltage DC (V)	300
Maximum Ripple and Noise Voltage (mVpp)	50
Minimum Input Voltage DC (V)	110
Output Current Range (A)	3.3 - 2.7
Output Power (W)	80
Output Voltage (V)	24-28
Power Factor	0.56
Special Application	Hazardous location, Marine
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Screw terminals
Customs Tariff Number	85044083
Degree of Protection	IP20
Dimensions (mm)	32W x 124H x 102D
Family	DIMENSION
Mounting Type	DIN Rail
Operational Temperature Range (°C)	-25 to 70
Power Loss (W)	9.1
Range	DIMENSION
Rated Current (A)	3.3
Series	C series
Standards and Approvals	Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IEC 60950 CB Scheme, Marine DNV, UL 508 Canada, UL 508 USA, UL 1310 NEC Class 2, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	430

Industrial Power Supplies

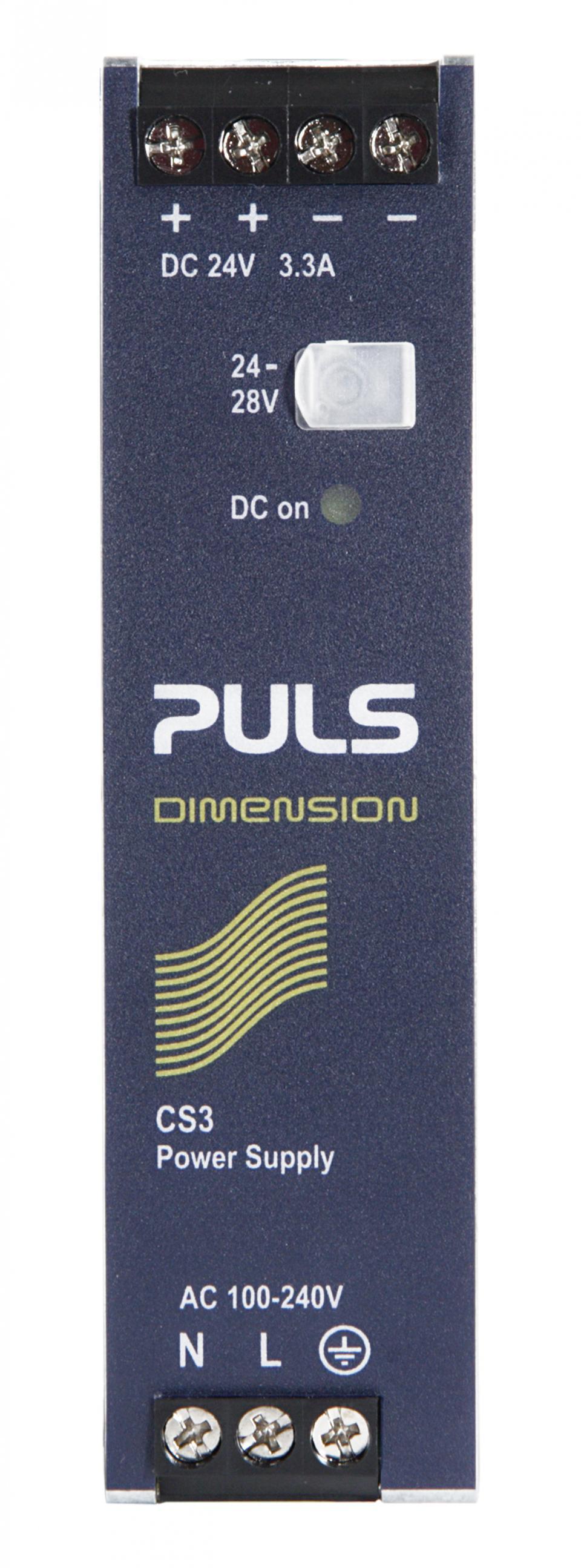

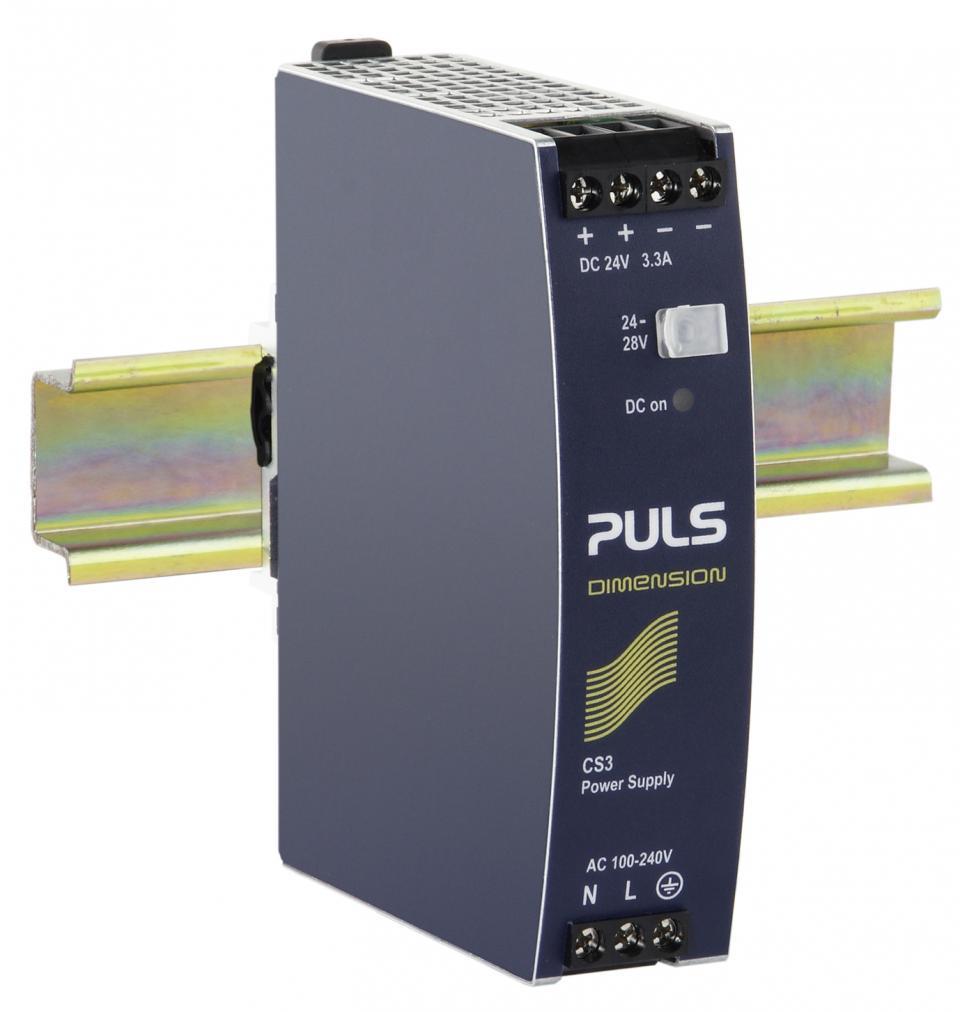

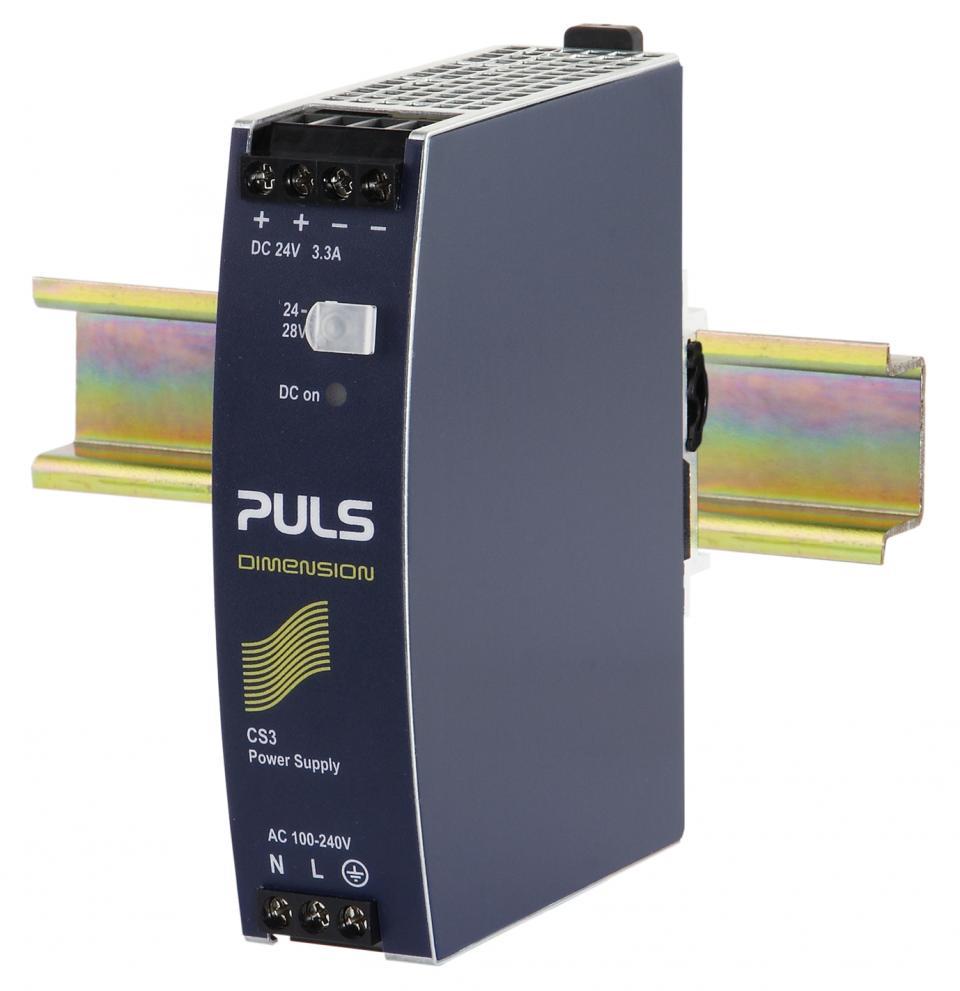

PULS DIN RAIL POWER SUPPLY 1 PHASE 24VDC 3.3A 80W CS3.241
