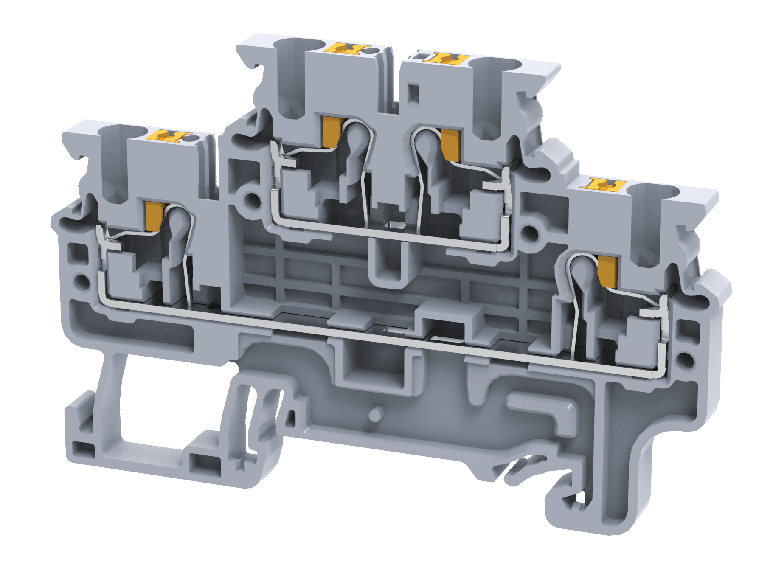

CONNECTWELL 2.5MM 2 LEVEL PUSH IN SPRING CLAMP TERMINAL BLOCK CPDL2.5 - Spring Loaded & Clamp Terminal Blocks

Product Code: CPDL2.5

DIN Rail Mounting	DIN 35/DIN 35-15 Rail
Wire Entry	Top
Brand	CONNECTWELL
Colour	Grey
Conductor Cross Section (mm²)	0.2 (min), 2.5 (max)
Degree of Protection	IP66
Height (mm)	49.55
Housing Material	Polyamide
Length (mm)	72.7
Material	Polyamide (Housing)
Mounting Type	DIN rail
Pack Quantity	50
Pollution Degree	3
Rated Current (A)	20
Rated Voltage (V)	600
Surge Voltage (kV)	8
Width (mm)	5
Wire Stripping Length (mm)	10
