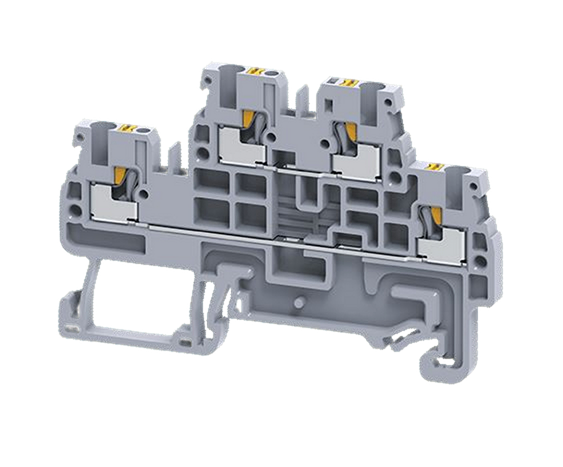

CONNECTWELL 1.5MM 2 LEVEL PUSH IN SPRING CLAMP TERMINAL BLOCK CPDL1.5 - Spring Loaded & Clamp Terminal Blocks

Product Code: CPDL1.5

DIN Rail Mounting	DIN 35/DIN 35-15 Rail
Wire Entry	Top
Brand	CONNECTWELL
Colour	Grey
Conductor Cross Section (mm²)	0.2 (min), 1.5 (max)
Degree of Protection	IP66
Height (mm)	45.3
Housing Material	Polyamide
Length (mm)	67.2
Material	Polyamide (Housing)
Mounting Type	DIN rail
Pack Quantity	50
Pollution Degree	3
Rated Current (A)	15
Rated Voltage (V)	500
Surge Voltage (kV)	8
Width (mm)	3.5
Wire Stripping Length (mm)	8
