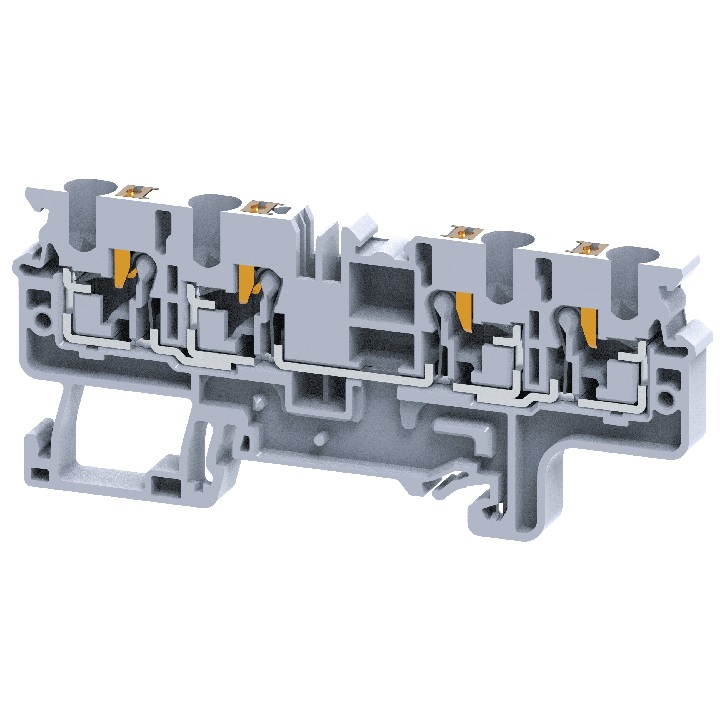

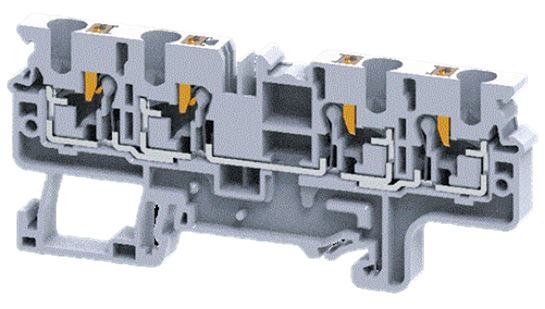

CONNECTWELL 4 MM FEED THROUGH 4 WIRE PUSH IN TERMINAL BLOCK CP4/4 - Spring Loaded & Clamp Terminal Blocks

Product Code: CP4/4

DIN Rail Mounting	DIN 35/DIN 35-15 Rail
Operator Type	8 KV
Wire Entry	Top
Brand	CONNECTWELL
Conductor Cross Section (mm²)	0.2 (min), 4 (max)
Degree of Protection	IP66
Height (mm)	38.25
Housing Material	Polyamide
Length (mm)	86.2
Pack Quantity	50
Rated Current (A)	30
Rated Voltage (V)	600
Surge Voltage (kV)	3
Terminal Type	Push-in
Width (mm)	6
Wire Stripping Length (mm)	11
