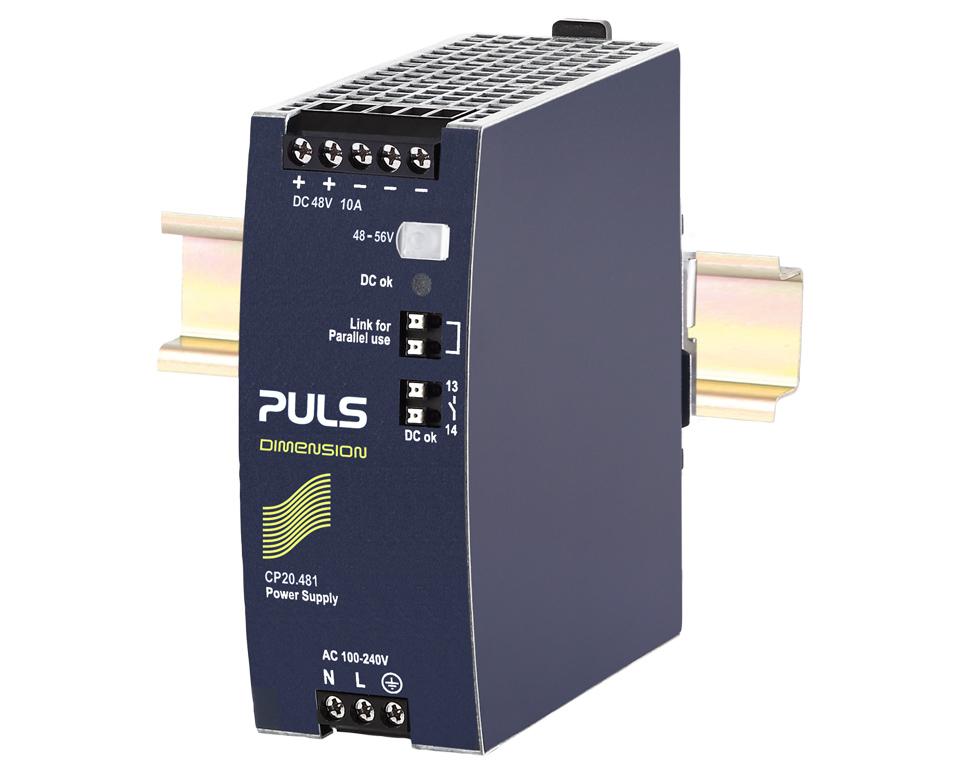

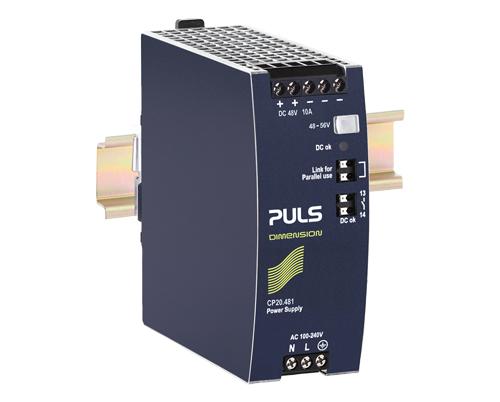

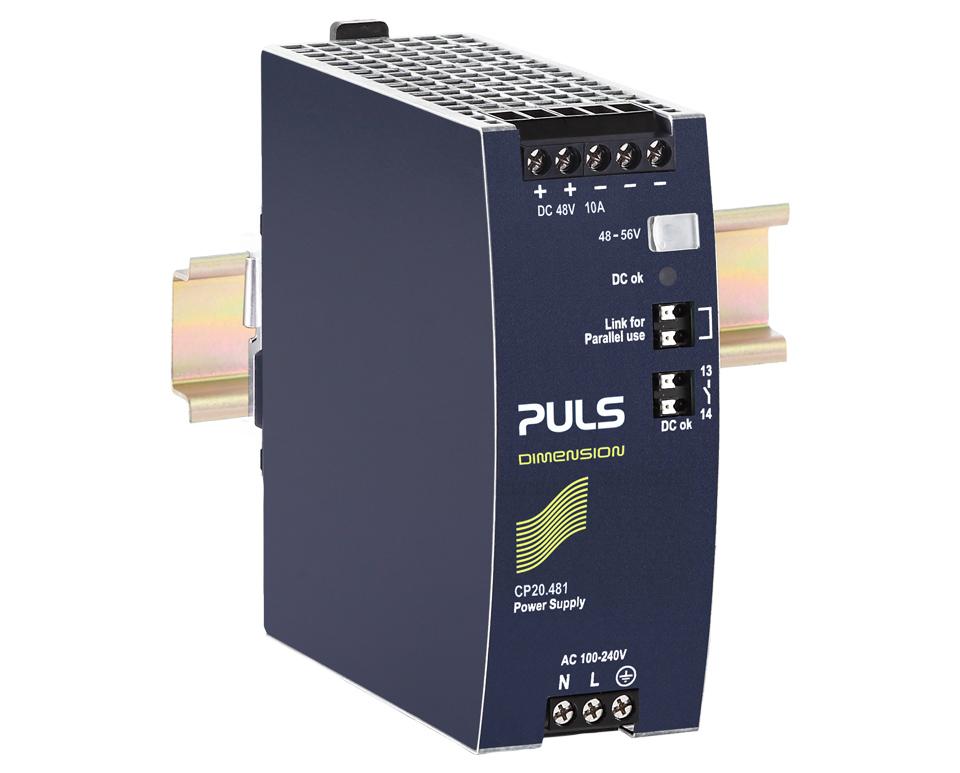

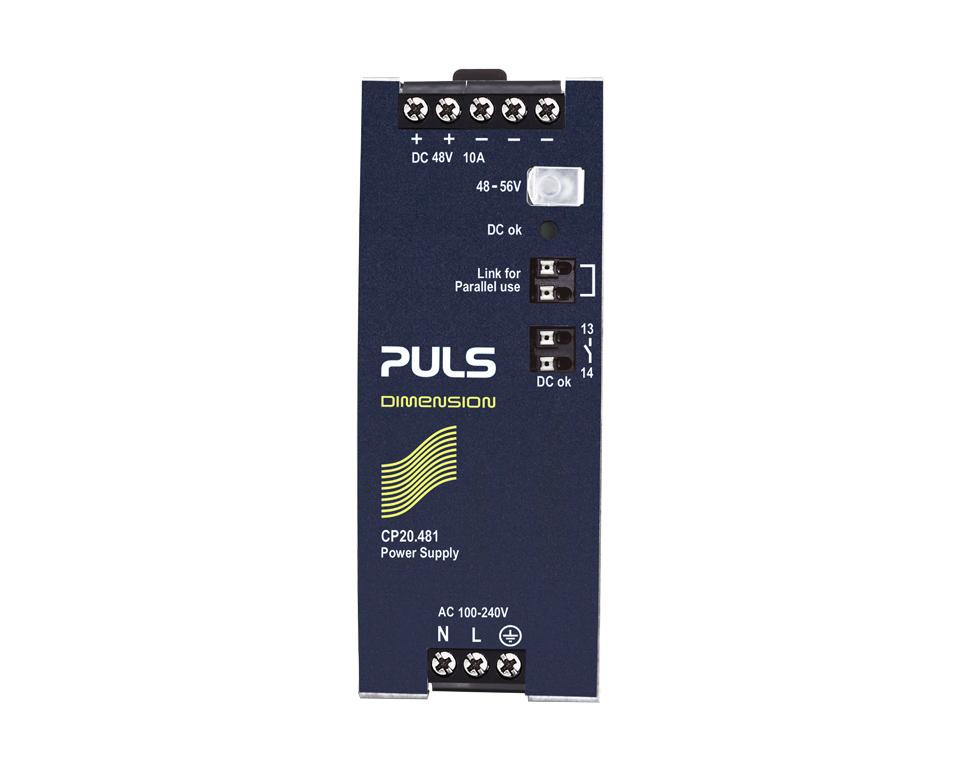

PULS DIN RAIL POWER SUPPLY 1 PHASE 48V DC CP20.481

Product Code: CP20.481

  • AC 100-240V Wide-range input Width only 48mm Efficiency up to 96.3% Excellent partial load efficiency 20% Output power reserves Safe HiccupPLUS overload mode Easy fuse breaking - 3 times nominal current for 12 ms Active power factor correction (PFC) Minimal inrush current surge Full power between -25°C and +60°C DC-OK relay contact Current sharing feature for parallel use
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Material Metal
Mounting Type DIN Rail
Operational Temperature Range (°C) -25 to 70
Conformal Coating No
Brand PULS
Product Type Single-Phase
Series C series
Range DIMENSION
Customs Tariff Number 85044083
Country of Origin China / Czech Republic
E Classification E-CS01
Warranty Period (Months) 36
AC Input Type Wide-range
Connection Type Screw terminals
DC-OK Signal Yes
Derating 6.4 W/°C
Derating Temperature (°C) +45 to +60
Efficiency 96.30%
External Input Fuse Recommendation B-10 A / C-10 A
Family DIMENSION
Harmonic Correction Active
Hold Up Time (ms) 32
Input Inrush Current (A) 4.5 / 5.5
Input Inrush Current Limitation Active
Input Voltage Range AC (V) 100-240
Input Voltage Range DC (V) 110-150
Integrated Decoupling Function No
Maximum Input Voltage DC (V) 150
Maximum Ripple and Noise Voltage (mVpp) 50
Minimum Input Voltage DC (V) 110
Output Current Range (A) 10 - 8.6
Output Power (W) 480
Output Voltage (V) 48-56
Power Factor 0.98
Power Loss (W) 18.4
Power Reserve Type Power Boost
Power Reserves 20%
Rated Current (A) 10
Special Application Hazardous location
Dimensions (mm) 48W x 124H x 127D
Use In Crosslinking Yes
Weight (g) 830
Degree of Protection IP20
Standards and Approvals ATEX EN 60079, Class I Div. 2 Canada - UL, Class I Div. 2 USA - UL, EU Declaration of Conformity, IECEx IEC 60079, IEC 61010-2-201 CB Scheme, IEC 62368-1 CB Scheme, Korea Certification, UL 61010-2-201 Canada, UL 61010-2-201 USA, UK Declaration of Conformity

Description

AC 100-240V wide-range input, 48mm width, up to 96.3% efficiency, excellent partial load efficiency, 20% output power reserves, safe HiccupPLUS overload mode, easy fuse breaking with 3 times nominal current for 12 ms, active power factor correction (PFC), minimal inrush current surge. Works at full power between -25°C and +60°C. Includes DC-OK relay contact and current sharing feature for parallel use.
