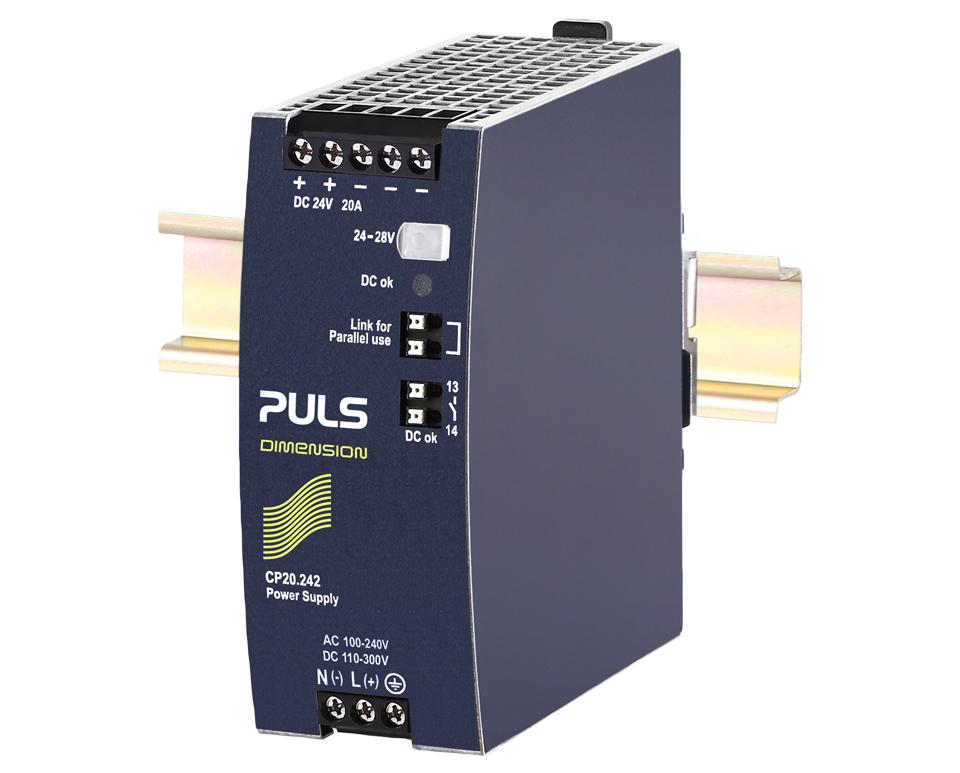

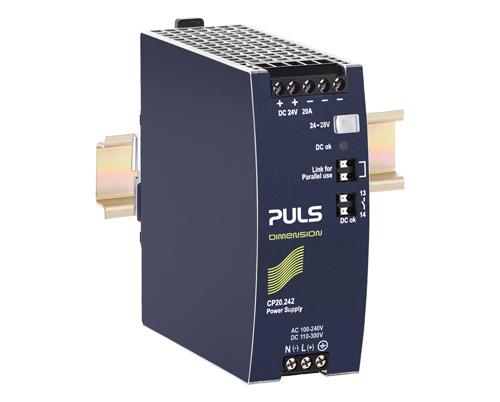

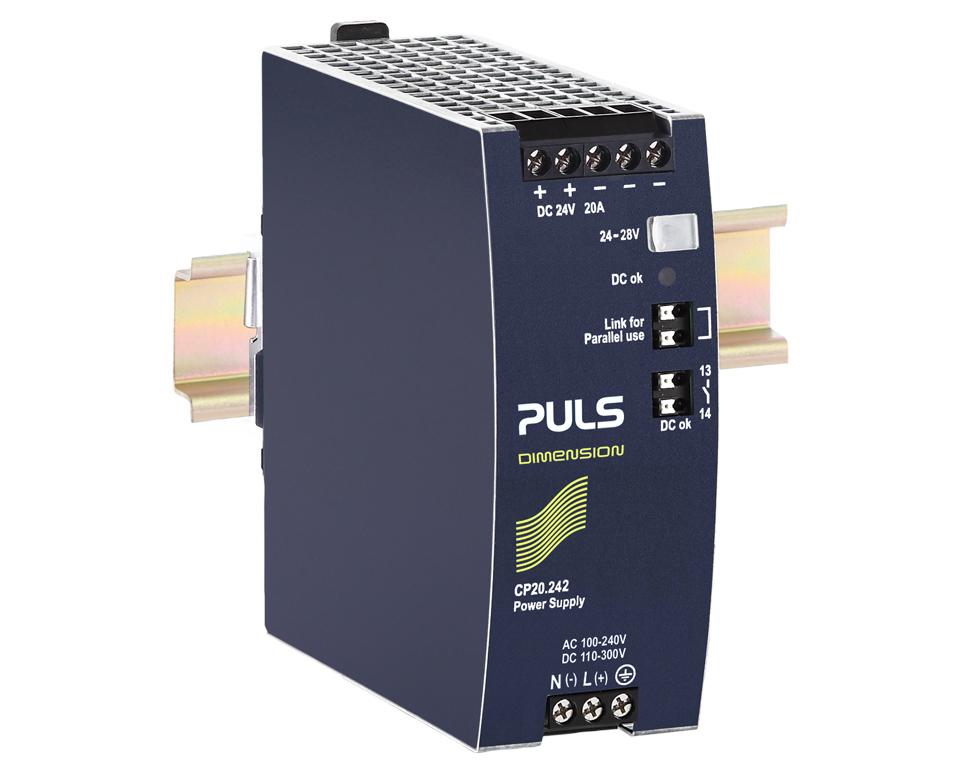

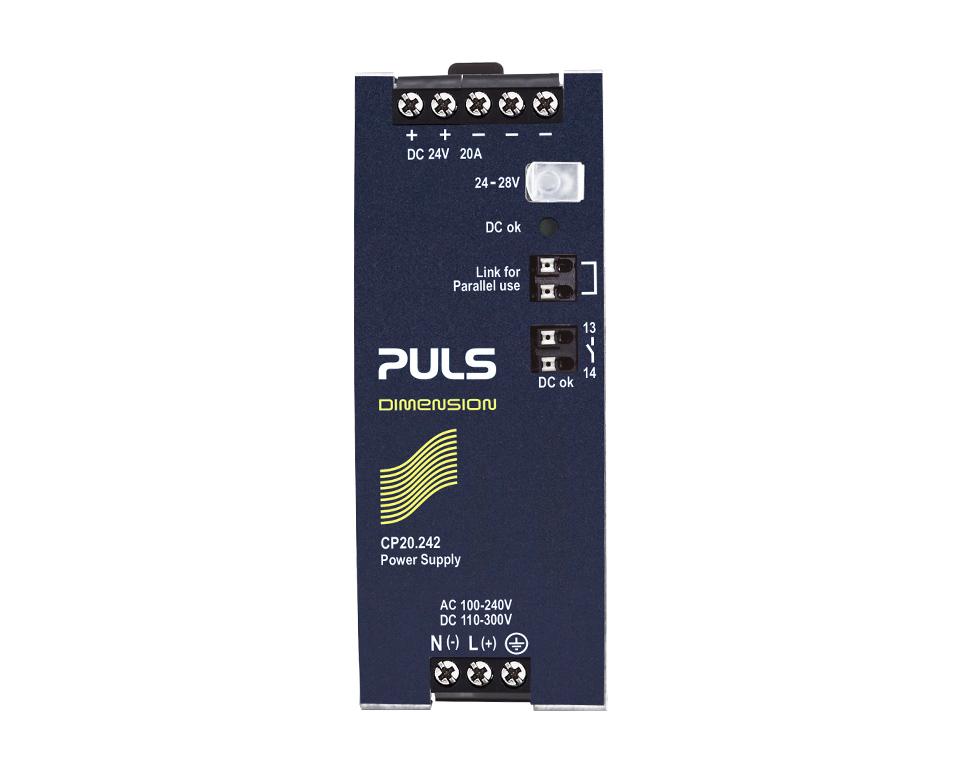

PULS DIN RAIL POWER SUPPLY 1 PHASE 24V DC CP20.242

Product Code: CP20.242

AC 100-240V wide-range input, 48mm width, and up to 95.6% efficiency. Excellent partial load efficiency with 20% output power reserves. Easy fuse breaking with 3 times nominal current for 12 ms. Safe Hiccup PLUS overload mode and active power factor correction (PFC). Minimal inrush current surge and full power between -25°C and +60°C. Includes DC-OK relay contact and current sharing feature for parallel use. Enhanced DC input for improved performance.

Technical Specifications

AC Input Type Wide-range
Conformal Coating No
Country of Origin China / Czech Republic
DC-OK Signal Yes
Derating 6.4 W/°C
Derating Temperature (°C) +45 to +60
E Classification E-CS01
Efficiency 95.60%
External Input Fuse Recommendation B-10 A / C-10 A
Harmonic Correction PFC
Hold Up Time (ms) 32
Input Inrush Current (A) 4.5 / 5.5
Input Inrush Current Limitation Active
Input Voltage Range AC (V) 100-240
Input Voltage Range DC (V) 110-300
Integrated Decoupling Function No
Maximum Input Voltage DC (V) 300
Maximum Ripple and Noise Voltage (mVpp) 50
Minimum Input Voltage DC (V) 110
Output Current Range (A) 20 - 17.1
Output Power (W) 480
Output Voltage (V) 24-28
Power Factor 0.98
Power Reserve Type Power Boost
Power Reserves 20%
Special Application Semiconductor
Use In Crosslinking Yes
Brand PULS
Connection Type Screw terminals
Customs Tariff Number 85044083
Degree of Protection IP20
Dimensions (mm) 48W x 124H x 127D
Family DIMENSION
Material Metal
Mounting Type DIN Rail
Operational Temperature Range (°C) -25 to 70
Power Loss (W) 22.1
Range DIMENSION
Rated Current (A) 20
Series C series
Standards and Approvals EU Declaration of Conformity, IEC 61010-2-201 CB Scheme, IEC 62368-1 CB Scheme, Korea Certification, SEMI F47, UL 61010-2-201 Canada, UL 61010-2-201 USA, UK Declaration of Conformity
Warranty Period (Months) 36
Weight (g) 830
