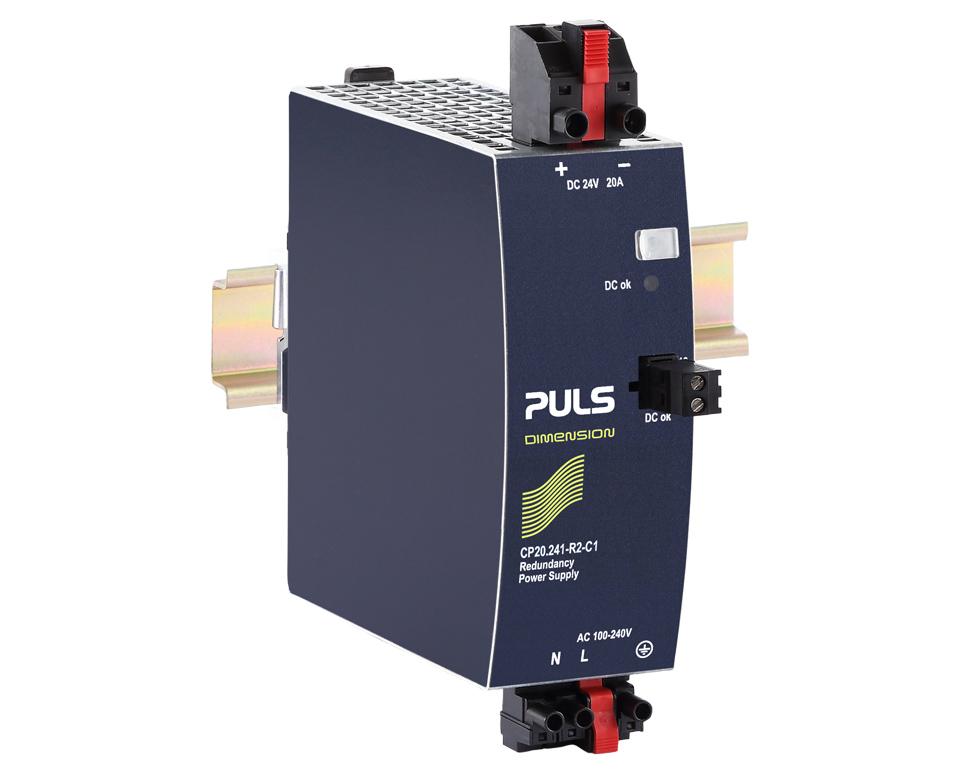

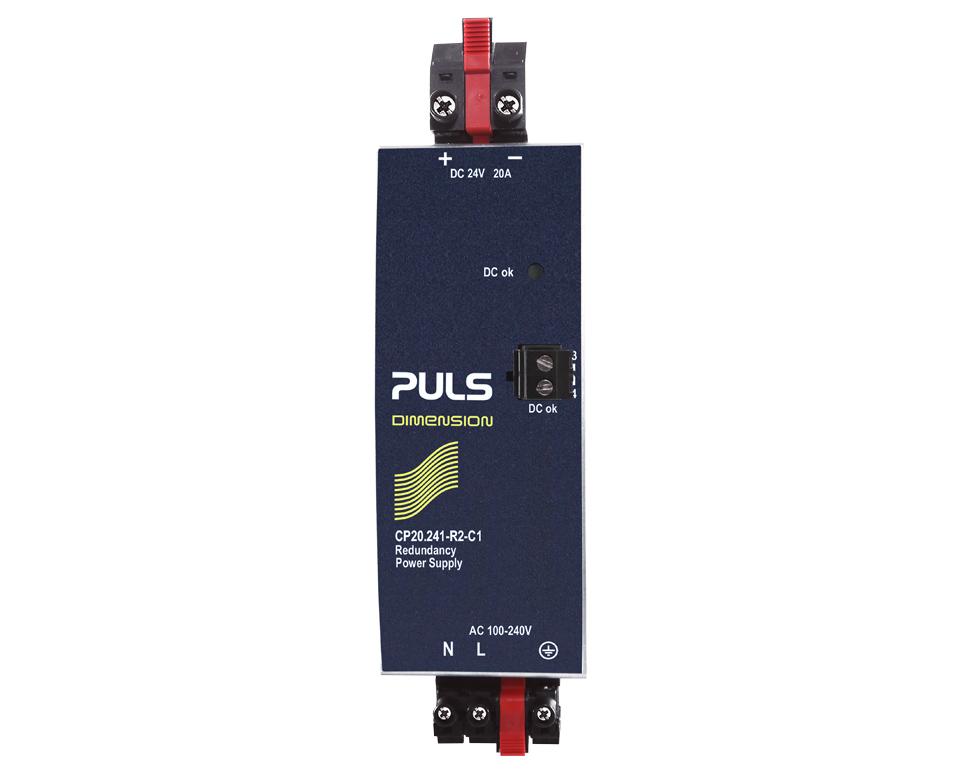

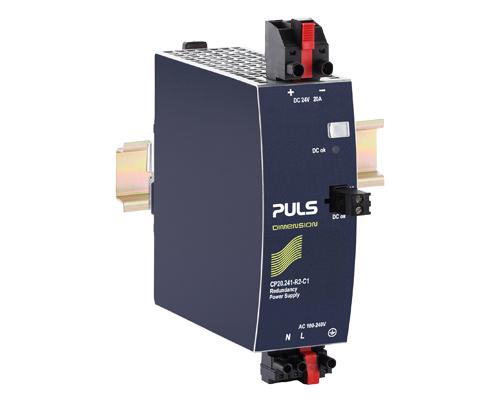

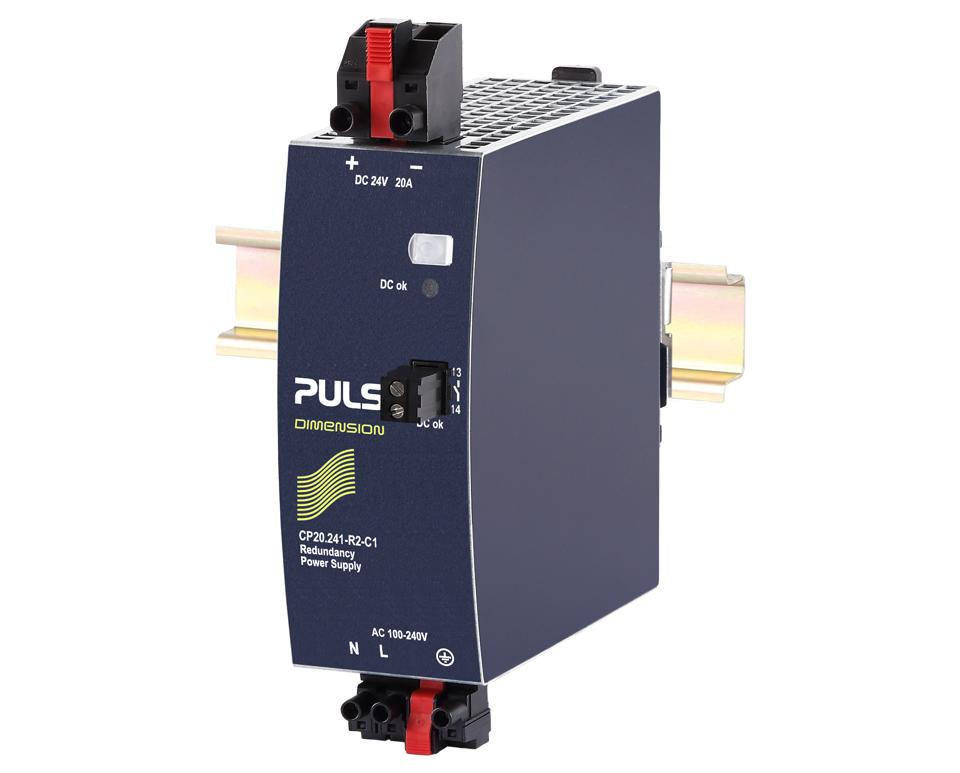

PULS POWER SUPPLY, INTEGRATED DECOUPLING CP20.241-R2-C1

Product Code: CP20.241-R2-C1

AC 100-240V wide-range input, 48mm width. Built-in decoupling MOSFET for 1+1 and n+1 redundancy. Efficiency up to 95.2%. 20% output power reserves. Safe HiccupPLUS overload mode. Easy fuse breaking - 3 times nominal current for 12 ms. Active power factor correction (PFC). Minimal inrush current surge. Full power between -25°C and +60°C. DC-OK relay contact. Current sharing feature included. Conformal coated for added protection.

Technical Specifications

AC Input Type Wide-range
Conformal Coating Yes
Country of Origin Czech Republic
DC-OK Signal Yes
Derating 12 W/°C
Derating Temperature (°C) > +60
E Classification E-CS01
Efficiency 95.20%
External Input Fuse Recommendation B-10 A / C-10 A
Harmonic Correction Active
Input Inrush Current (A) 10 / 4.5
Input Inrush Current Limitation Active
Input Voltage Range AC (V) 100-240
Input Voltage Range DC (V) 110-150
Integrated Decoupling Function Yes
Maximum Input Voltage DC (V) 150
Maximum Ripple and Noise Voltage (mVpp) 50
Minimum Input Voltage DC (V) 110
Minimum Output Current (A) 20
Output Power (W) 480
Output Voltage (V) 24
Power Factor 0.95
Power Reserve Type Power Boost
Power Reserves 20%
Special Application Hazardous location, Semiconductor
Use In Crosslinking Yes
Brand PULS
Connection Type Plug connector
Customs Tariff Number 85044083
Degree of Protection IP20
Dimensions (mm) 48W x 124H x 127D
Family DIMENSION
Mounting Type DIN Rail
Operational Temperature Range (°C) -40 to 70
Power Loss (W) 24.2
Range DIMENSION
Rated Current (A) 20
Series C series
Standards and Approvals ATEX EN 60079, Class I Div. 2 Canada - UL, Class I Div. 2 USA - UL, EU Declaration of Conformity, IECEx IEC 60079, IEC 61010-2-201 CB Scheme, IEC 62368-1 CB Scheme, SEMI F47, UL 61010-2-201 Canada, UL 61010-2-201 USA, UK Declaration of Conformity
Warranty Period (Months) 36
Weight (g) 850
