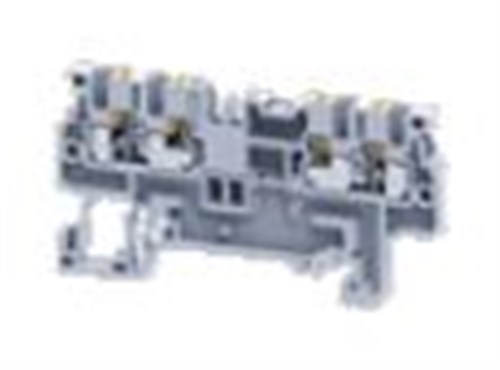

CONNECTWELL 1.5 MM FEED THROUGH 4 WIRE PUSH IN TERMINAL BLOCK CP1.5/4 - Spring Loaded & Clamp Terminal Blocks

Product Code: CP1.5/4

DIN Rail Mounting	DIN 35/DIN 35-15 Rail
Operator Type	8 KV
Wire Entry	Top
Brand	CONNECTWELL
Conductor Cross Section (mm²)	0.2 (min), 1.5 (max)
Degree of Protection	IP66
Height (mm)	34.1
Housing Material	Polyamide
Length (mm)	66.9
Pack Quantity	100
Rated Current (A)	15
Rated Voltage (V)	600
Surge Voltage (kV)	3
Terminal Type	Push-in
Width (mm)	3.5
Wire Stripping Length (mm)	8
