Electrical Time Switches, Timers & Control Relays

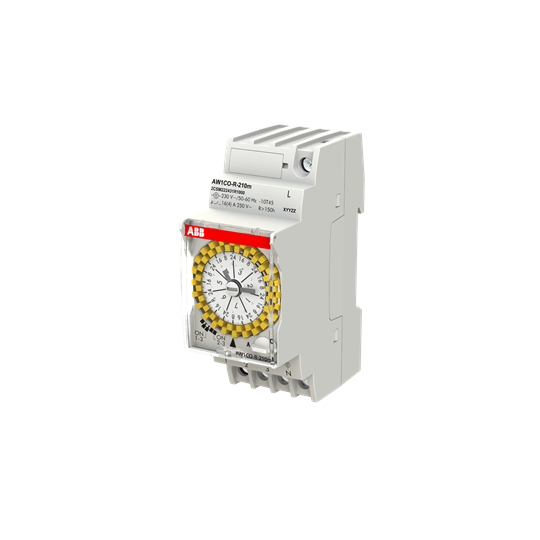

ABB ANALOG TIME SWITCH 7DAY 2 MODULES WITH RESERVE AW1CO-R-210M

Product Code: AW1CO-R-210M

The Analog Time Switch is a modular DIN rail mount device with battery backup. It has a weekly functioning capability of 210 minutes and a minimum time of functioning for 150 hours. The power reserve allows for a 1N/O contact with 16A capacity and a power consumption of 0.5W. It operates on a supply voltage of 230VAC and has 48 pins with a width of 17.5mm per module.

Technical Specifications

Brand ABB
Accuracy Operating: ± 1 sec/24h, Switching: ± 35 min
Battery Backup 150 hrs
Channels 1
Contacts 1CO
Degree of Protection IP20
Function Weekly
Maximum Switching Current (A) 16(4)
Maximum Switching Voltage AC (V) 250
Minimum Switching Time (s) 12600
Mounting Type DIN Rail
No. of Modules - Width 17.5 mm 2
No. of Switching Intervals 48 pins
Operational Temperature Range (°C) -10 to +50
Pollution Degree 2
Power Consumption (W) ≤0.5
Rated Current (A) 16
Rated Frequency (Hz) 50/60
Rated Supply Voltage AC/DC (V) 230V AC
Storage Temperature (°C) -20 to +70
Terminal Type Captive Screw
Universal Supply Voltage AC (V) 230
