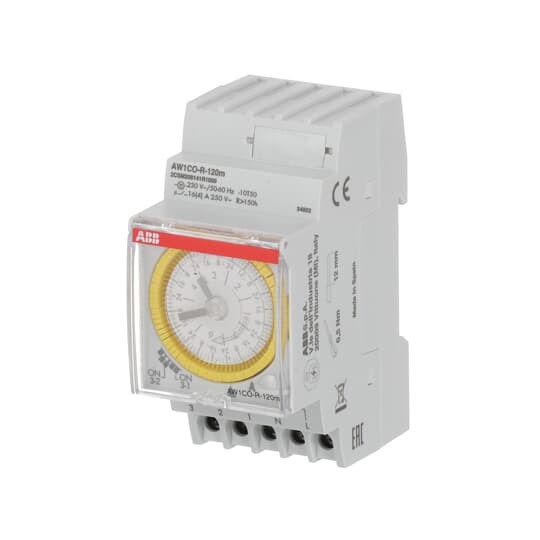

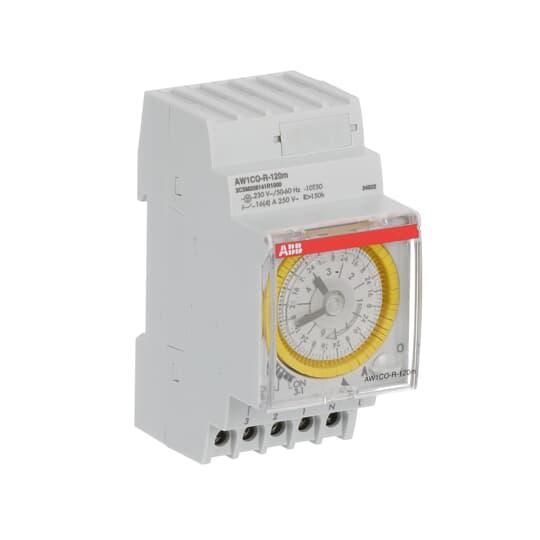

ABB ANALOG TIME SWITCH 7DAY 2.5 MODULES WITH RESERVE AW1CO-R-120M

Product Code: AW1CO-R-120M

The Analog Time Switch is a modular DIN Rail mount device with battery backup. It has a weekly functioning capability and can operate for up to 120 minutes at a minimum. With a power reserve of 150 hours, it features a 1N/O contact with 16A capacity and consumes only 0.5W of power. The supply voltage is 230VAC and it has 84 pins with a width of 2.5 modules or 17.5mm.

Technical Specifications

Brand ABB
Accuracy Operating: ± 1 sec/24h, Switching: ± 30 min
Battery Backup 150 hrs
Channels 1
Contacts 1CO
Degree of Protection IP20
Function Weekly
Minimum Switching Time (s) 7200
Mounting Type DIN Rail
No. of Modules 2.5 (width 44mm)
No. of Modules - Width 17.5 mm 2.5
No. of Switching Intervals 84 pins
Operational Temperature Range (°C) -10 to +50
Power Consumption (W) 0.5
Rated Current (A) 16
Rated Frequency (Hz) 50/60
Standards and Approvals EN 60730-2-7
Storage Temperature (°C) -20 to +70
Terminal Type Captive Screw
Universal Supply Voltage AC (V) 230
