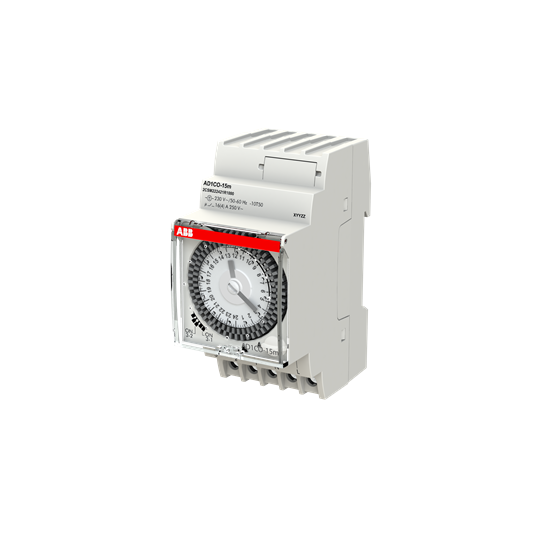

ABB ANALOG TIME SWITCH 24HR 2.5 MODULES AD1CO-15M

Product Code: AD1CO-15M

The Analog Time Switch is a modular DIN rail mount device designed for daily functioning. It does not require battery back-up. The minimum time of functioning is 15 minutes, and it features a 1N/O contact with a maximum current rating of 16A. The power consumption is 0.5W, and it operates on a supply voltage of 230VAC. The device has 96 pins and a width of 2.5 modules, measuring 17.5mm in total.

Technical Specifications

Brand ABB
Accuracy Operating: ± 1 sec/24h, Switching: ± 5 min
Battery Backup No
Contacts 1CO
Degree of Protection IP20
Function Daily
Maximum Switching Current (A) 16(4)
Maximum Switching Voltage AC (V) 250
Minimum Switching Time (s) 900
Mounting Type DIN Rail
No. of Modules - Width 17.5 mm 2.5
No. of Switching Intervals 96 pins
Operational Temperature Range (°C) -10 to +50
Power Consumption (W) 0.5
Rated Current (A) 16
Rated Frequency (Hz) 50/60
Rated Supply Voltage AC/DC (V) 230V AC
Standards and Approvals EN 60730-2-7
Storage Temperature (°C) -20 to +70
Universal Supply Voltage AC (V) 230
