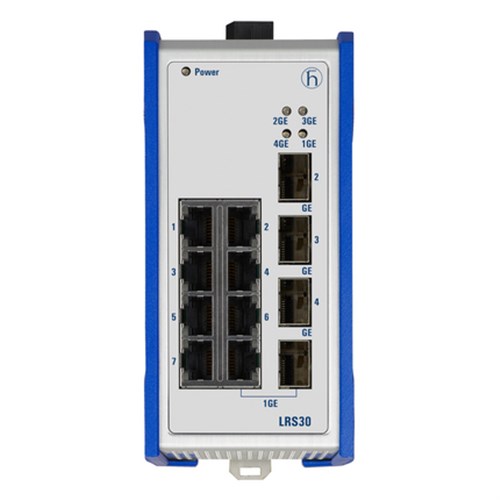

HIRSCHMANN MANAGED INDUSTRIAL ETHERNET RAIL SWITCH 7X FAST ETHERNET TX, 3X FAST ETHERNET/GE SFP, 1X FAST ETHERNET/GE COMBO, 9.6-32V DC, -40-+60°C, LITE MANAGED 942328005

Product Code: 942 328-005

Hirschmann's Lite Managed switch is designed for robust performance, supporting a wide voltage range of 9.6-32 V DC and operating temperatures from -40 to +60 degrees Celsius. It features versatile connectivity options including 7x Fast Ethernet (FE) TX ports, 3x Fast Ethernet/Gigabit Ethernet (FE/GE) SFP ports, and 1x FE/GE Combo port, catering to diverse network requirements.

Technical Specifications

Brand HIRSCHMANN
Software Switchng Static Unicast/Multicast Address Entries, VLAN (802.1Q), Independent VLAN Learning, QoS/Port Prioritization (802.1D/p), TOS/DSCP Prioritization, CoS Queue Management, Queue-Shaping/Max. Queue Bandwidth, Jumbo Frames, IGMP Snooping/Querier (v1/v2/v3), Unknown Multicast Filtering, IGMP Group Filtering per Port, Flow Control (802.3X), Egress Interface Shaping, Ingress Storm Protection
Software Redundancy MRP Client, RSTP 802.1D-2004 (IEC62439-1), ERPS (G.8032), ERPS v2 (G.8032)
Software Management LLDP (802.1AB), LLDP-MED, Password change on first login, SSHv2, HTTP, HTTPS, Responsive GUI, SNMP v1/v2/v3, Traps, Telnet, TFTP, Dual Software Image Support
Software Diagnostics Management Address Conflict Detection, LEDs, Device Status Indication, Syslog, Link Speed and Duplex Monitoring, RMON (1, 2, 3, 9), Port Mirroring 1:1, Port Mirroring N:1, System Information, SFP Management
Software Configuration Web-based Management, HiDiscovery, Command Line Interface (CLI), Full-featured MIB Support
Software Security MAC Address Limit Per Port, Restricted Management Access, Appropriate Use Banner, Multiple Privilege Levels, Local User Management
Software Time Synchronization NTP Client
Mounting Type DIN Rail
Operational Temperature Range (°C) -40 - 60
Storage Temperature Range (°C) -40 - 85
Electromagnetic Capability 10 V/m (80 MHz - 1 GHz), 3 V/m (1,4 GHz – 6GHz)
Electrostatic Discharge (kV) 4 kV Contact Discharge, 8 kV Air Discharge
Mean Time Between Failure (MTBF) 3 867 661 h
No. of Pins 6
Operating Voltage 24V DC
Operating Voltage Range 24V DC
Port Quantity and Type 7 x 10/100BASE-TX 3 x 100/1000BASE-FX SFP 1 x Combo (10/100/1000BASE-TX and 100/1000BASE-FX SFP)
Power Consumption (W) 7.2
Power Output in BTU (IT)/h 25
Surge Voltage (kV) Power Line: 2 kV (Line/Earth), 1 kV (Line/Line), 1 kV Data Line
Terminal Type 1 x Plug-In Terminal Block
Cable Length (m) 0 - 100
Dimensions (mm) 68W x 135H x 118D
Transition Type 2 kV Power Line, 2 kV Data Line
Weight (g) 680
Degree of Protection IP30
Standards CE, FCC, EN61131
Approvals CE, FCC, EN61131
