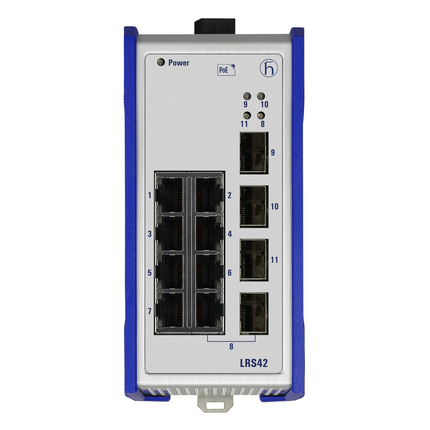

HIRSCHMANN MANAGED INDUSTRIAL ETHERNET RAIL SWITCH 7X FAST ETHERNET/GE TX, 3X FAST ETHERNET/GE SFP, 1X FAST ETHERNET/GE COMBO, 46-57V DC LITE MANAGED, POE/POE+ 942328004

Product Code: 942 328-004

Hirschmann's Lite Managed switch is designed for versatility and durability, supporting a wide range of power (46-57 V DC) and operating temperatures (-40 to +60°C). It features Power over Ethernet (PoE/PoE+) capabilities across its ports, which include 7x FE/GE TX, 3x FE/GE SFP, and 1x FE/GE Combo, catering to diverse network requirements.

Technical Specifications

Electromagnetic Capability 10 V/m (80 MHz - 1 GHz), 3 V/m (1,4 GHz – 6GHz)
Electrostatic Discharge (kV) 4 kV Contact Discharge, 8 kV Air Discharge
Mean Time Between Failure (MTBF) 3 177 412 h
Operating Voltage 48V DC (PoE) / 54V DC (PoE+)
Operating Voltage Range 48V DC (PoE) / 54V DC (PoE+)
Port Quantity and Type 7 x 10/100/1000BASE-TX 3 x 100/1000BASE-FX SFP 1 x Combo (10/100/1000BASE-TX and 100/1000BASE-FX SFP) PoE/PoE+
Power Output in BTU (IT)/h 56
Software Configuration Web-based Management, HiDiscovery, Command Line Interface (CLI), Full-featured MIB Support
Software Diagnostics Management Address Conflict Detection, LEDs, Device Status Indication, Syslog, Link Speed and Duplex Monitoring, RMON (1, 2, 3, 9), Port Mirroring 1:1, Port Mirroring N:1, System Information, SFP Management
Software Management LLDP (802.1AB), LLDP-MED, Password change on first login, SSHv2, HTTP, HTTPS, Responsive GUI, SNMP v1/v2/v3, Traps, Telnet, TFTP, Dual Software Image Support
Software Redundancy MRP Client, RSTP 802.1D-2004 (IEC62439-1), ERPS (G.8032), ERPS v2 (G.8032)
Software Security MAC Address Limit Per Port, Restricted Management Access, Appropriate Use Banner, Multiple Privilege Levels, Local User Management
Software Switchng Static Unicast/Multicast Address Entries, VLAN (802.1Q), Independent VLAN Learning, QoS/Port Prioritization (802.1D/p), TOS/DSCP Prioritization, CoS Queue Management, Queue-Shaping/Max. Queue Bandwidth, Jumbo Frames, IGMP Snooping/Querier (v1/v2/v3), Unknown Multicast Filtering, IGMP Group Filtering per Port, Flow Control (802.3X), Egress Interface Shaping, Ingress Storm Protection
Software Time Synchronization NTP Client
Transition Type 2 kV Power Line, 2 kV Data Line
Brand HIRSCHMANN
Approvals CE, FCC, EN61131
Cable Length (m) 0 - 100
Degree of Protection IP30
Dimensions (mm) 68W x 135H x 118D
Mounting Type DIN Rail
No. of Pins 6
Operational Temperature Range (°C) -40 - 60
Power Consumption (W) 196.3
Standards CE,  FCC, EN61131
Storage Temperature Range (°C) -40 - 85
Surge Voltage (kV) Power Line: 2 kV (Line/Earth), 1 kV (Line/Line), 1 kV Data Line
Terminal Type 1 x Plug-In Terminal Block
Weight (g) 720
