Brand	ABB
Efficiency	IE3
Frame Size	280
Motor Designation	General Performance - Cast Iron Motors
Motor Poles	2
Mounting Method	Foot/flange-mounted, term. box top, IM B35, IM 2001
Rated Power (kW)	90
Colour	Blue
Connection Type	DELTA - 415V in D & 690V in Y
Degree of Protection	IP66
Dimensions (mm)	1320 X 760 X 1008
Weight (kg)	727

Motors

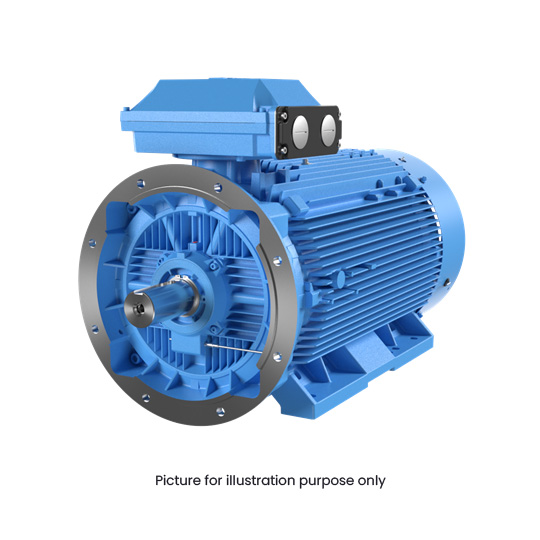

ABB IE3 CAST IRON MOTOR 2P 90kW 400VD FOOT/BIG FLANGE MOUNT B35 IP66 3GBA281270-HDF
