Brand	ABB
Efficiency	IE3
Frame Size	132
Motor Designation	General Performance - Cast Iron Motors
Motor Poles	2
Mounting Method	Foot-mounted, term. box top, IM B3, IM 1001
Rated Power (kW)	7.5
Colour	Blue
Connection Type	DELTA - 415V in D & 690V in Y
Degree of Protection	IP66
Dimensions (mm)	595 X 340 X 395
Weight (kg)	74.39

Motors

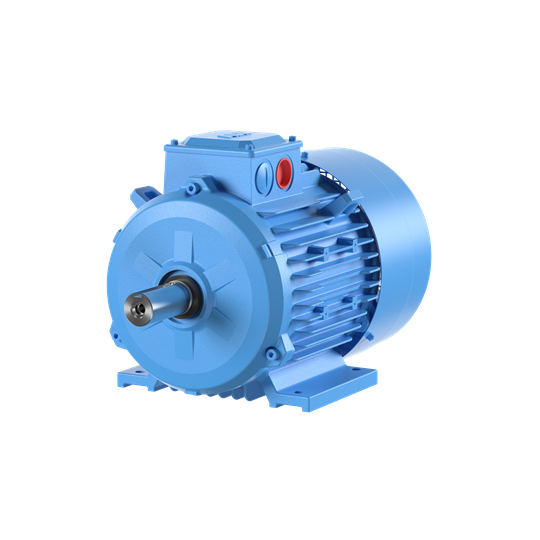

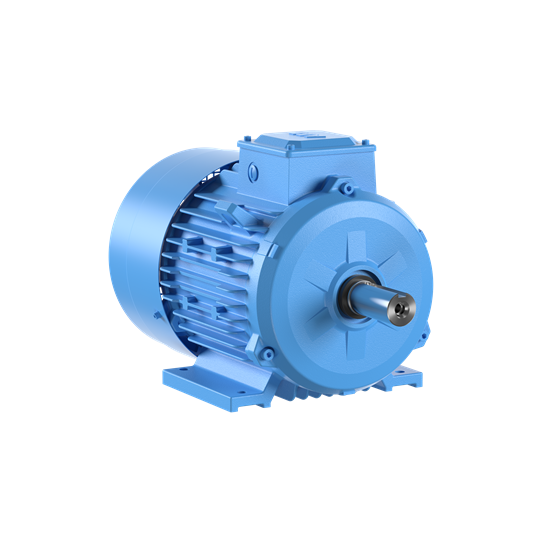

ABB IE3 CAST IRON MOTOR 2P 7.5kW 400VD FOOT MOUNT B3 IP66 3GBA131220-ADD
