Brand	ABB
Efficiency	IE3
Frame Size	100
Motor Designation	General Performance - Cast Iron Motors
Motor Poles	4
Mounting Method	Foot-mounted, term. box top, IM B3, IM 1001
Output Power (kW)	2.2
Rated Power (kW)	2.2
Voltage (V)	415Y/230D
Colour	Blue
Connection Type	STAR - 240V in D & 415V in Y
Degree of Protection	IP66
Dimensions (mm)	455 X 290 X 335
Phases	3
Rated Voltage (V)	415Y/230D
Weight (kg)	35.53

Motors

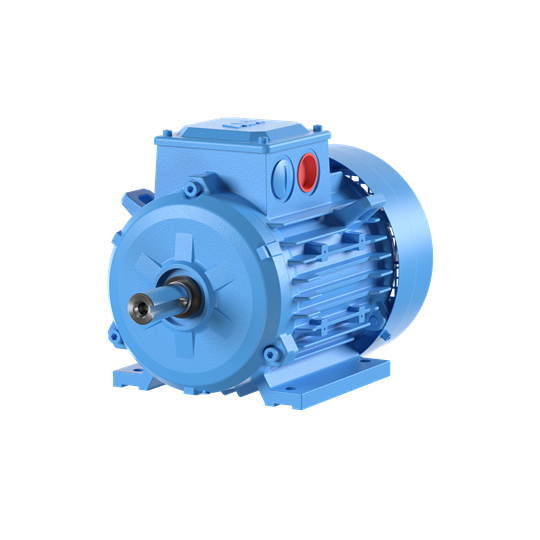

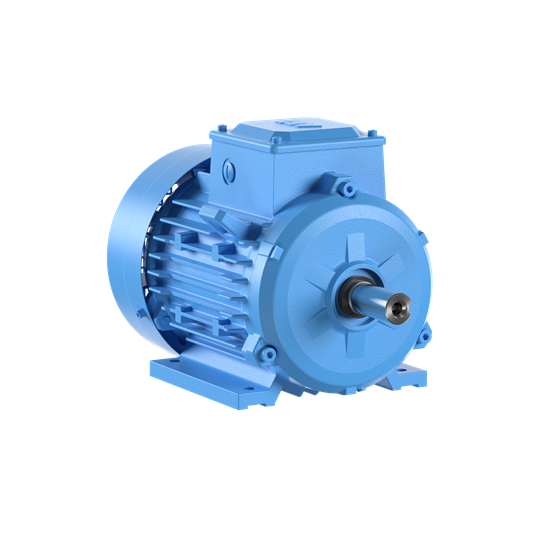

ABB IE3 CAST IRON MOTOR 4P 2.2kW 400VY FOOT MOUNT B3 IP66 3GBA102520-ASD
