Brand	ABB
Efficiency	IE3
Frame Size	100
Motor Designation	General Performance - Cast Iron Motors
Motor Poles	2
Mounting Method	Foot-mounted, term. box top, IM B3, IM 1001
Rated Power (kW)	3
Colour	Blue
Connection Type	STAR - 240V in D & 415V in Y
Degree of Protection	IP66
Dimensions (mm)	495 X 290 X 335
Weight (kg)	43.64

Motors

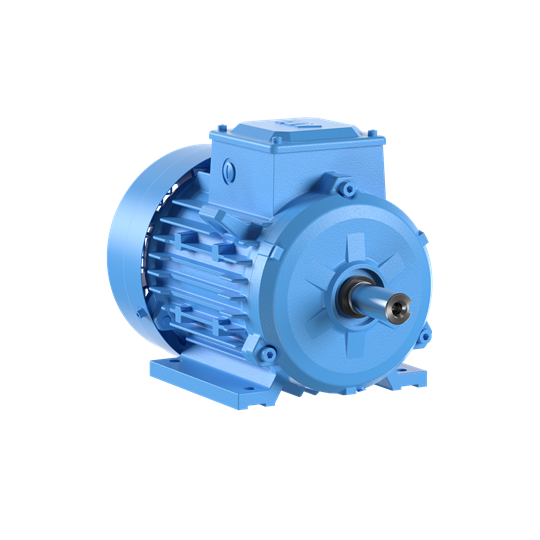

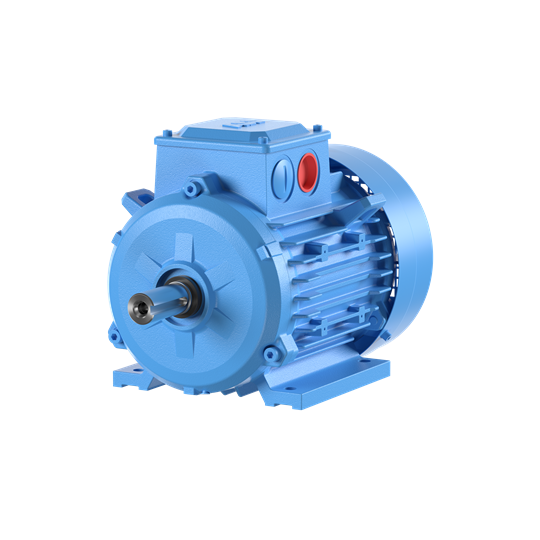

ABB IE3 CAST IRON MOTOR 2P 3kW 400VY FOOT MOUNT B3 IP66 3GBA101810-ASD
