Brand	ABB
Efficiency	IE3
Frame Size	90
Motor Designation	General Performance - Cast Iron Motors
Motor Poles	4
Mounting Method	Foot/flange-mounted, term. box top, IM B35, IM 2001
Output Power (kW)	1.1
Rated Power (kW)	1.1
Voltage (V)	415Y/230D
Colour	Blue
Connection Type	STAR - 240V in D & 415V in Y
Degree of Protection	IP66
Dimensions (mm)	400 X 240 X 290
Phases	3
Rated Voltage (V)	415Y/230D
Weight (kg)	27.16

Motors

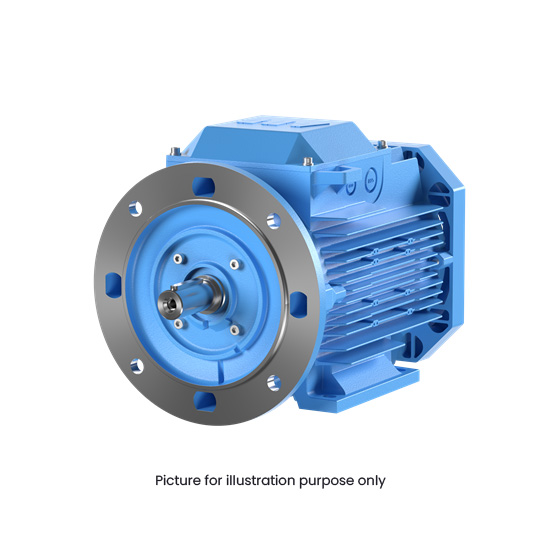

ABB IE3 CAST IRON MOTOR 4P 1.1kW 400VY FOOT/BIG FLANGE MOUNT B35 IP66 3GBA092120-HSD
