Brand	ABB
Efficiency	IE3
Frame Size	80
Motor Designation	General Performance - Cast Iron Motors
Motor Poles	4
Mounting Method	Foot/flange-mounted, term. box top, IM B35, IM 2001
Output Power (kW)	0.75
Rated Power (kW)	0.75
Voltage (V)	415Y/230D
Colour	Blue
Connection Type	STAR - 240V in D & 415V in Y
Degree of Protection	IP66
Dimensions (mm)	400 X 223 X 280
Phases	3
Rated Voltage (V)	415Y/230D
Weight (kg)	24.6

Motors

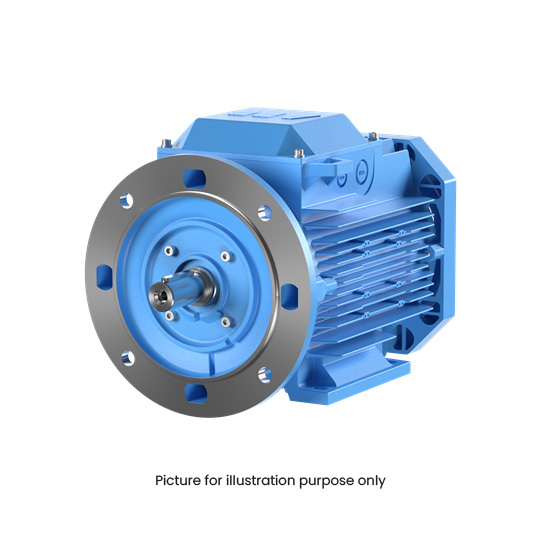

ABB IE3 CAST IRON MOTOR 4P 0.75kW 400VY FOOT/BIG FLANGE MOUNT B35 IP66 3GBA082410-HSD
