Brand	ABB
Efficiency	IE3
Frame Size	80
Motor Designation	General Performance - Cast Iron Motors
Motor Poles	4
Mounting Method	Foot-mounted, term. box top, IM B3, IM 1001
Output Power (kW)	0.55
Rated Power (kW)	0.55
Voltage (V)	415Y/230D
Colour	Blue
Connection Type	STAR - 240V in D & 415V in Y
Degree of Protection	IP66
Dimensions (mm)	370 X 225 X 280
Phases	3
Rated Voltage (V)	415Y/230D
Weight (kg)	18.04

Motors

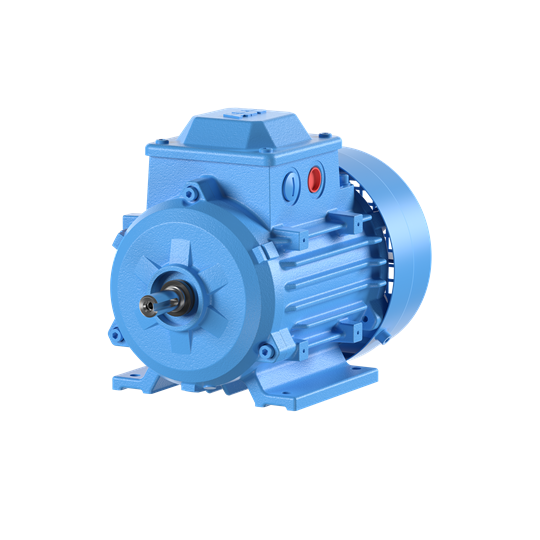

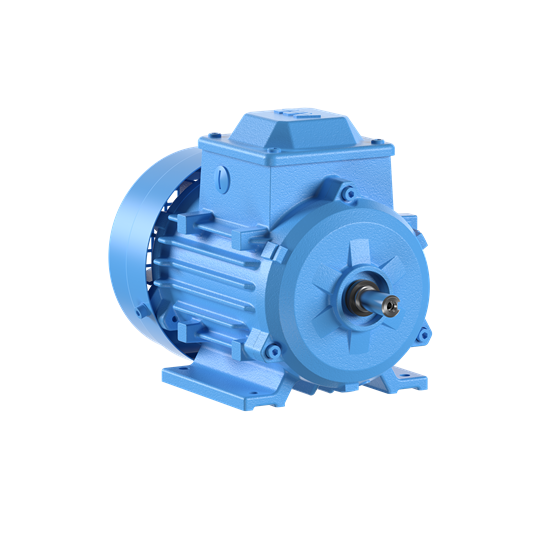

ABB IE3 CAST IRON MOTOR 4P 0.55kW 400VY FOOT MOUNT B3 IP66 3GBA082330-ASD
