Brand	ABB
Efficiency	IE3
Frame Size	200
Motor Designation	Process Performance - Aluminum Motor
Motor Poles	2
Mounting Method	Foot/flange-mounted, term. box top, IM B35, IM 2001
Output Power (kW)	37
Rated Power (kW)	37
Voltage (V)	690Y/415D
Colour	Blue
Connection Type	DELTA - 415V in D & 690V in Y
Degree of Protection	IP55
Dimensions (mm)	970 X 500 X 715
Phases	3
Rated Voltage (V)	690Y/415D
Weight (kg)	287

Motors

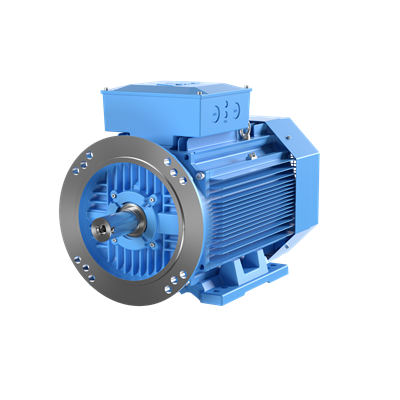

ABB IE3 ALUMINUM MOTOR 2P 37kW 400VD FOOT/BIG FLANGE MOUNT B35 IP55 3GAA201420-HDK
