Brand	ABB
Efficiency	IE3
Frame Size	200
Motor Designation	Process Performance - Aluminum Motor
Motor Poles	2
Mounting Method	Foot-mounted, term. box top, IM B3, IM 1001
Output Power (kW)	30
Rated Power (kW)	30
Voltage (V)	690Y/415D
Colour	Blue
Connection Type	DELTA - 415V in D & 690V in Y
Degree of Protection	IP55
Dimensions (mm)	970 X 500 X 715
Phases	3
Rated Voltage (V)	690Y/415D
Weight (kg)	246

Motors

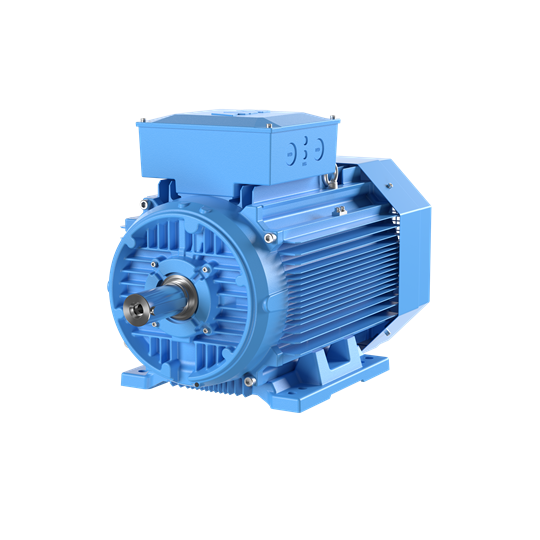

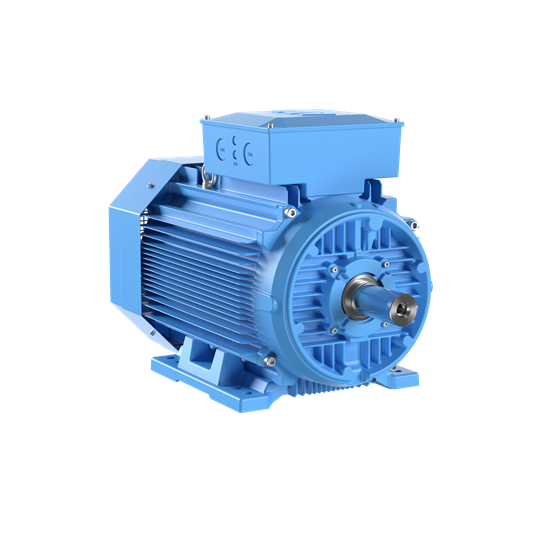

ABB IE3 ALUMINUM MOTOR 2P 30kW 400VD FOOT MOUNT B3 IP55 3GAA201410-ADK
