Brand	ABB
Efficiency	IE3
Frame Size	180
Motor Designation	Process Performance - Aluminum Motor
Motor Poles	4
Mounting Method	Foot/flange-mounted, term. box top, IM B35, IM 2001
Output Power (kW)	18.5
Rated Power (kW)	18.5
Voltage (V)	690Y/415D
Colour	Blue
Connection Type	DELTA - 415V in D & 690V in Y
Degree of Protection	IP55
Dimensions (mm)	870 X 530 X 625
Phases	3
Rated Voltage (V)	690Y/415D
Weight (kg)	213

Motors

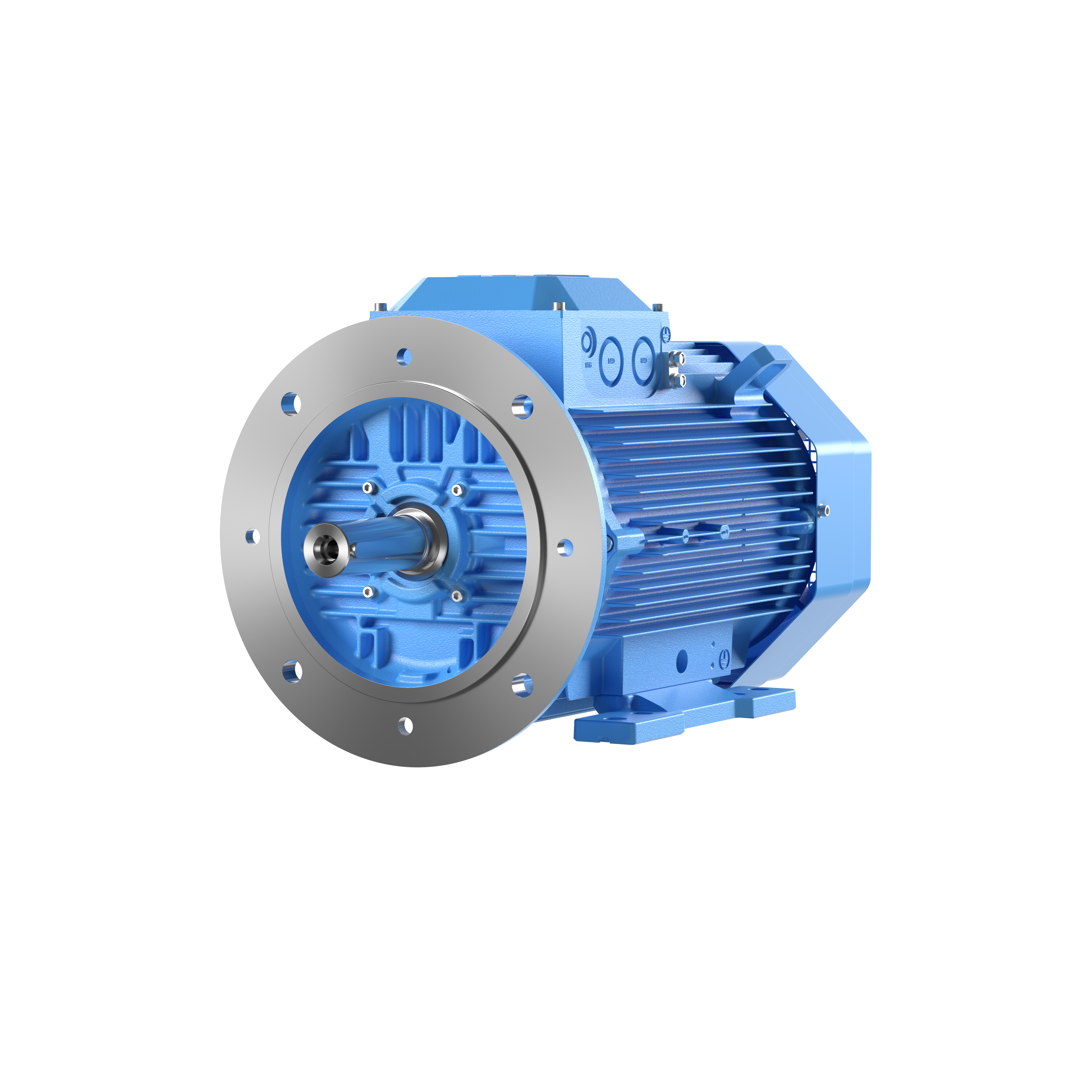

ABB IE3 ALUMINUM MOTOR 4P 18.5kW 400VD FOOT/BIG FLANGE MOUNT B35 IP55 3GAA182410-HDK
