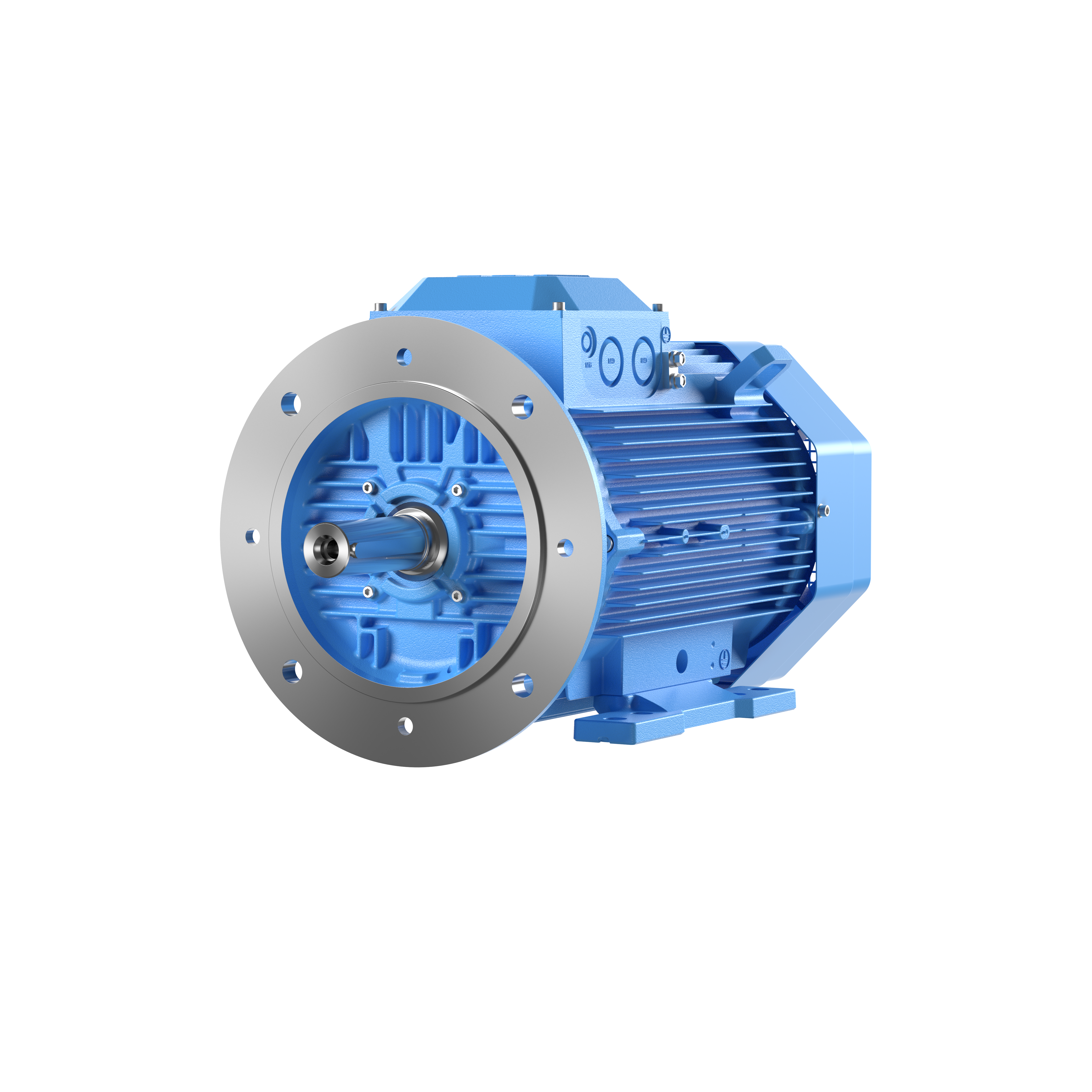

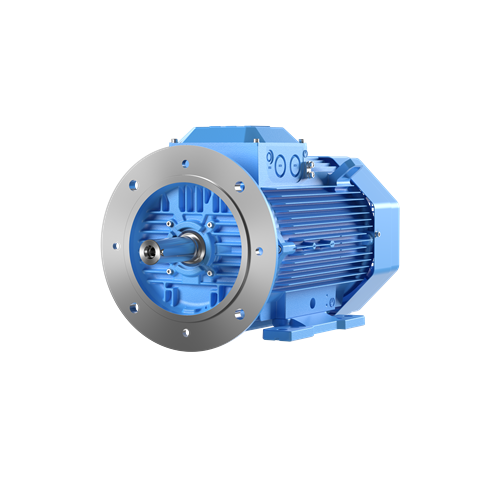

Specifications

Colour	Blue
Brand	ABB
Product Type	Process Performance Motors
Mounting Method	Foot/flange-mounted, term. box top, IM B35, IM 2001
Connection Type	DELTA - 415V in D & 690V in Y
Efficiency	IE3
Frame Size	160
Motor Designation	Process Performance - Aluminum Motor
Rated Power (kW)	15
Rated Voltage (V)	690Y/415D
Dimensions (mm)	810 X 460 X 623
Weight (kg)	155
Degree of Protection	IP55
Voltage (V)	690Y/415D
Output Power (kW)	15
Motor Poles	2
Phases	3
