Brand	ABB
Efficiency	IE3
Frame Size	132
Motor Designation	Process Performance - Aluminum Motor
Motor Poles	4
Mounting Method	Foot-mounted, term. box top, IM B3, IM 1001
Output Power (kW)	3
Rated Power (kW)	7.5
Voltage (V)	690Y/415D
Colour	Blue
Connection Type	DELTA - 415V in D & 690V in Y
Degree of Protection	IP55
Dimensions (mm)	555 X 340 X 395
Phases	3
Rated Voltage (V)	690Y/415D
Weight (kg)	70.26

Motors

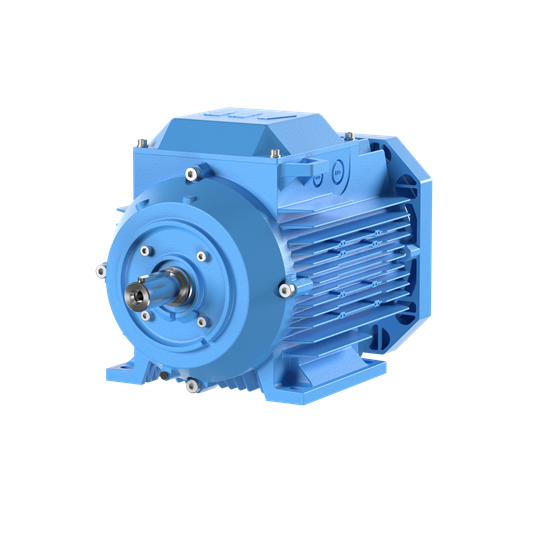

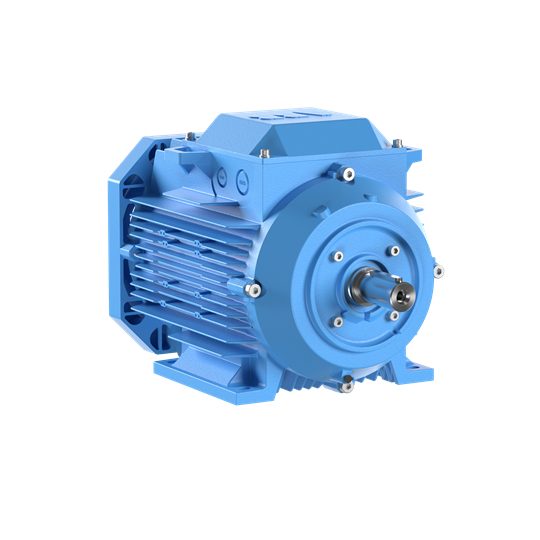

ABB IE3 ALUMINUM MOTOR 4P 7.5kW 400VD FOOT MOUNT B3 IP55 M3AA132MC 3GAA132330-ADK
